Racer X Films: 2018 Husqvarna FC270cc Build

October 23, 2018 10:30am | by: Simon Cudby
  • Home
  • Multimedia
  • Video
  • Racer X Films
  • Racer X Films: 2018 Husqvarna FC270cc Build

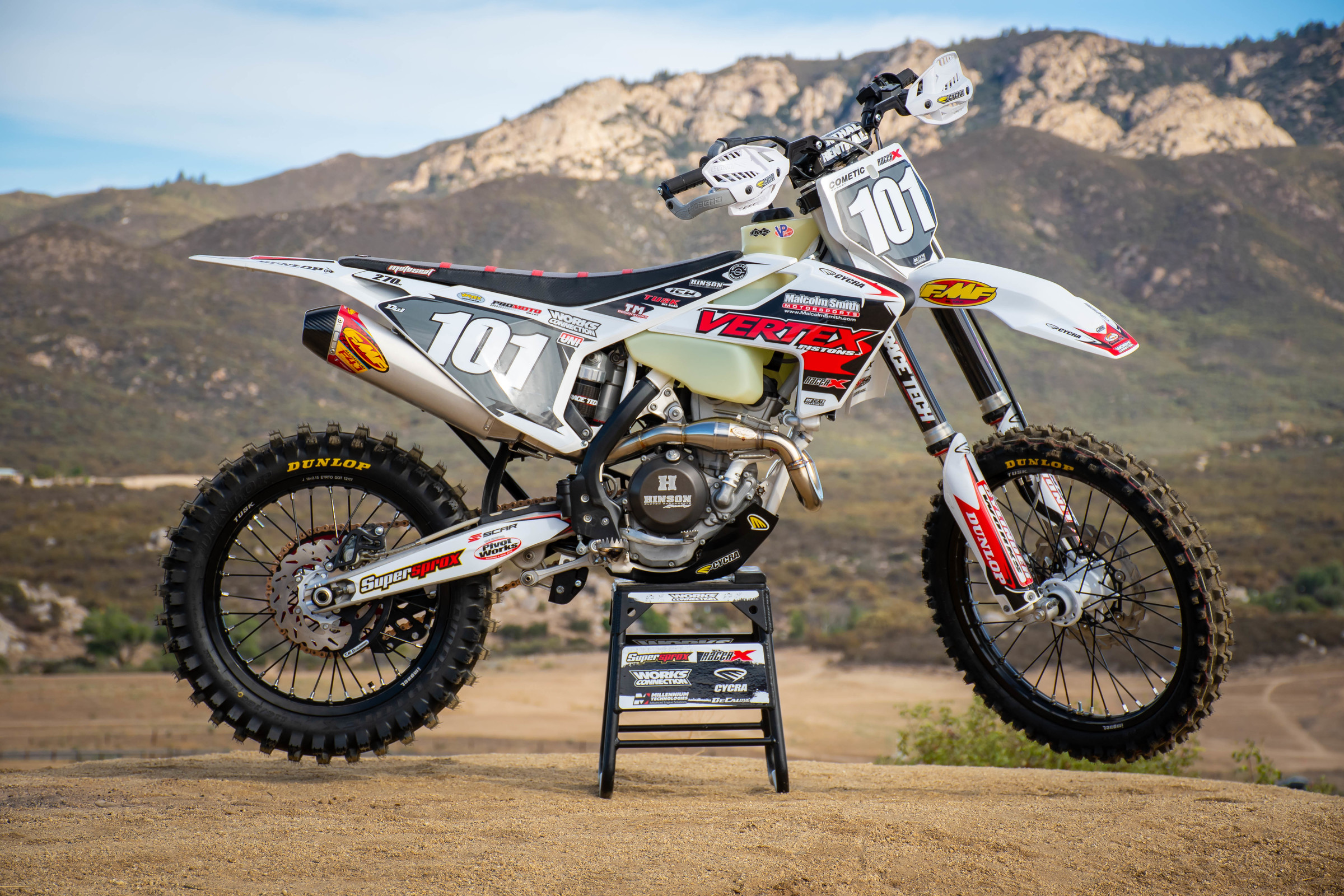

The goal of this project was to turn a great motocross bike into a trail weapon. Since MX bikes can be hard to sell at times, we figured we’d make a trail bike we can use for a couple of years. We had a big power increase with the Cylinder Works big bore kit, which includes the cylinder, a Vertex Piston, and all necessary gaskets. We didn’t do any additional porting, we didn’t add cams, and we left the valve train stock to keep the reliability up. We removed the backfire screen and added a two-stroke air filter cage for better air flow. The Vortex ignition was mapped by Race Tech and set to run on VP U4.4 and the FMF stainless exhaust system improved performance while remaining durable and still reducing weight from stock. We added a few modifications that were off-road specific, including wrap-around hand guards, a larger IMS tank, IMS coolant catch can in the frame to help with overheating, TM Designworks disk guard, and Pro Moto Billett kickstand. We also added an 18” Tusk rear wheel with Dunlop AT81 EX gummy tires for ultimate grip. ICW braced our radiators and we added Works Connection KTM/Husky axle blocks that allow you to run a less rigid setup like the Japanese bikes and factory race bikes. Supersprox O-ring chain and Stealth rear sprocket were the final touch to ensure reliability and durability on the trail.

Race Tech

www.racetech.com

Vortex ECU and Dyno tuning

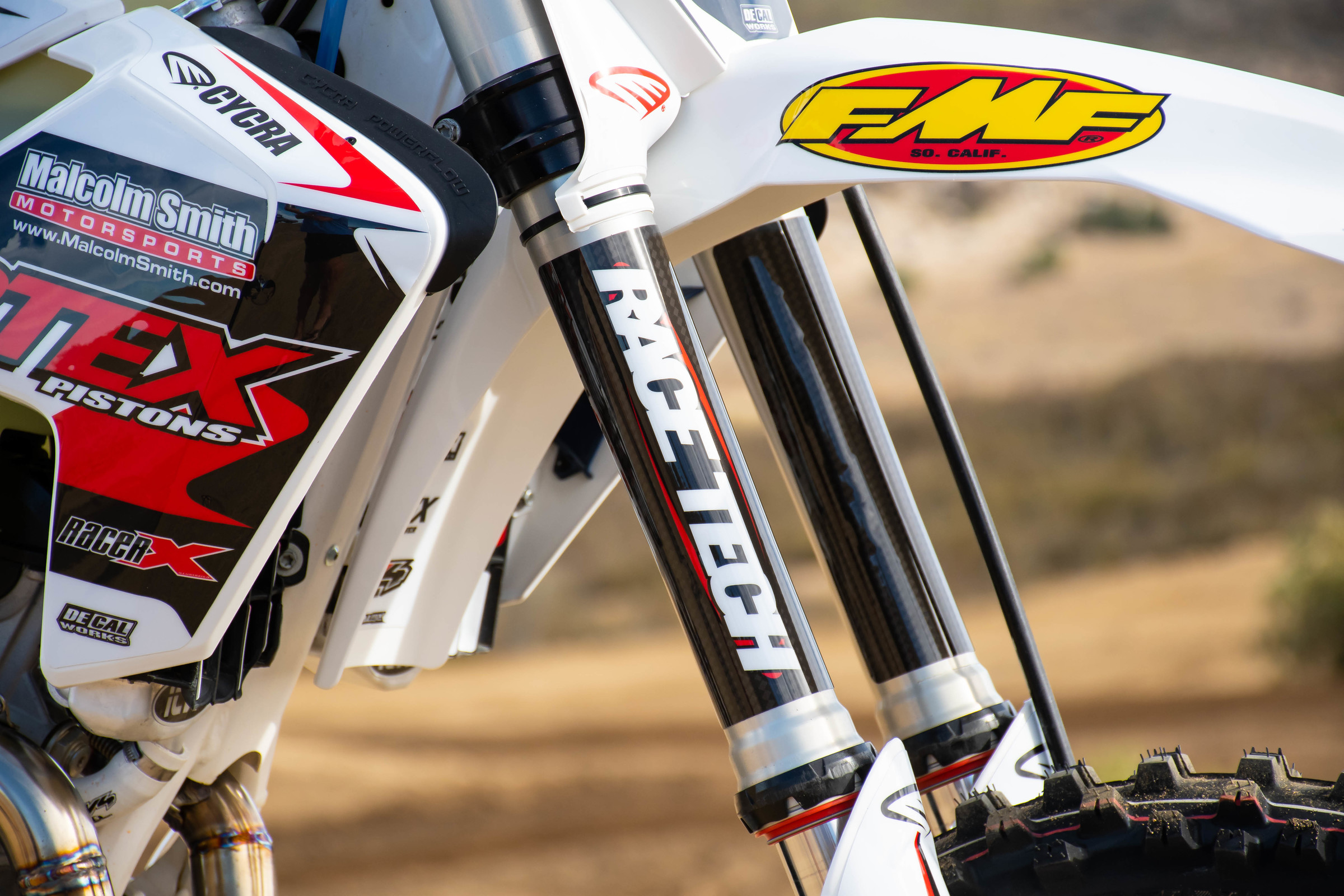

Re-valve and set up of suspension

Cylinder Works

www.cylinder-works.com

3mm Big bore Cylinder Kit 269cc

Includes Forged Vertex Piston and Top-End gasket kit

FMF Racing

www.fmfracing.com

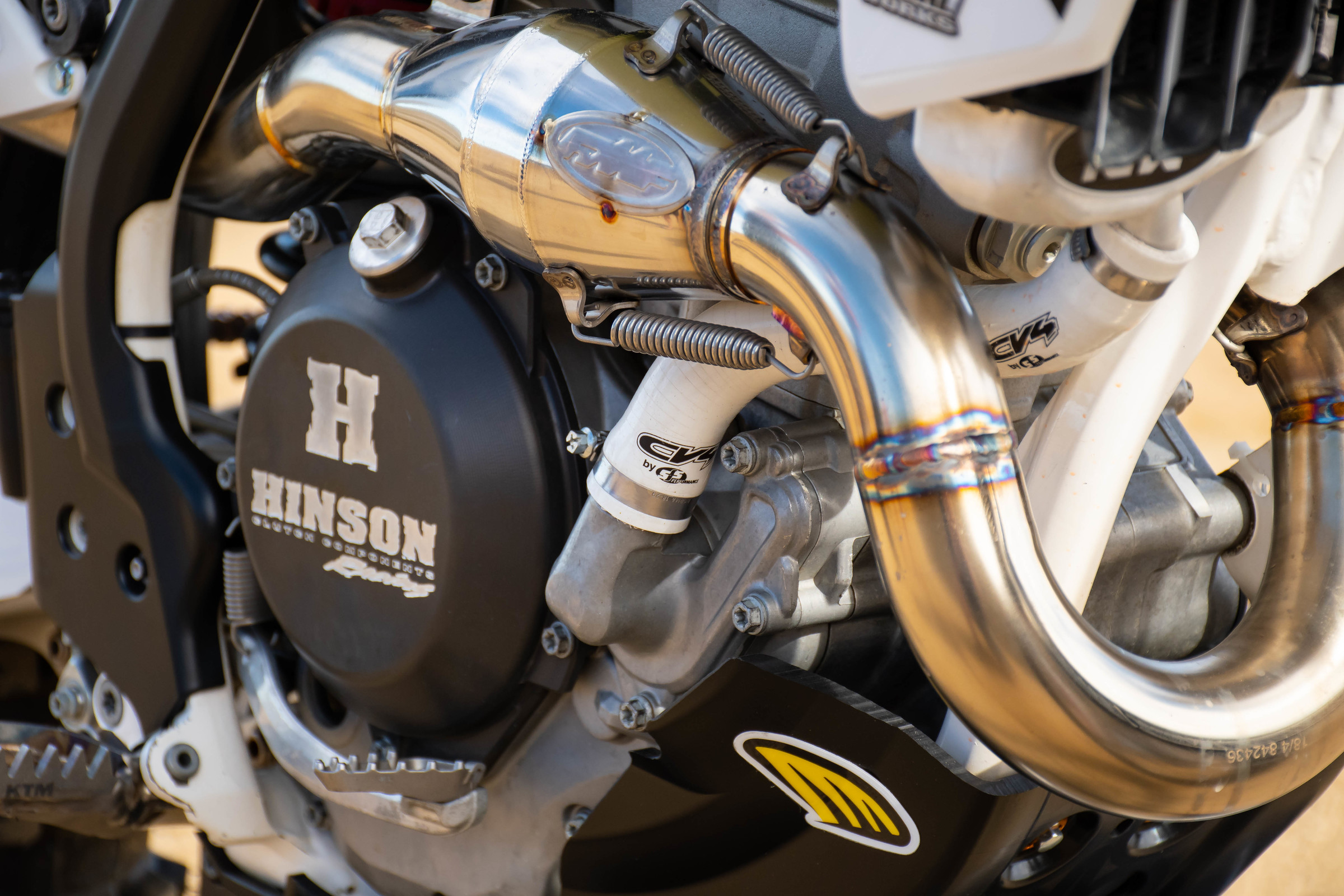

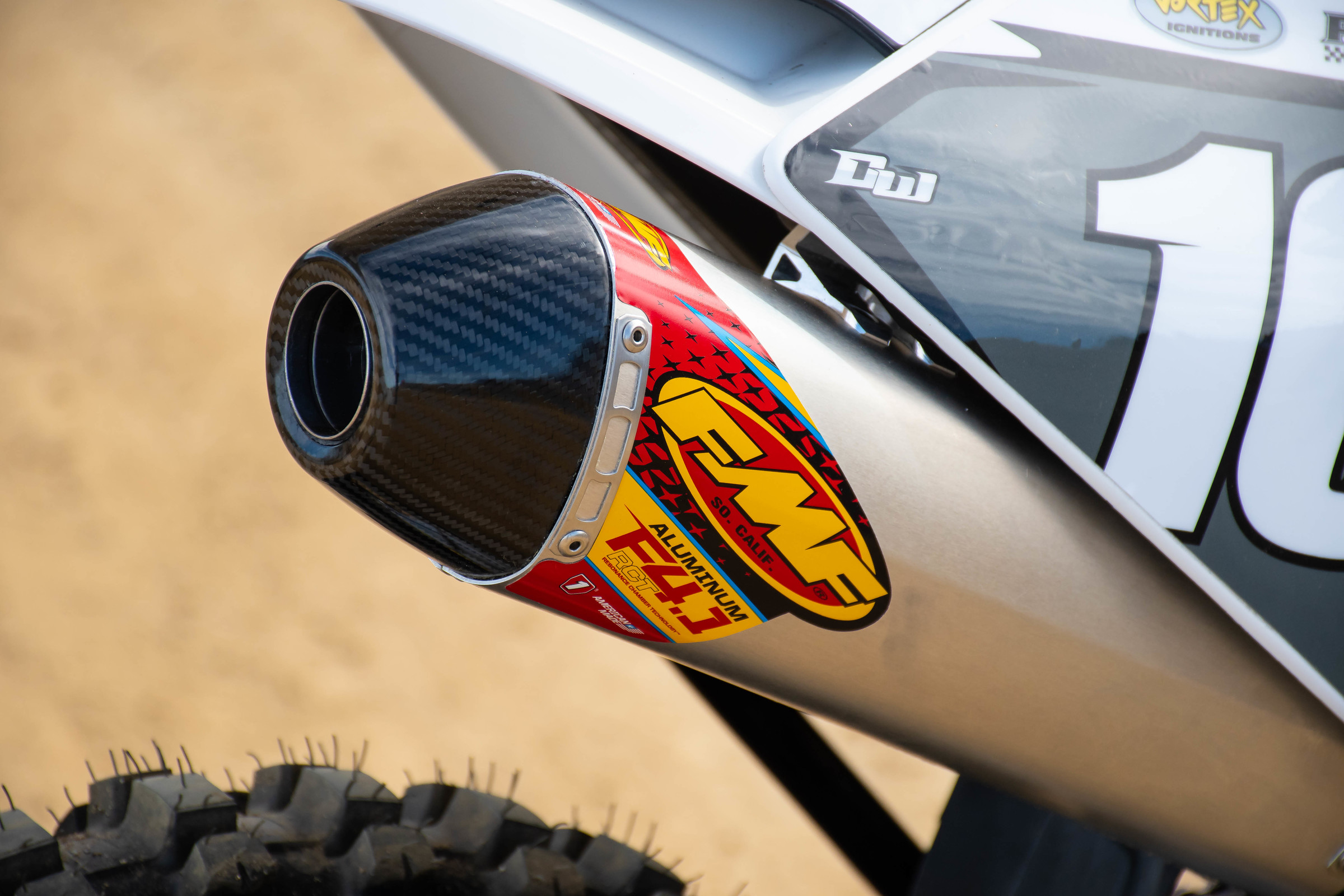

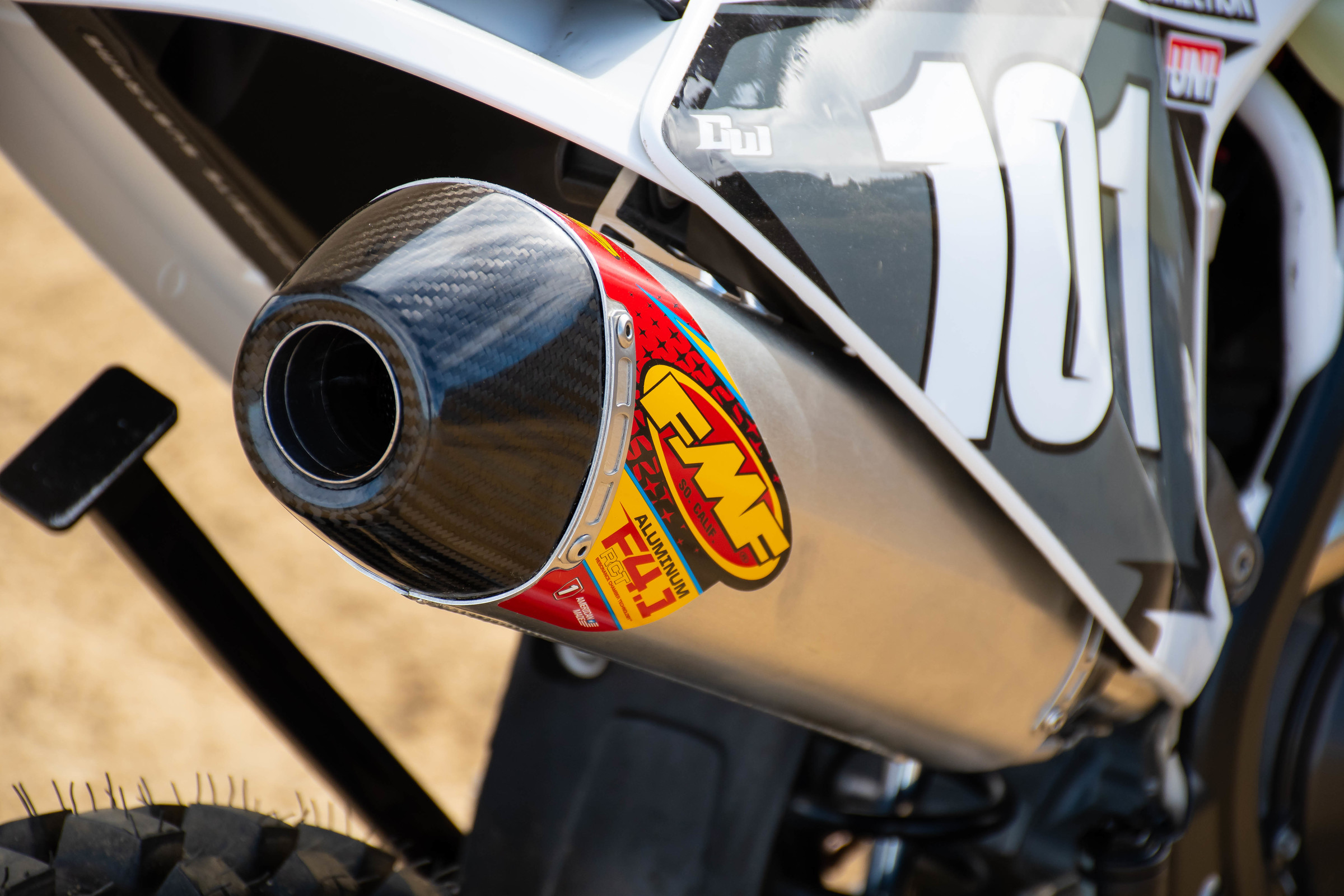

Aluminum 4.1 RCT  Muffler with SS Megabomb header

Vortex Ignitions

www.vortexcdi.com

X10 Programable ECU

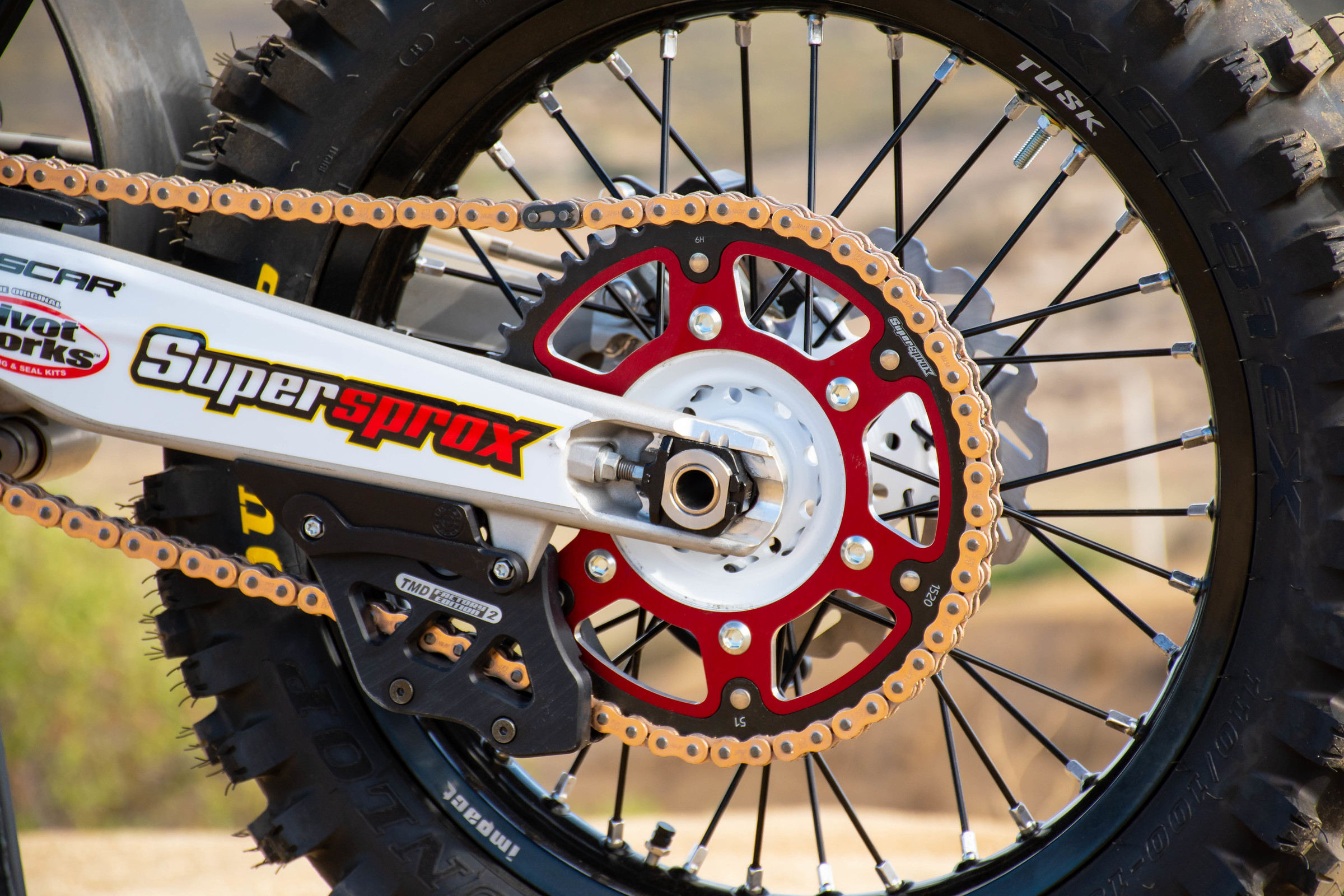

Supersprox

www.supersproxusa.com

Front 14T

Rear 51 Stealth Sprocket

Gold Enduro Race Chain -G520-EXT-120

IMS

www.imsproducts.com

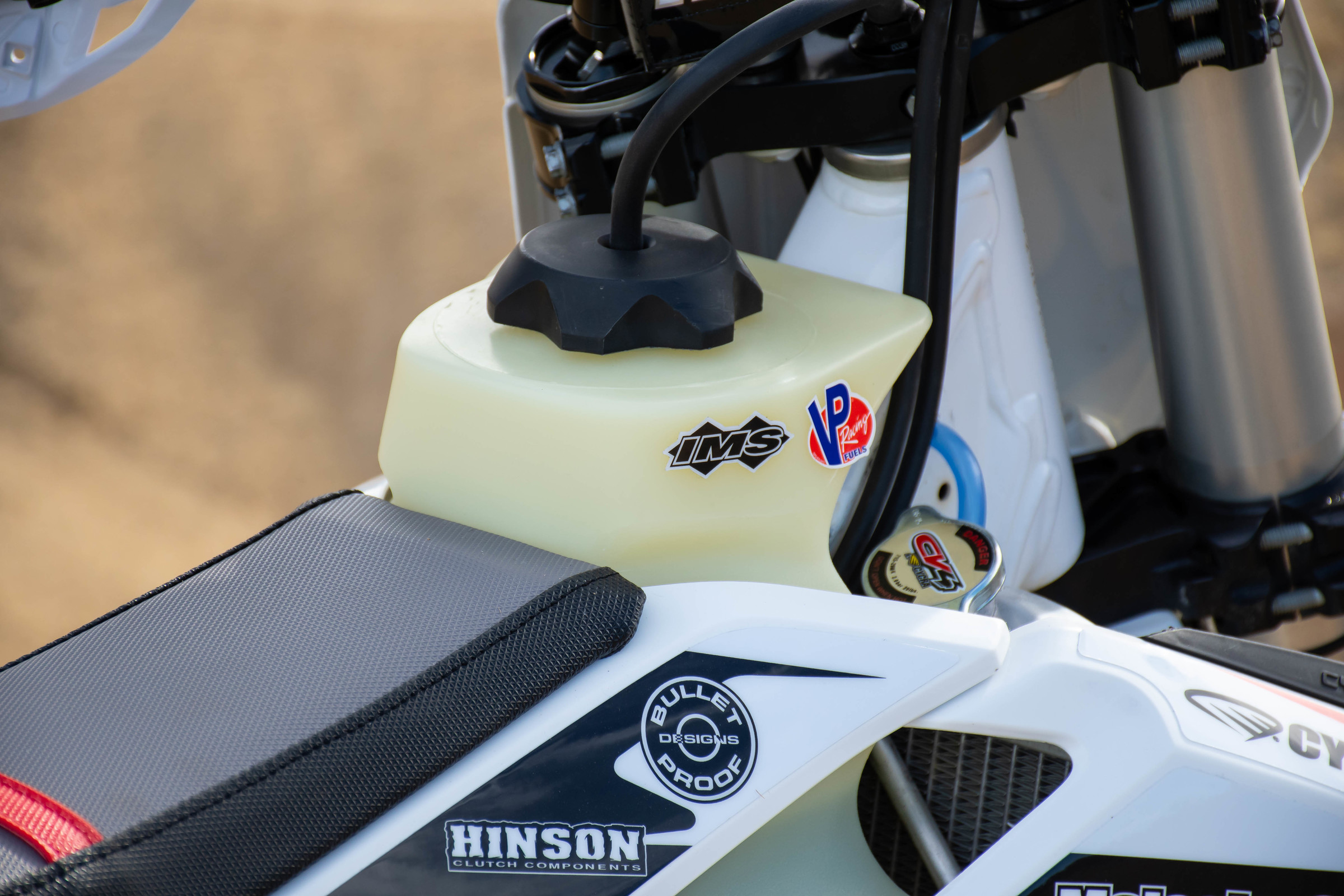

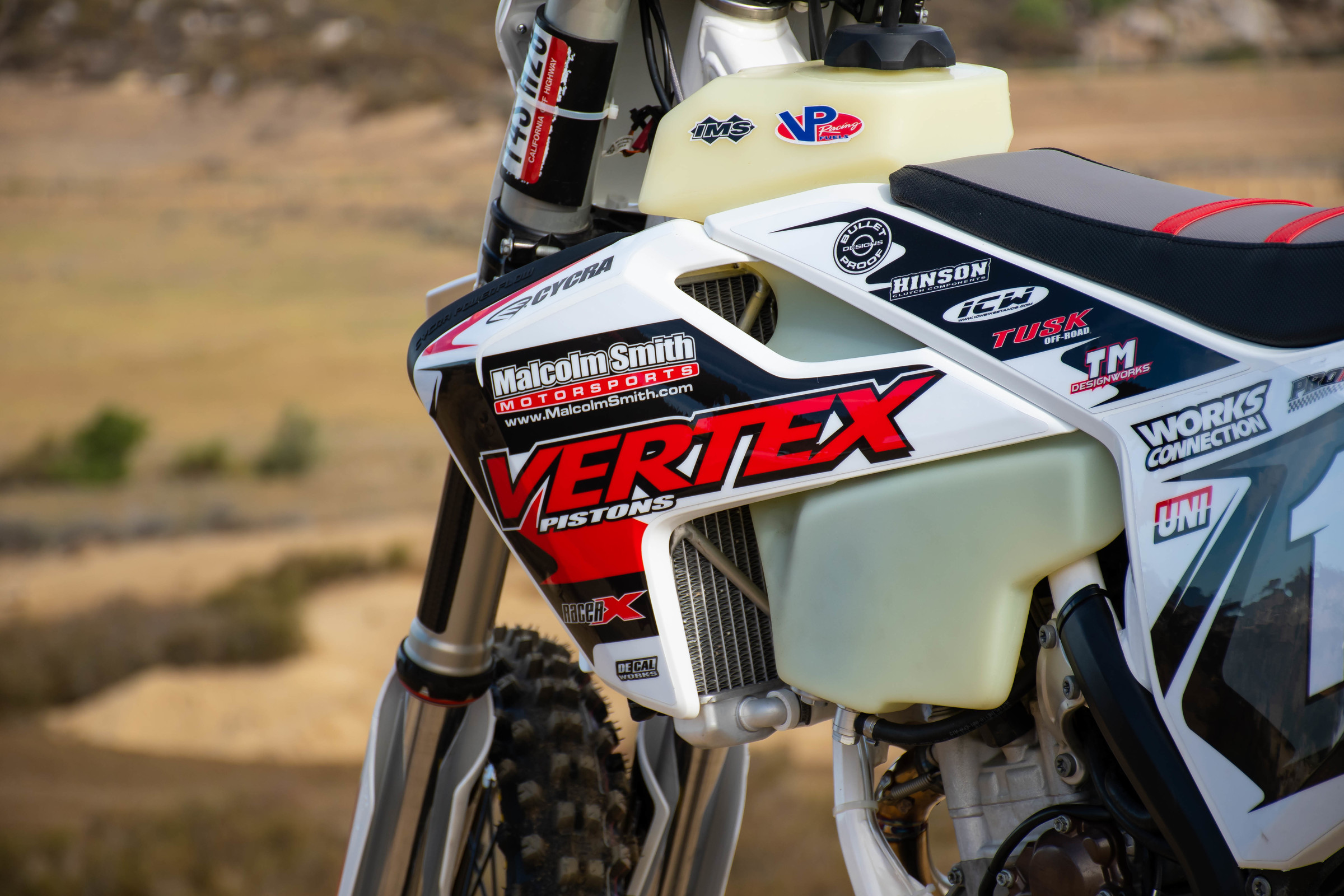

Oversized Fuel tank

Coolant Catch Can

DeCal Works

www.decalmx.com

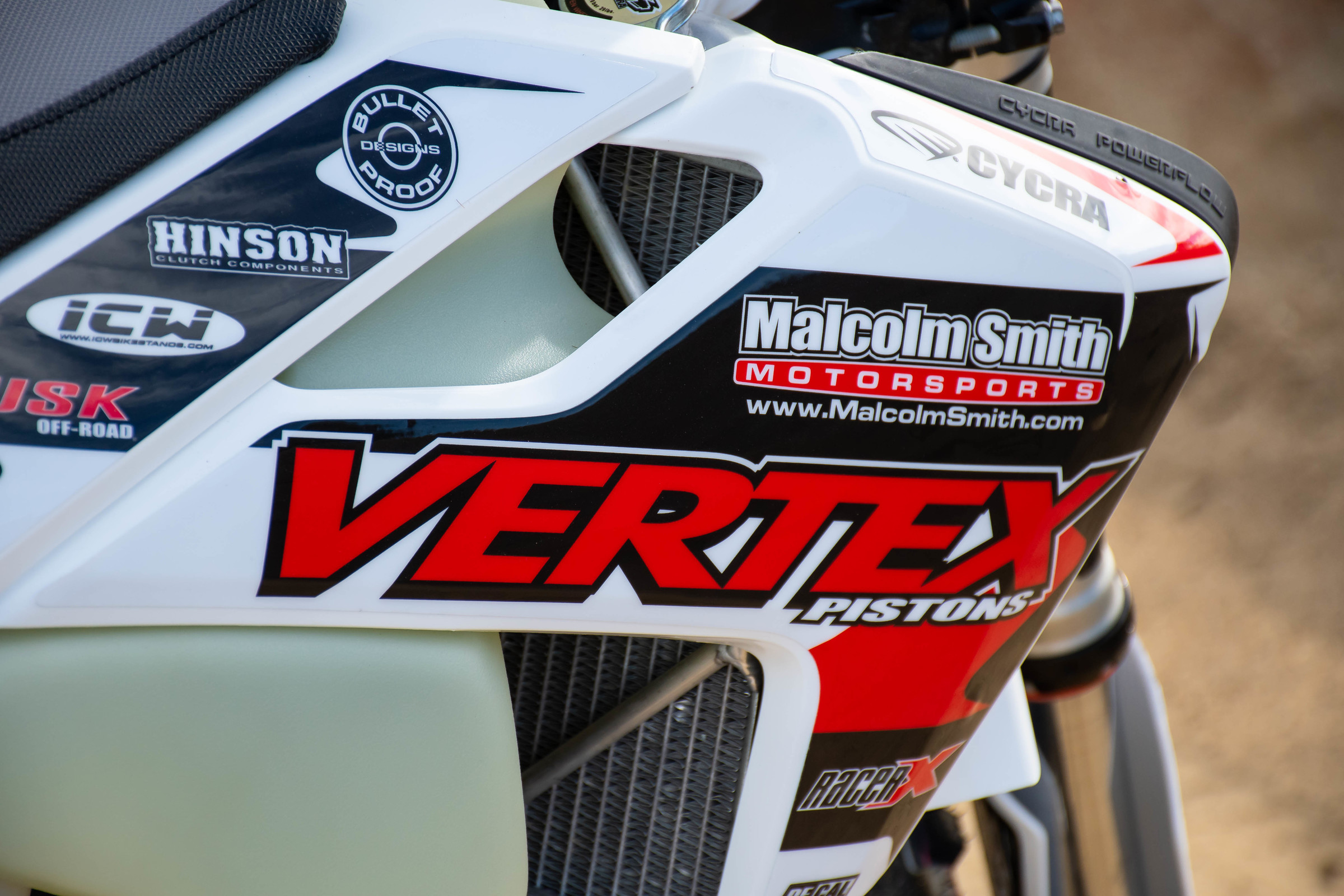

Semi-Custom Graphics kit

Pre printed number plates backgrounds

Works Connection

www.worksconnection.com

Factory II  Stand

Front & Rears brake cap s

Rotating bar clamp

Steering stem nut

Oil Filter cover

Rear Chain adjuster blocks

Dunlop Tire

www.dunlopmotorcycle.com

AT81 front  90/100-21

AT81 EX (Gummy) rear   110/100-18

Uni Filter

www.unifilter.com

Air Filter

Scar

www.scar-racing.com
Titanium Footpegs

TM Designworks

www.tmdesignworks.com

Rear Chain Guide

Rear Disc and Master Guard

Tusk

www.tuskoffroad.com

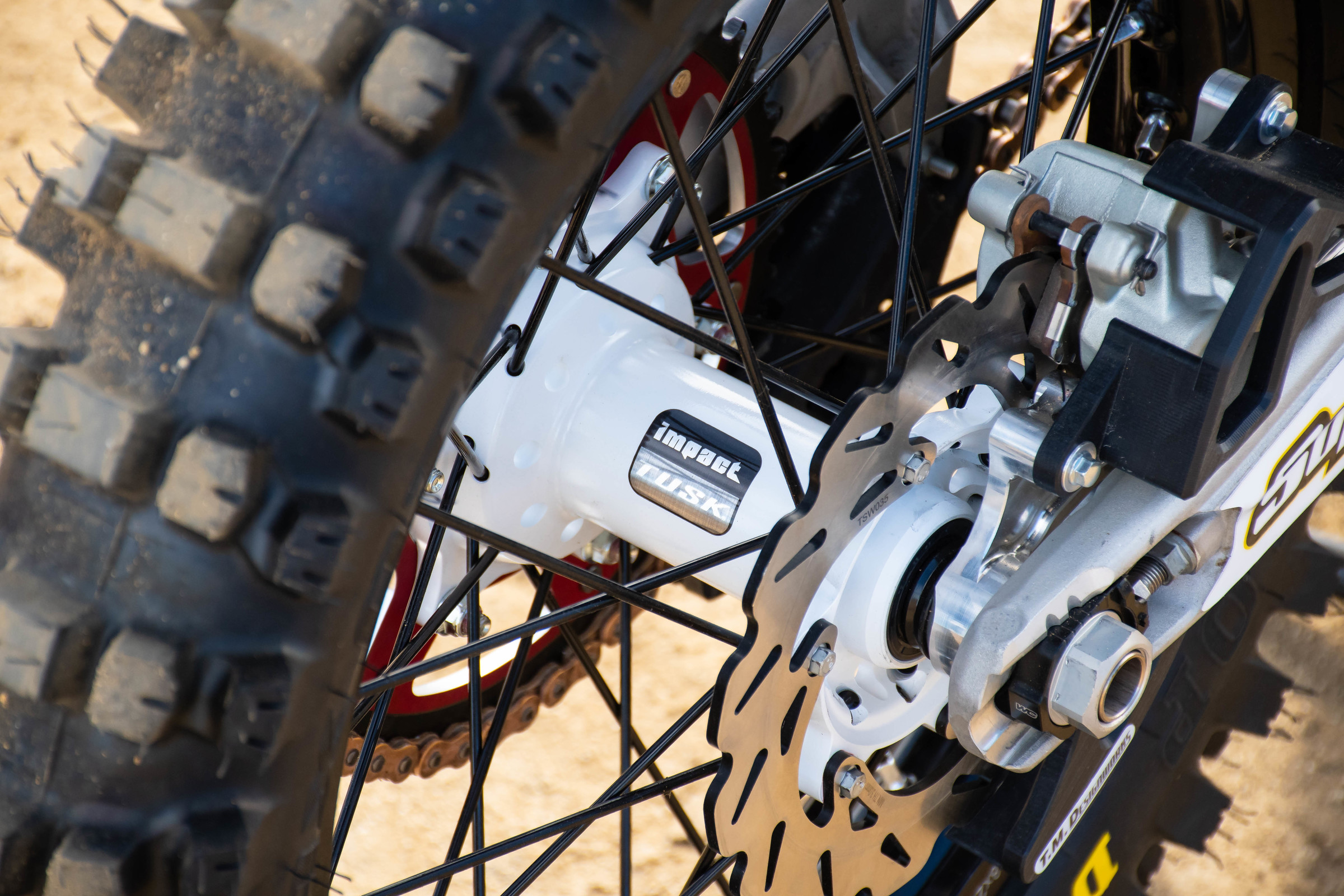

Oversized front and Std rear rotor

Complete Wheel set (18” rear wheel)

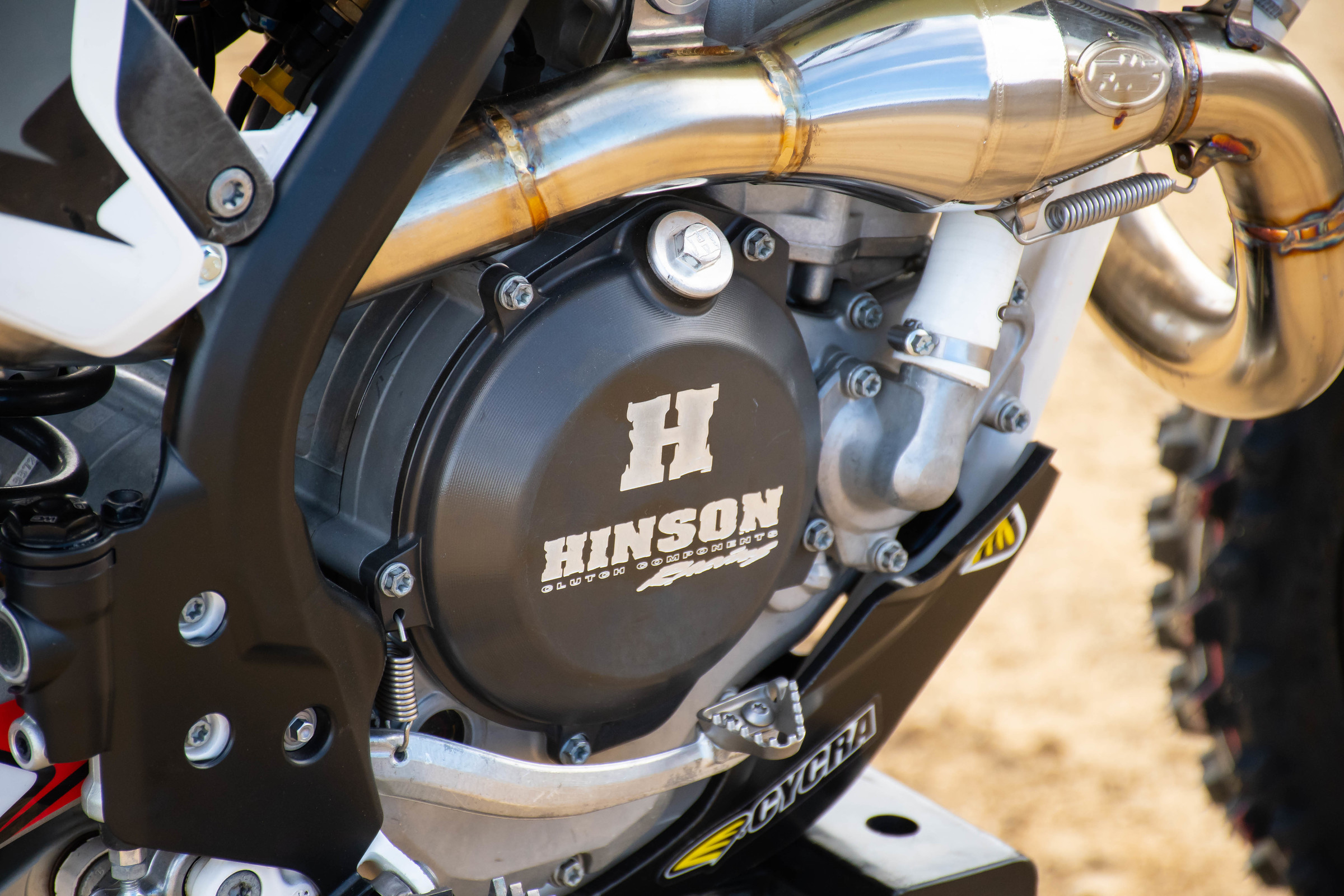

Hinson Clutch Components

www.hinsonracing.com

Full Clutch set up and outer cover

ICW

www.icwbikestands.com

Radiator straightening and bracing

Pro Moto Billet

www.promotobillet.com

Fastway by Pro Moto Billet Kickstand

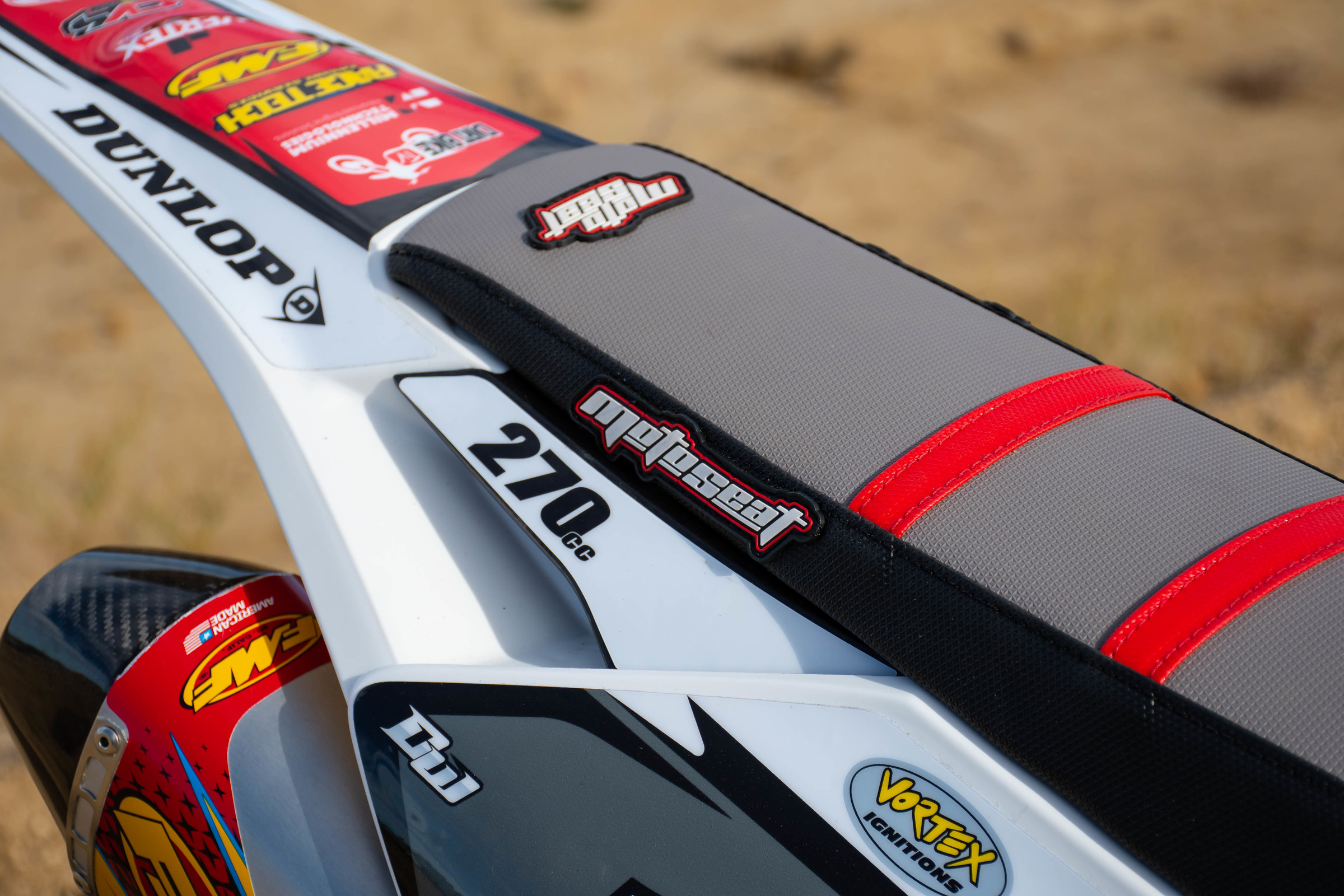

Moto Seat

www.motoseat.com

Custom Cool seat cover

Motion Pro

www.motionpro.com

Titan Throttle Tube

Grip Glue

Renthal

www.renthal.com

603 Fat Bars

Tacky grips

Cycra Racing

www.cycraracing.com

Full Plastic kit

CV4 High Pressure Radiator Cap

CV4 White Radiator hoses

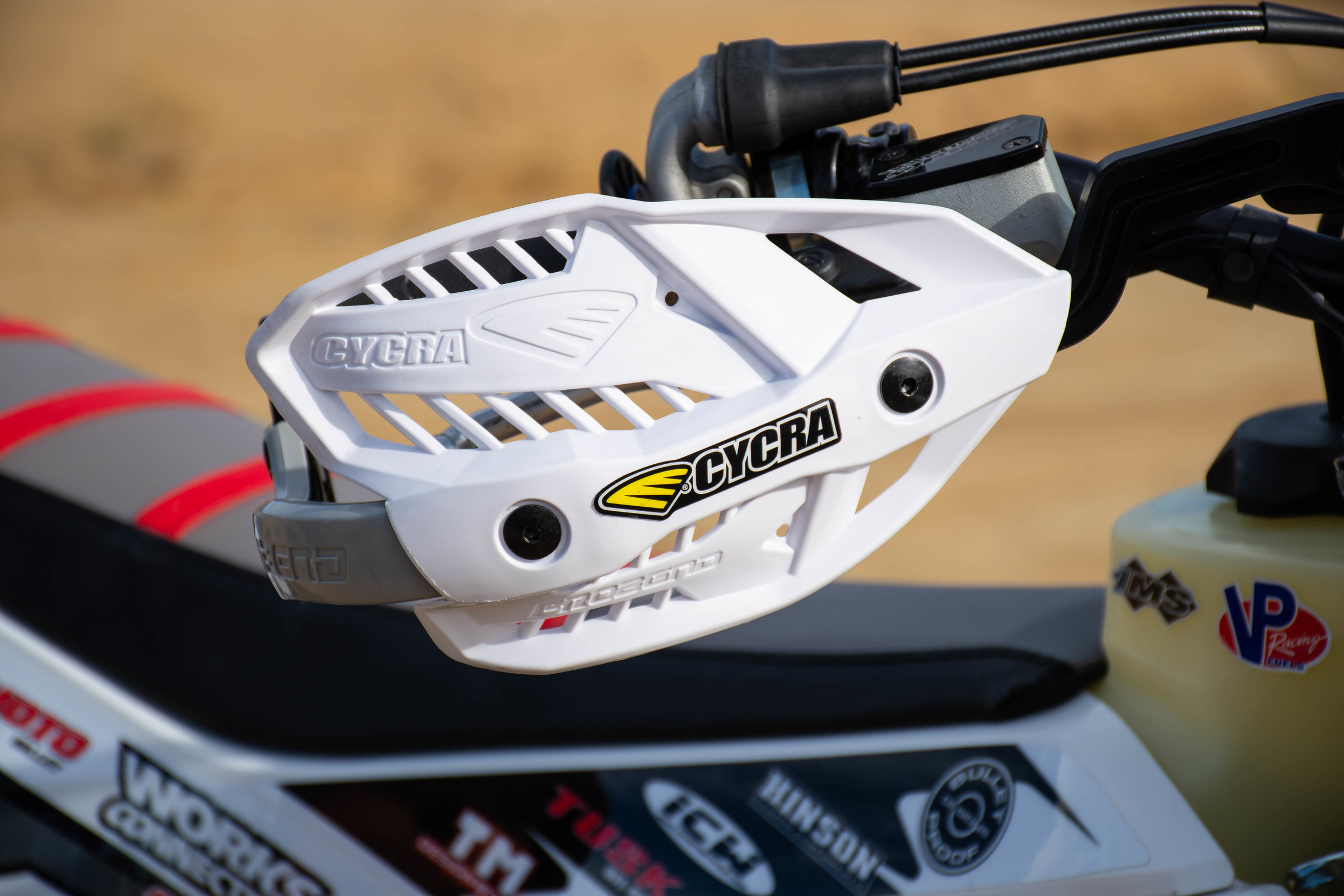

Ultra Pro Bend Hand Guards

Skid Plate

VP Fuel

www.vpracingfuels.com

U 4.4 added for the test only for more power— Runs good on 91 pump fuel

Bullet Proof designs

www.bulletproofdesigns.com

Rear Swing arm guard

Linkage guard

Malcolm Smith Motorsports

www.malcolmsmith.com

OEM parts

Good deal on bike
