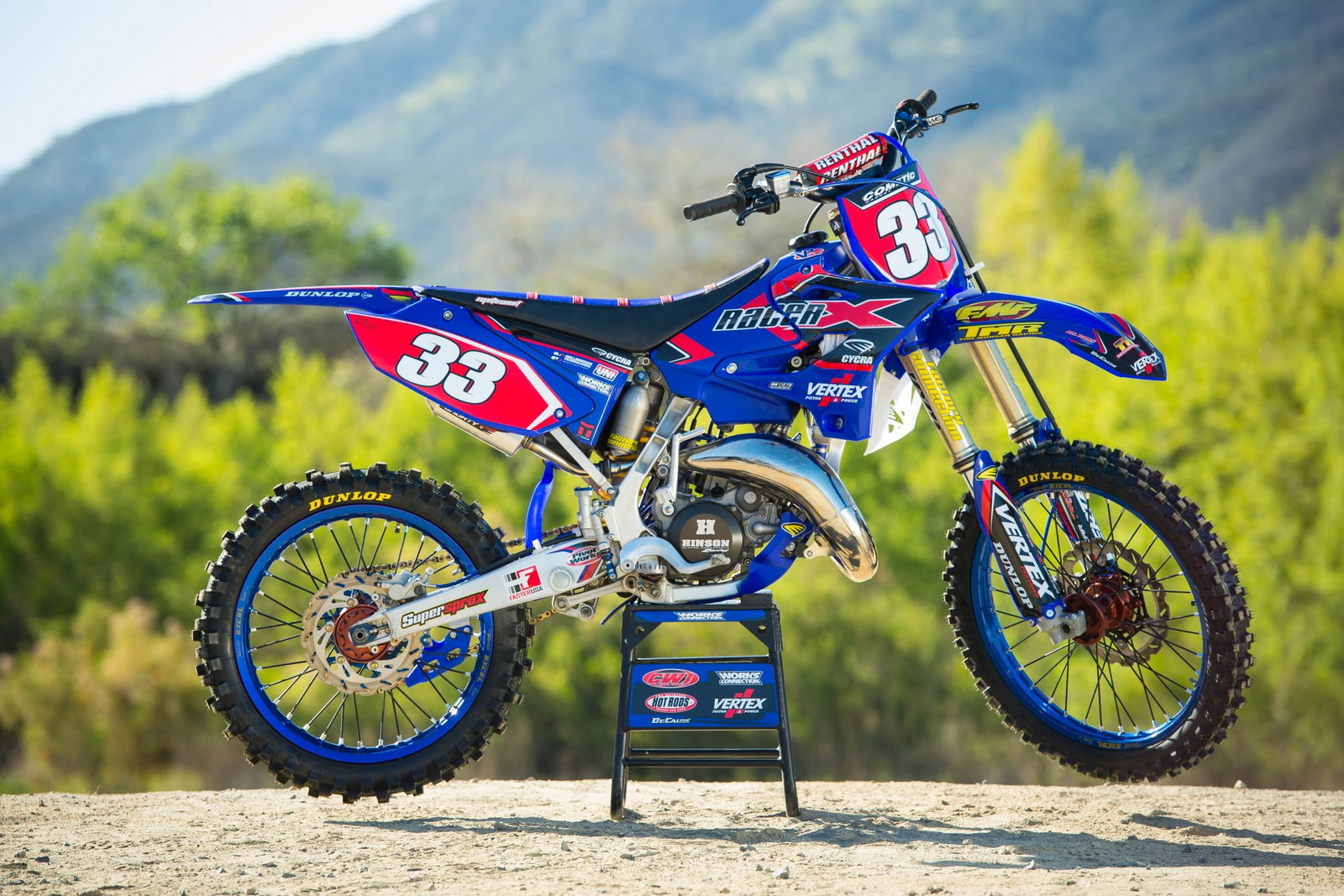

Yamaha YZ125s are great bikes but have been basically the same since 2005. For this build we thought we would see how good we could get this 2011 YZ125 that was saved from a premature death. The bike had been rode hard and was pretty beat. The cylinder was in bad need of full repair from Millennium and the bottom end was no better.

Jay Clark thinks it’s good to build some of these Craigslist finds as cheaply as possible (the bike was only $800), however, for this build Jay thought why not go all out and build a full-on race ripper motor with the help for two-stroke guru Tom Morgan. Tom worked for factory teams and top racers for years and has long been the choice of top two-stroke engines. So we shipped off our engine to Tom and we tackled the suspension and chassis part of the build.

The YZ134cc still sounds like a 125cc and produces more mid-top HP while maintaining a normal type power band. This power works well for use on longer, faster tracks. The YZ134cc is a standard bore stroker; TMR strokes the crank and leaves the bore stock size. The cylinder port timing and head dome shape and volume are modified to achieve the desired performance with the stroked crankshaft. The piston is modified to add a boost port of the correct open duration to further improve performance. The crankcases are also modified for clearance to the stroked crankshaft and other changes to produce the correct power output. The motor also has a balanced crankshaft from CWI to help on vibration and of course to change the stroke they have to modify the pin placement.

After throwing way too much money at this thing we have the ultimate fun machine that is great for a young rider or an older guy who wants to relive his past glory days.

TMR

www.tommorganracing1.com
Cylinder porting mod
Head mod
Piston boost port mod
Case boring, machining, and porting
Engine assemble

Hot Rods

www.hotrodsproducts.com
Complete bottom end kit
Includes complete crankshaft, main bearing seal kit and complete engine gasket kit.

Vertex Pistons

www.vertexpistons.com
Pro replica piston kit  (ring, pin and clips). Piston window mod by TMR

Crank Works INC

www.crankworks.com
Crank balancing and added stroke; added heavy metal to smooth our power and reduce vibration.

Millennium Tech

www.mt-llc.com
Strip, re-pair damage and re-plate to stock size on the 134cc

Cometic Gasket

www.cometic.com
Engine gaskets
Reed cage spacer

Supersprox

www.supersproxusa.com

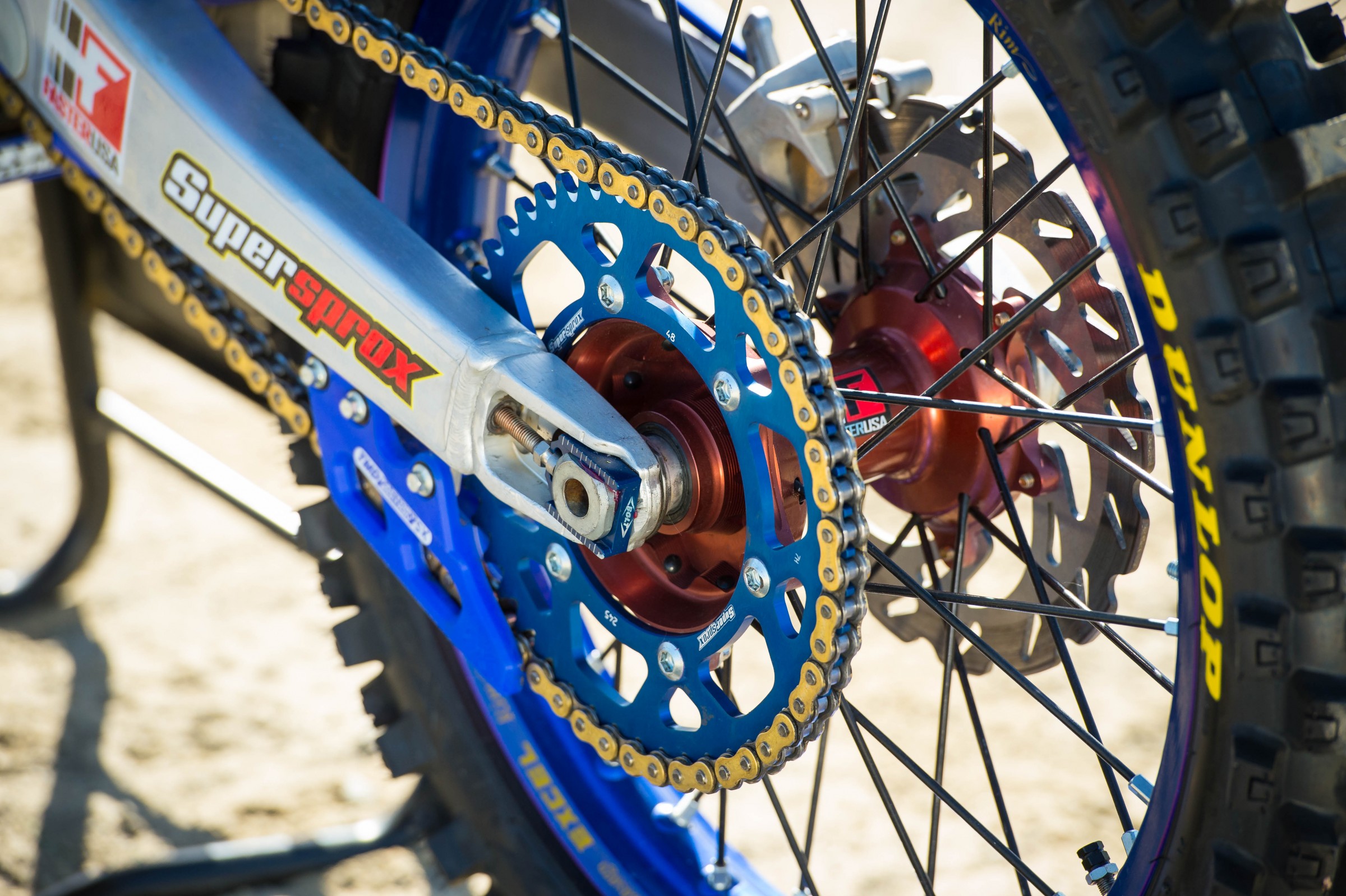

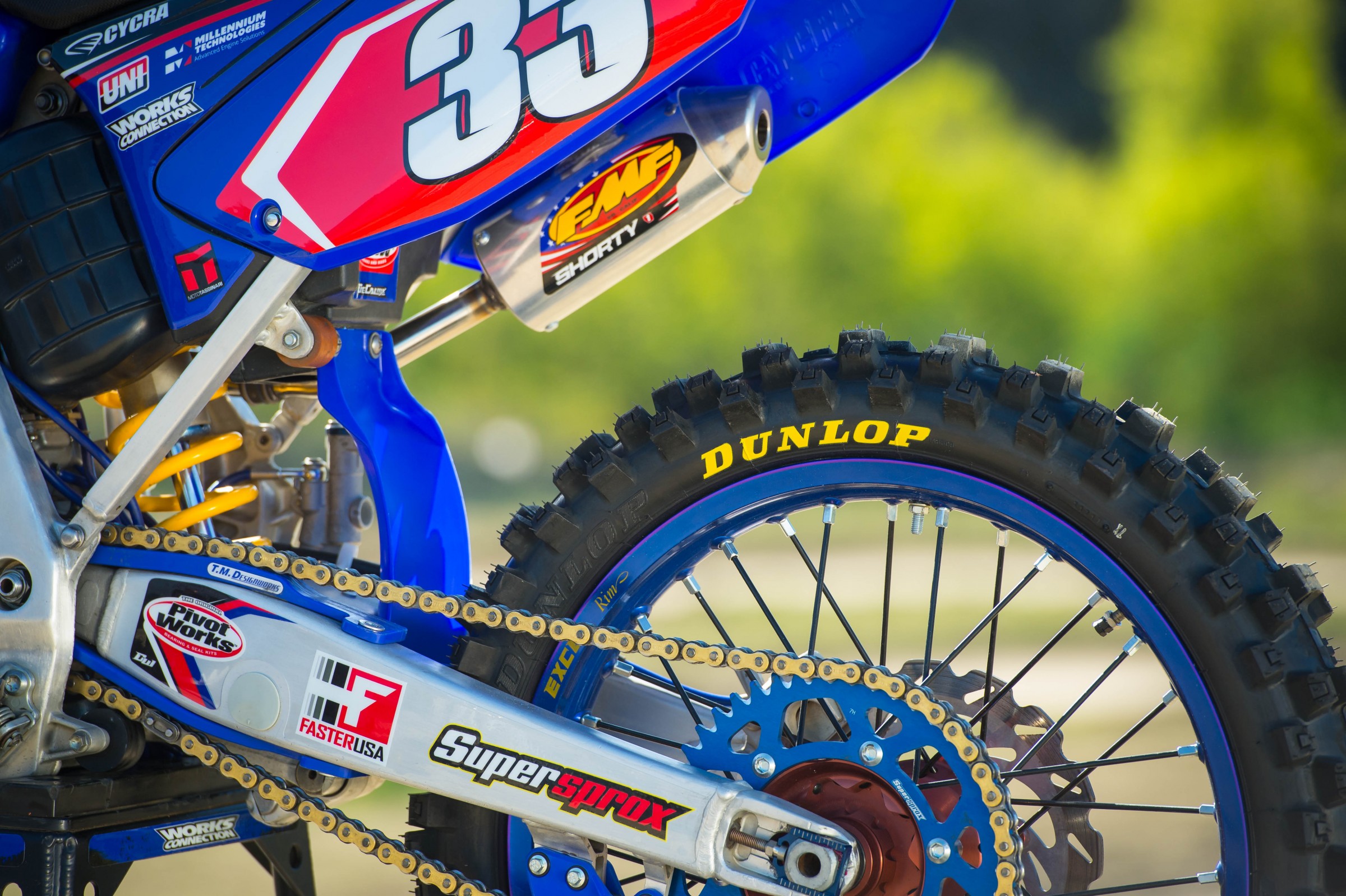

Rear stealth sprocket 49T
Front sprocket
Race chain

Uni Filter

www.unifilter.com
Two-stage air filter

Hinson Clutch Components

www.hinsonracing.com

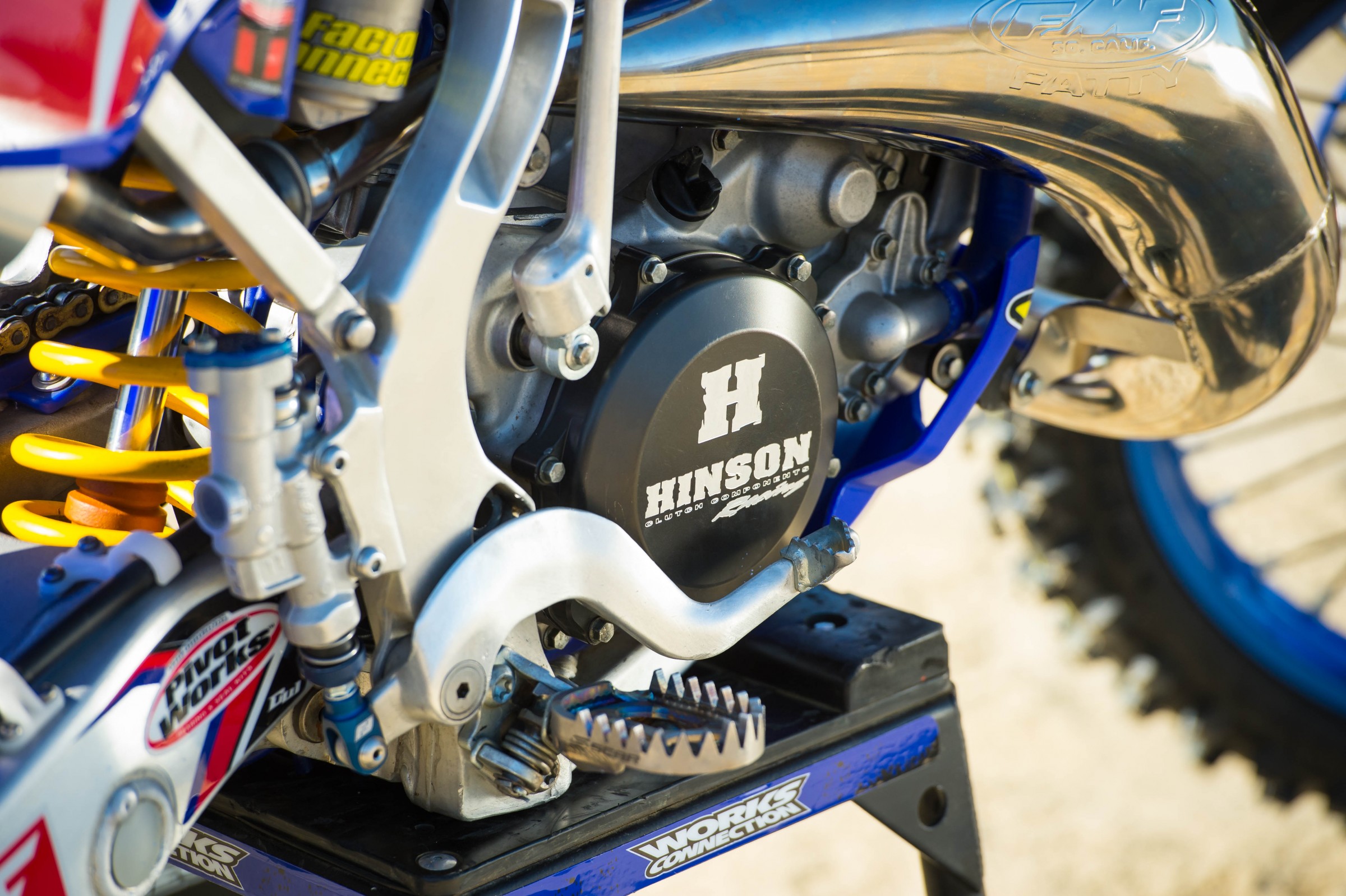

Full clutch kit basket, inner hub, pressure plate and fibers, steels and springs clutch kit and cover

FMF Racing

www.fmfracing.com

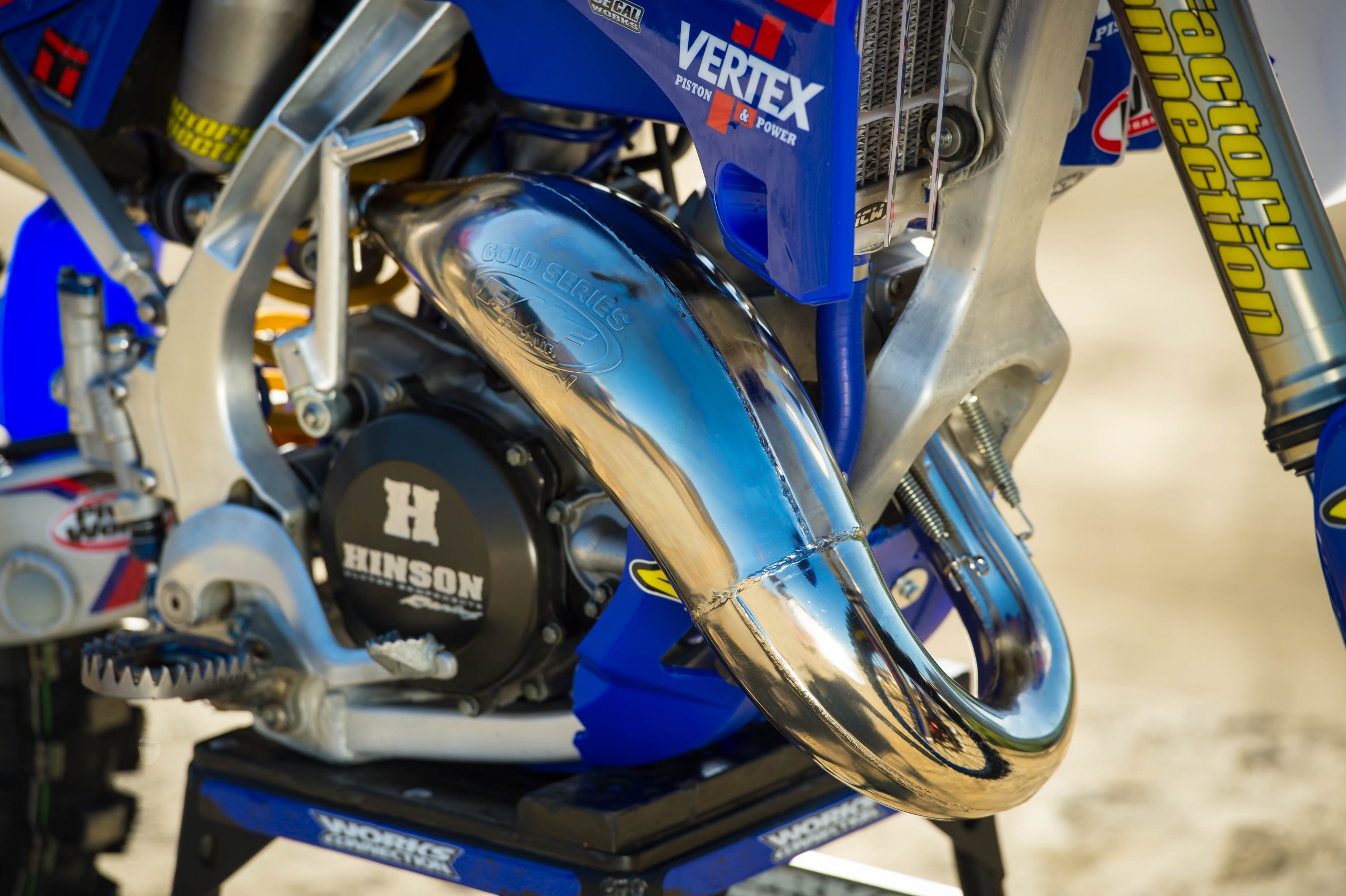

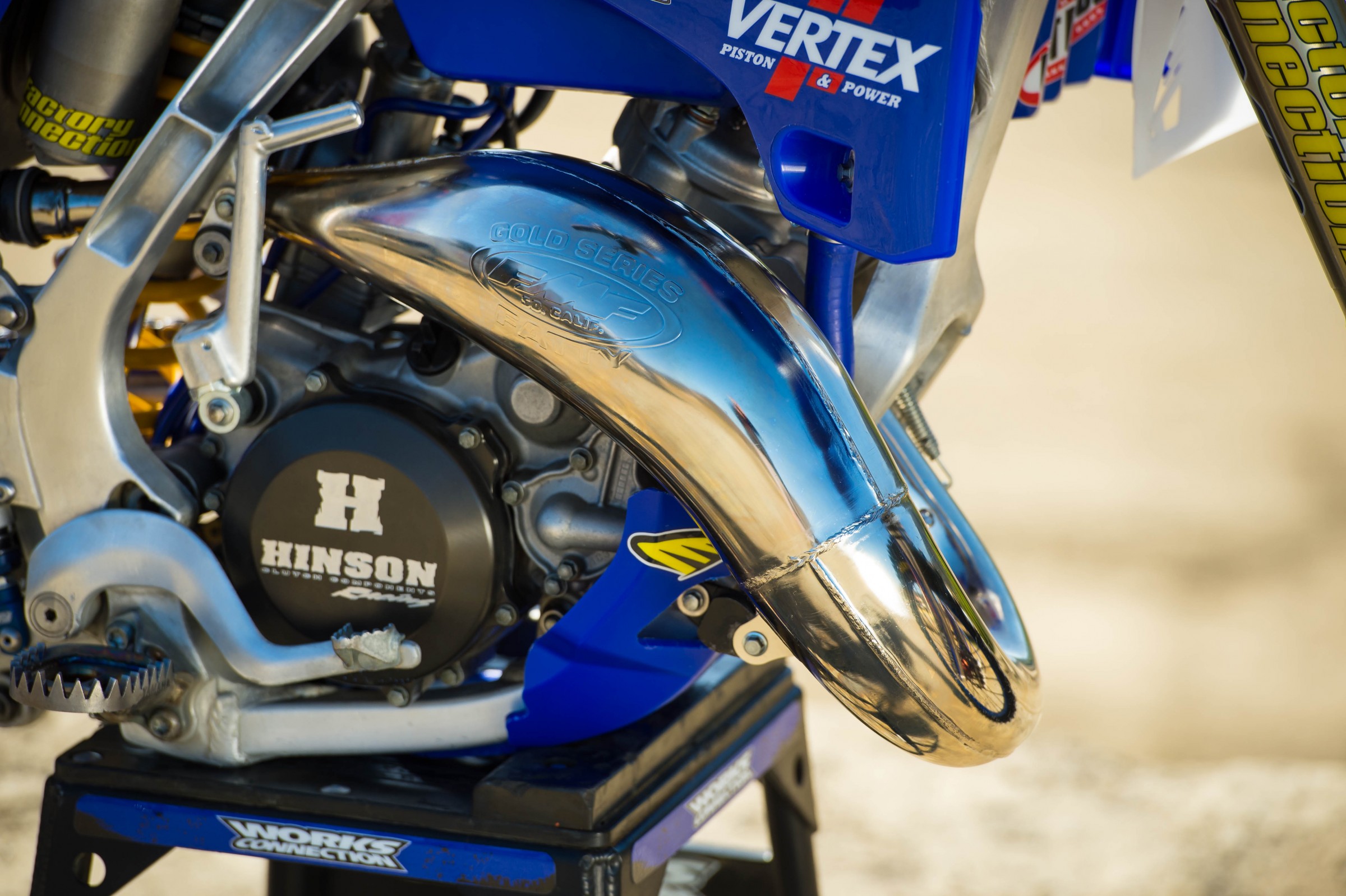

Fatty exhaust

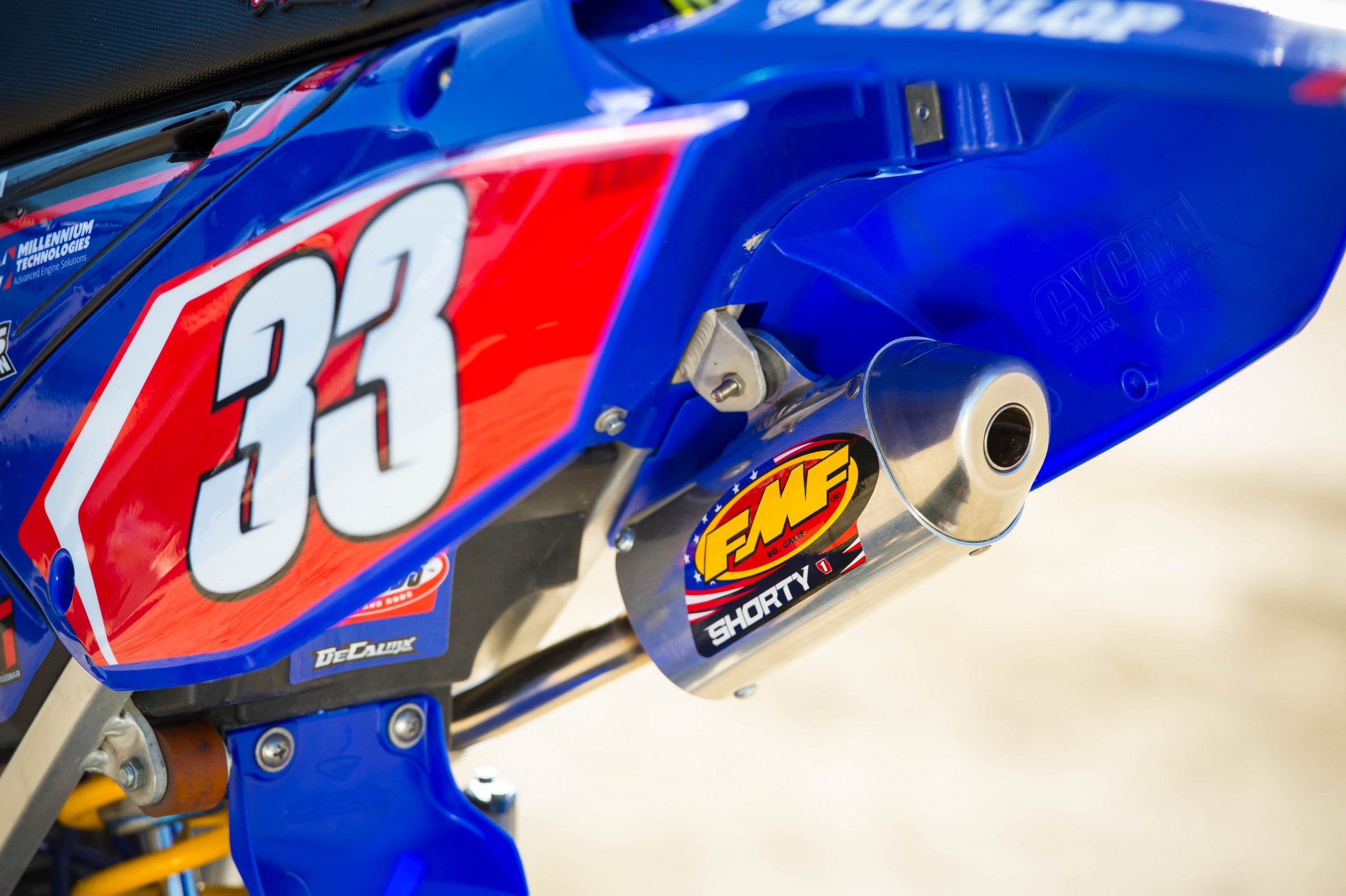

Shorty silencer

MotoTassinari

www.mototassinari.com
V-Force reed cages

Pivot Works

www.pivotworks.com
Steering stem bearing kit
Swing arm kit
Linkage rebuild kit

ICW

www.icwbikestands.com
Radiator straightening and bracing

All Balls

www.allballsracing.com
Carb rebuild kit
Throttle cable
Clutch cable
Brake master rebuild kits

Renthal

www.renthal.com

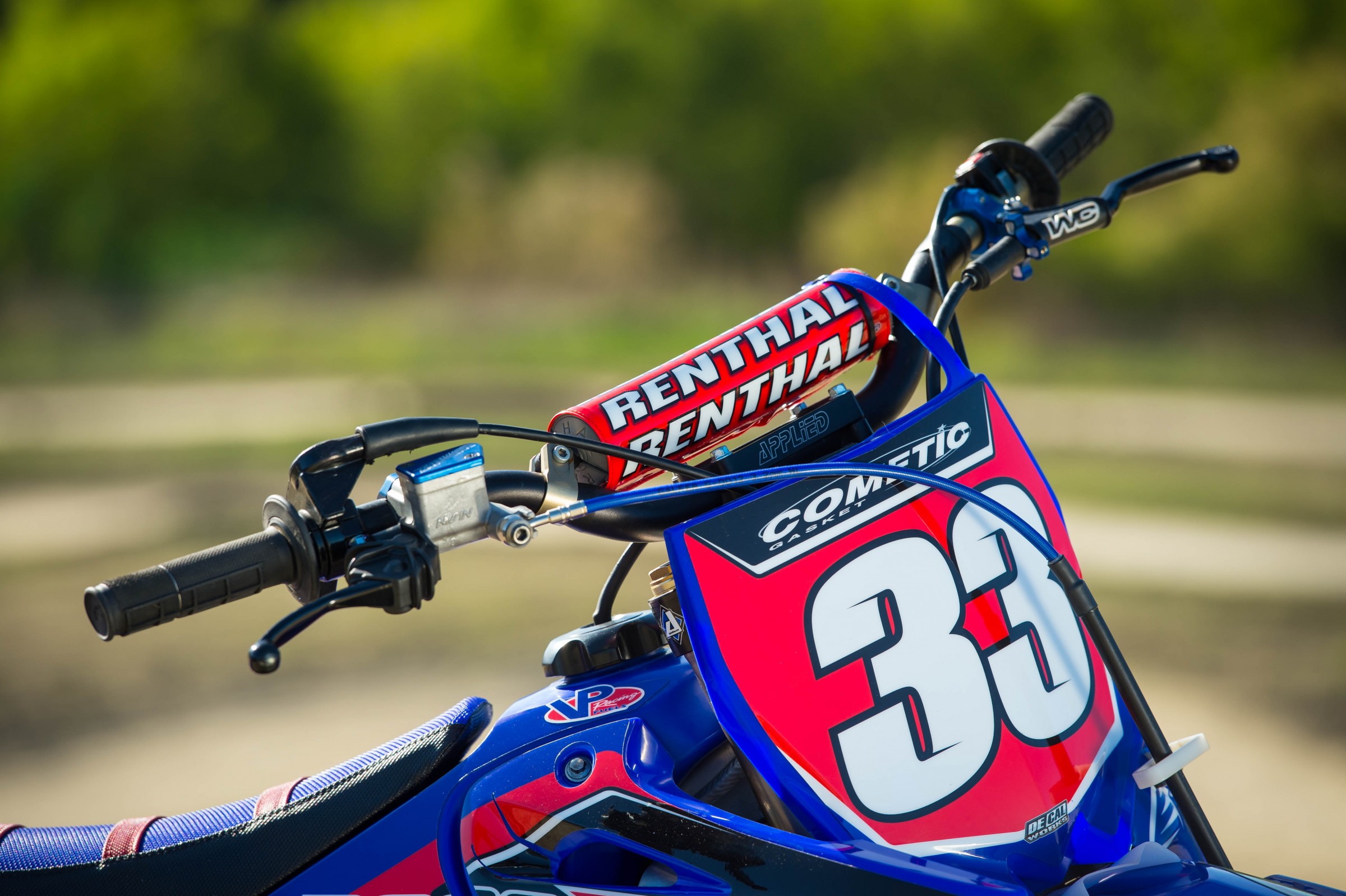

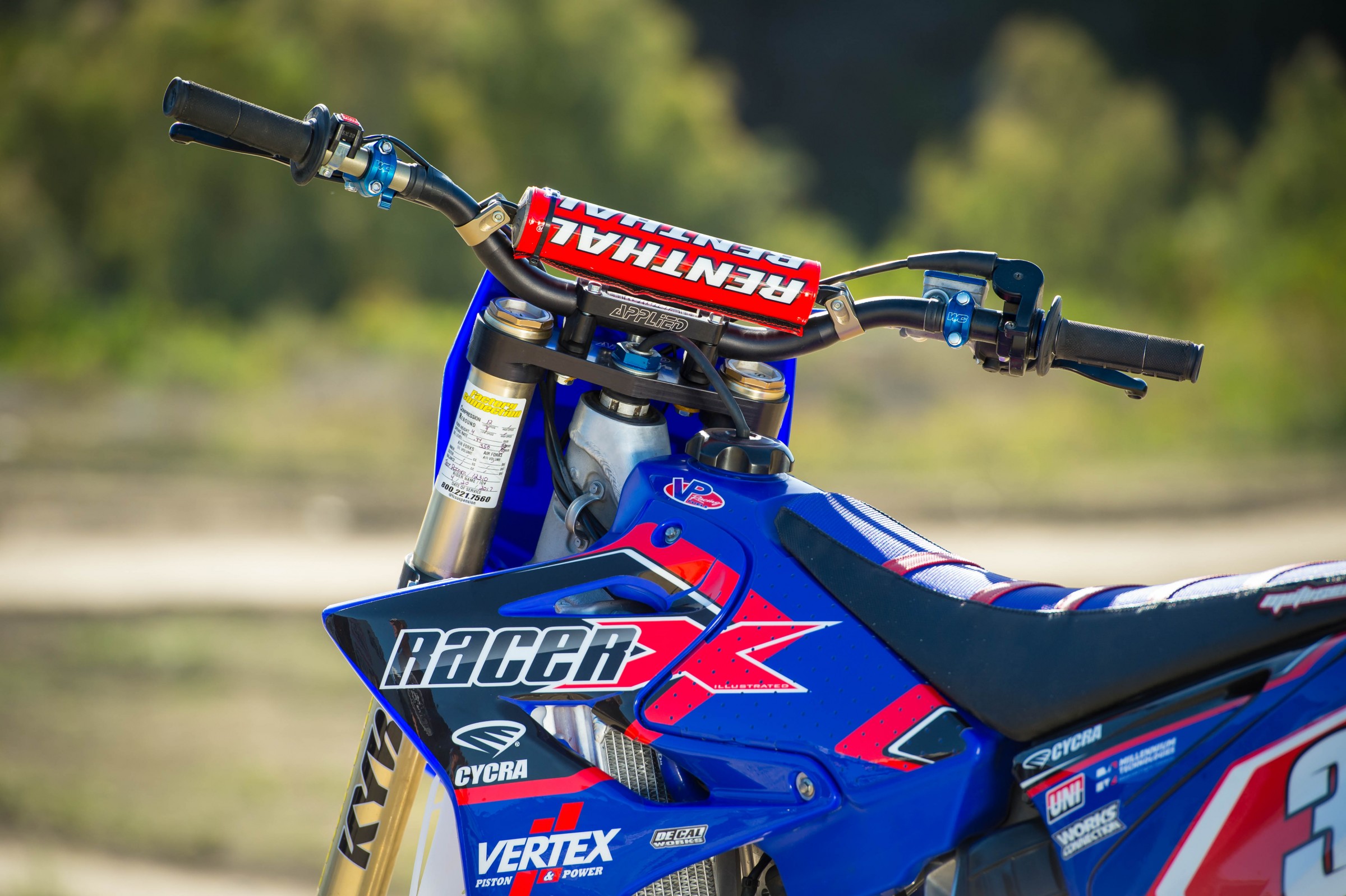

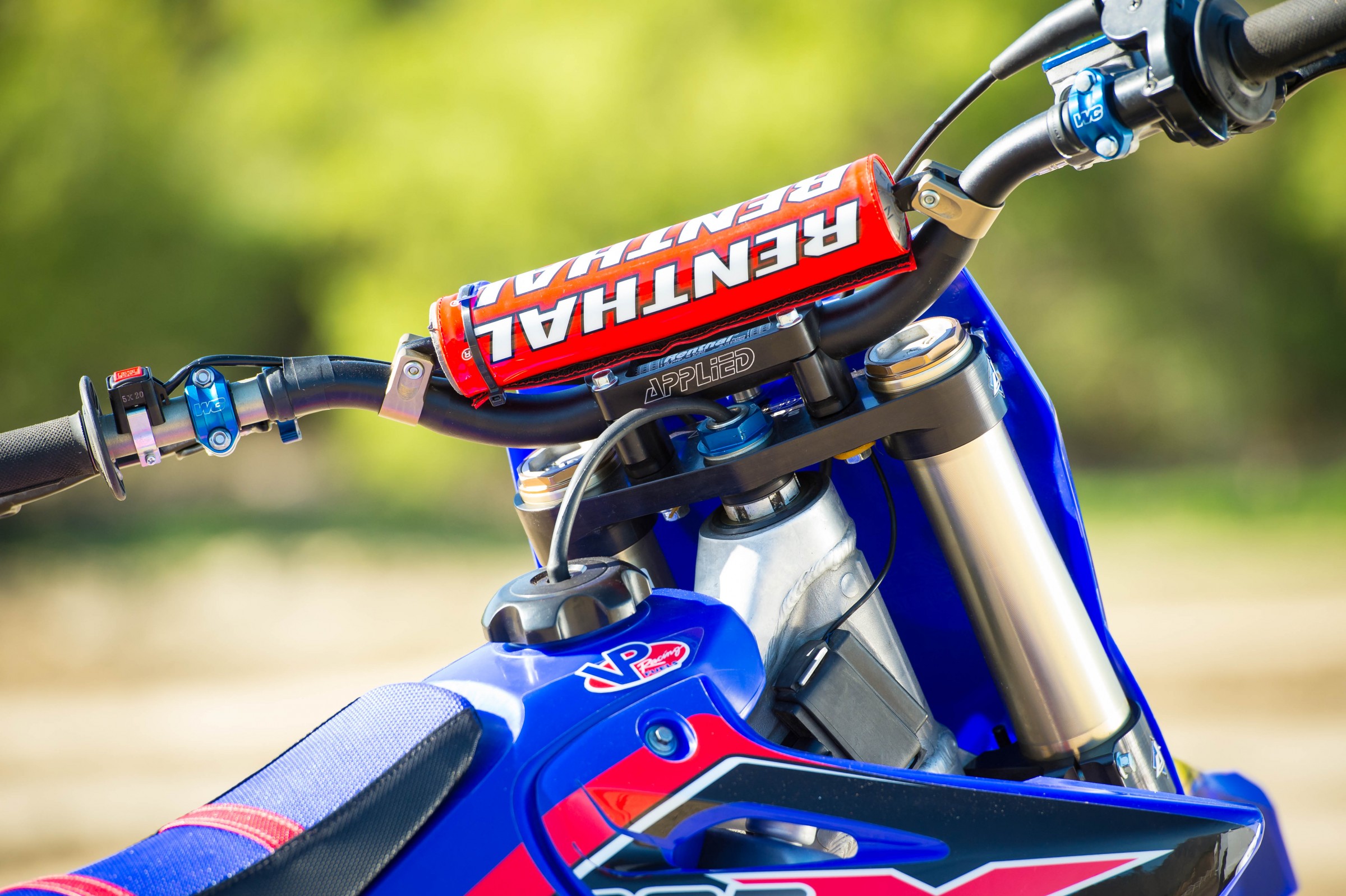

604 Fat bars one 134
Tacky grips
Front and rear brake pads

Dunlop Tire

www.dunlopmotorcycle.com
MX 3S front  80/100-21
MX 3S rear  90/100-21

Works Connection

www.worksconnection.com
Elite clutch perch
Brake caps
Stand
Front brake lever
Brake rotating bar mount
Stand

Tusk

www.tuskoffroad.com

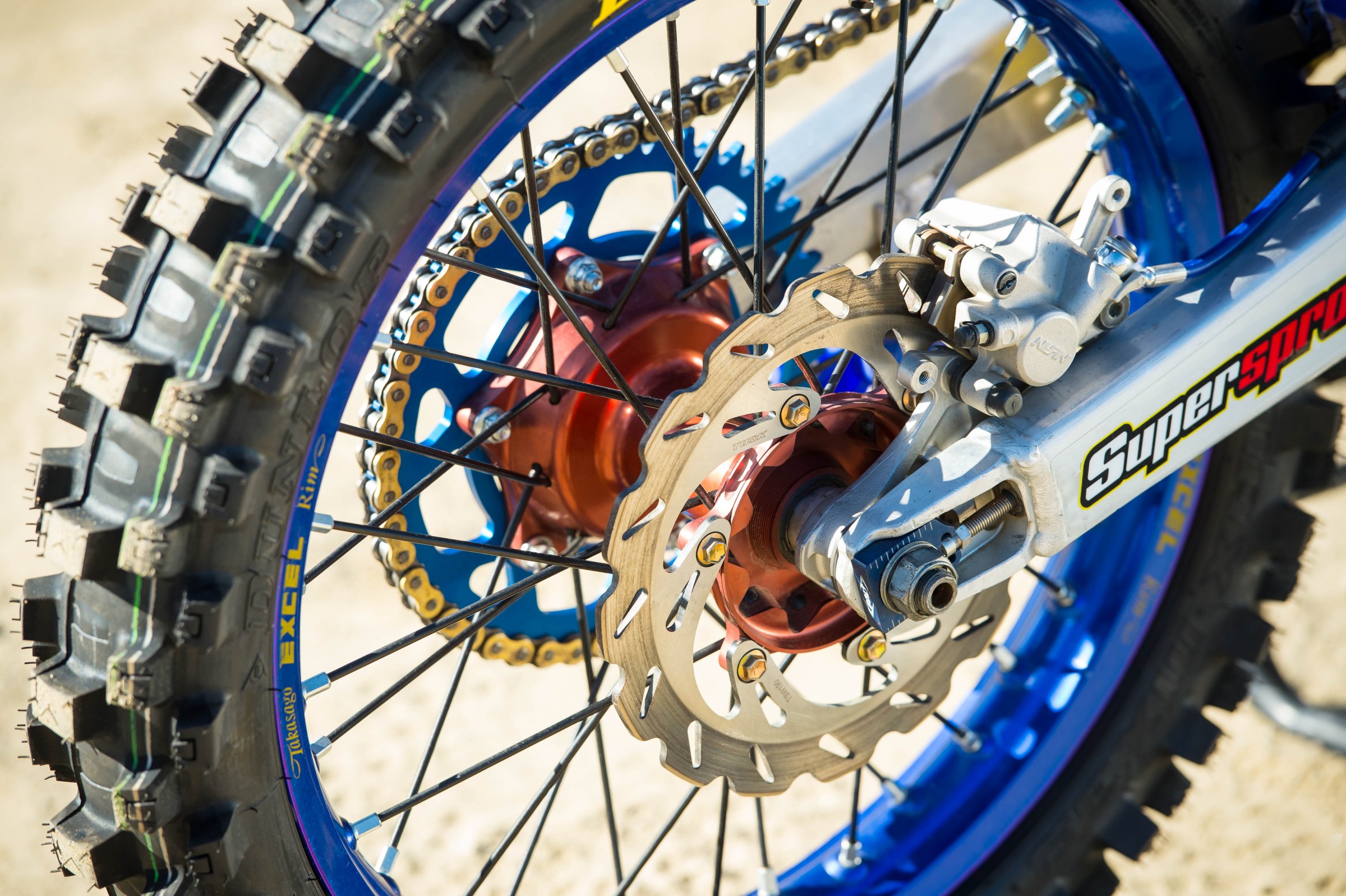

270mm oversized front and rear rotor
Front and rear steel braided brake lines

Applied Racing

www.AppliedRace.com
Custom triple clamp to fit new fender/number plate

DeCal Works

www.decalmx.com
Semi-custom graphics kit
Pre printed number plates backgrounds

Cycra Racing

www.cycraracing.com

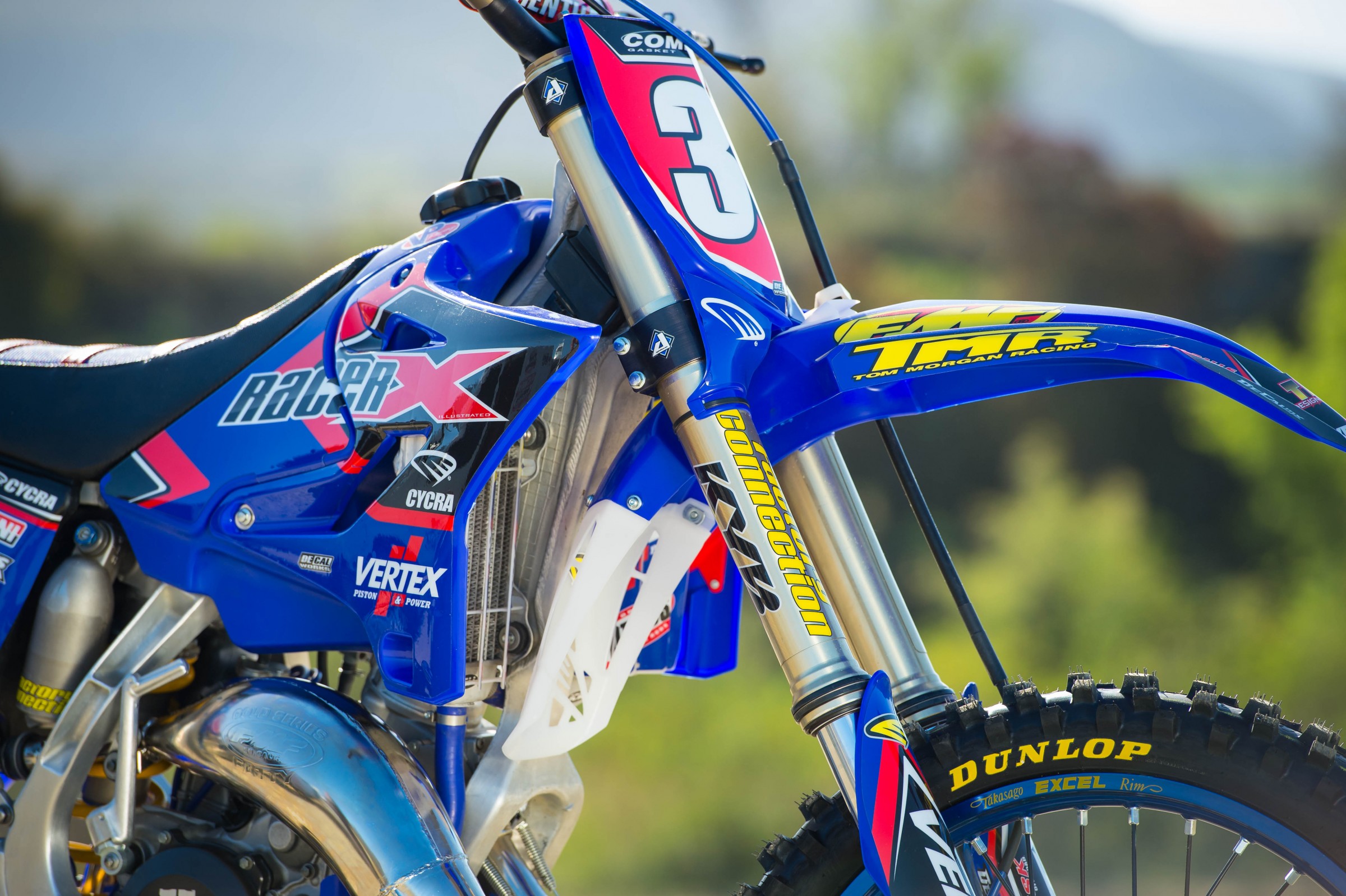

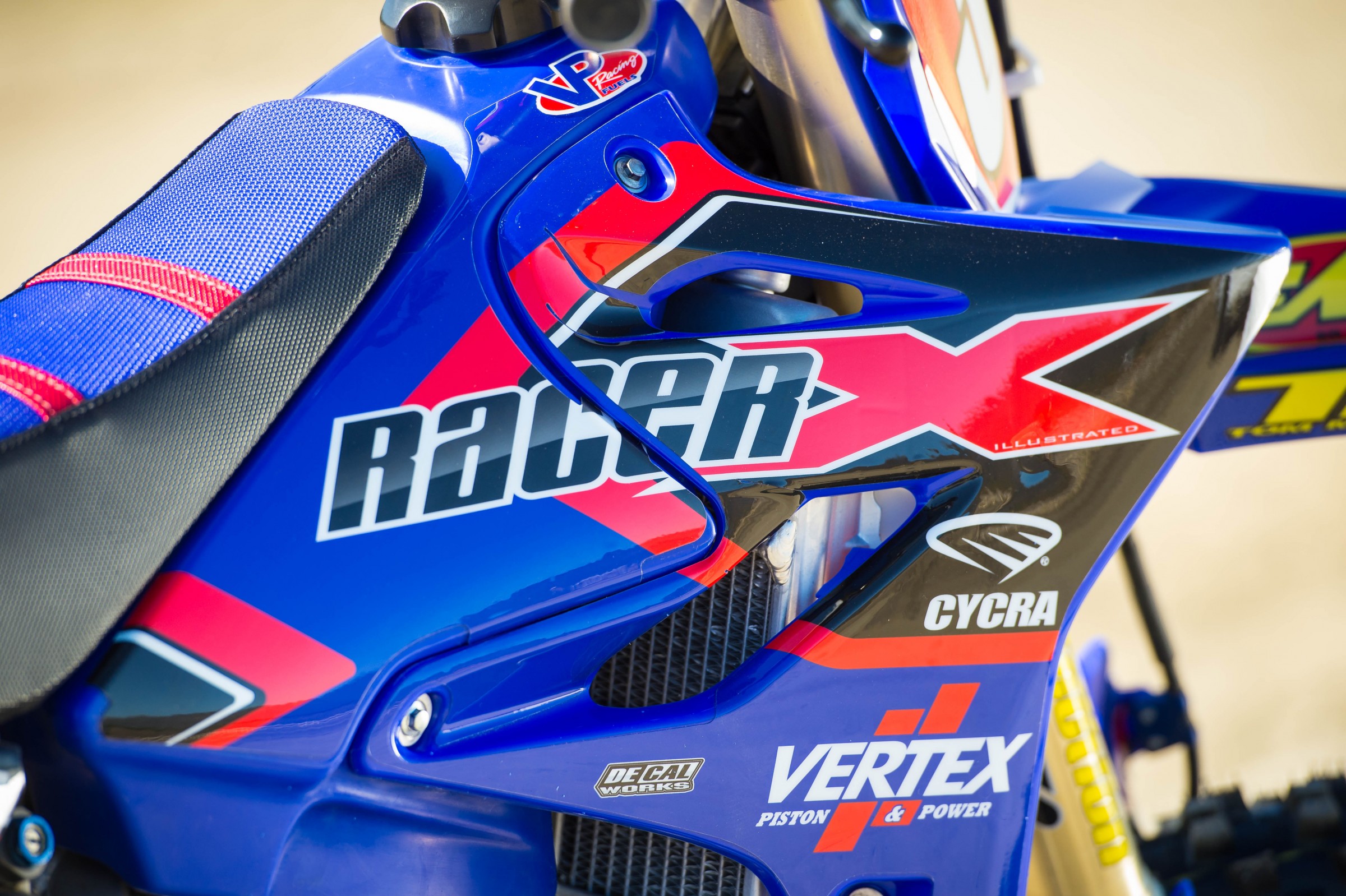

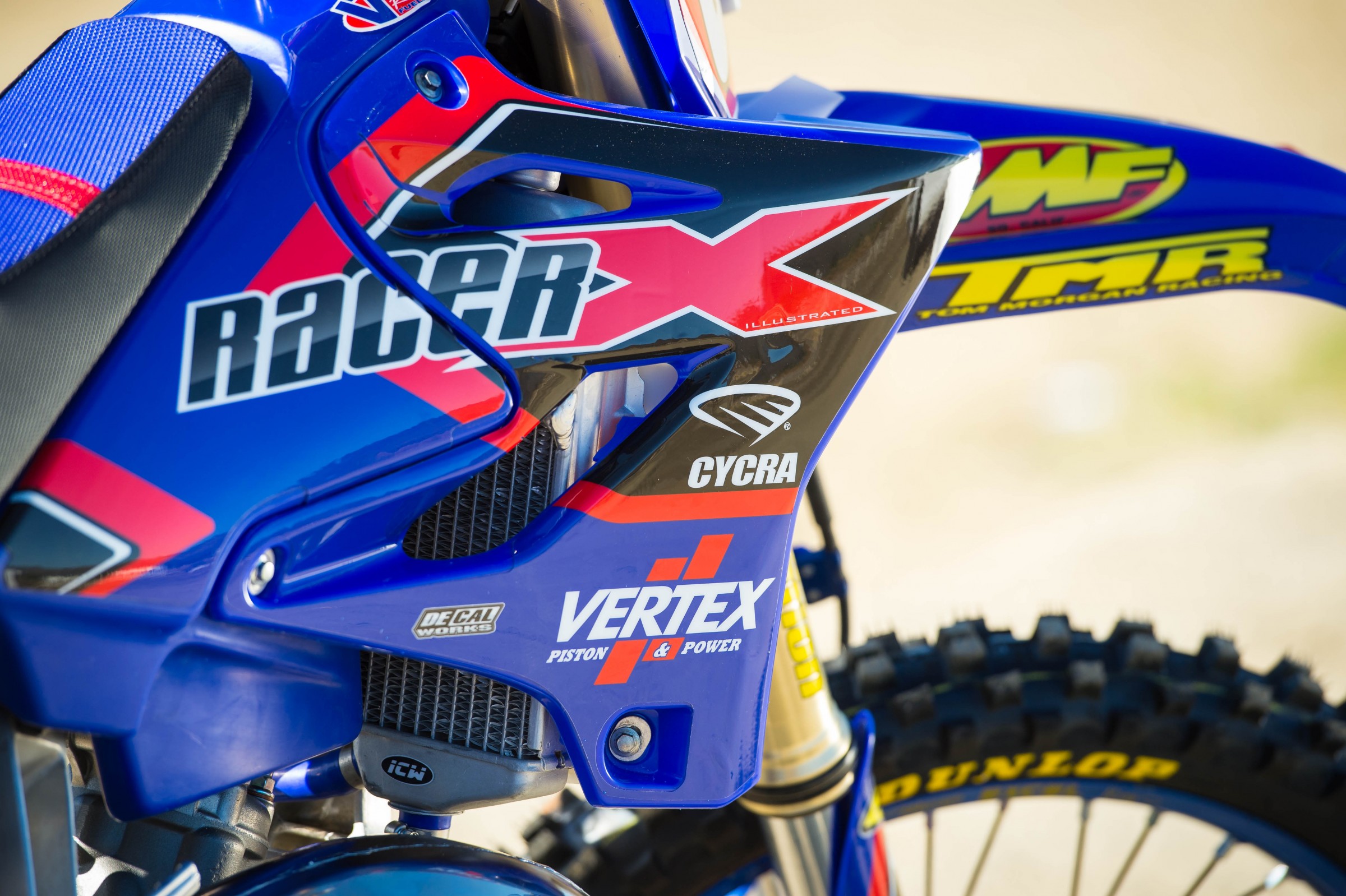

Full update plastic kit in blue
Formed silicone coolant hoses
High pressure radiator cap

TM Designworks

www.tmdesignworks.com
Chain guide and chain block

Moto Seat

www.motoseat.com
Custom cool seat cover

VP Fuel

www.vpracingfuels.com
C-12 Fuel

Faster USA

www.fasterusa.com

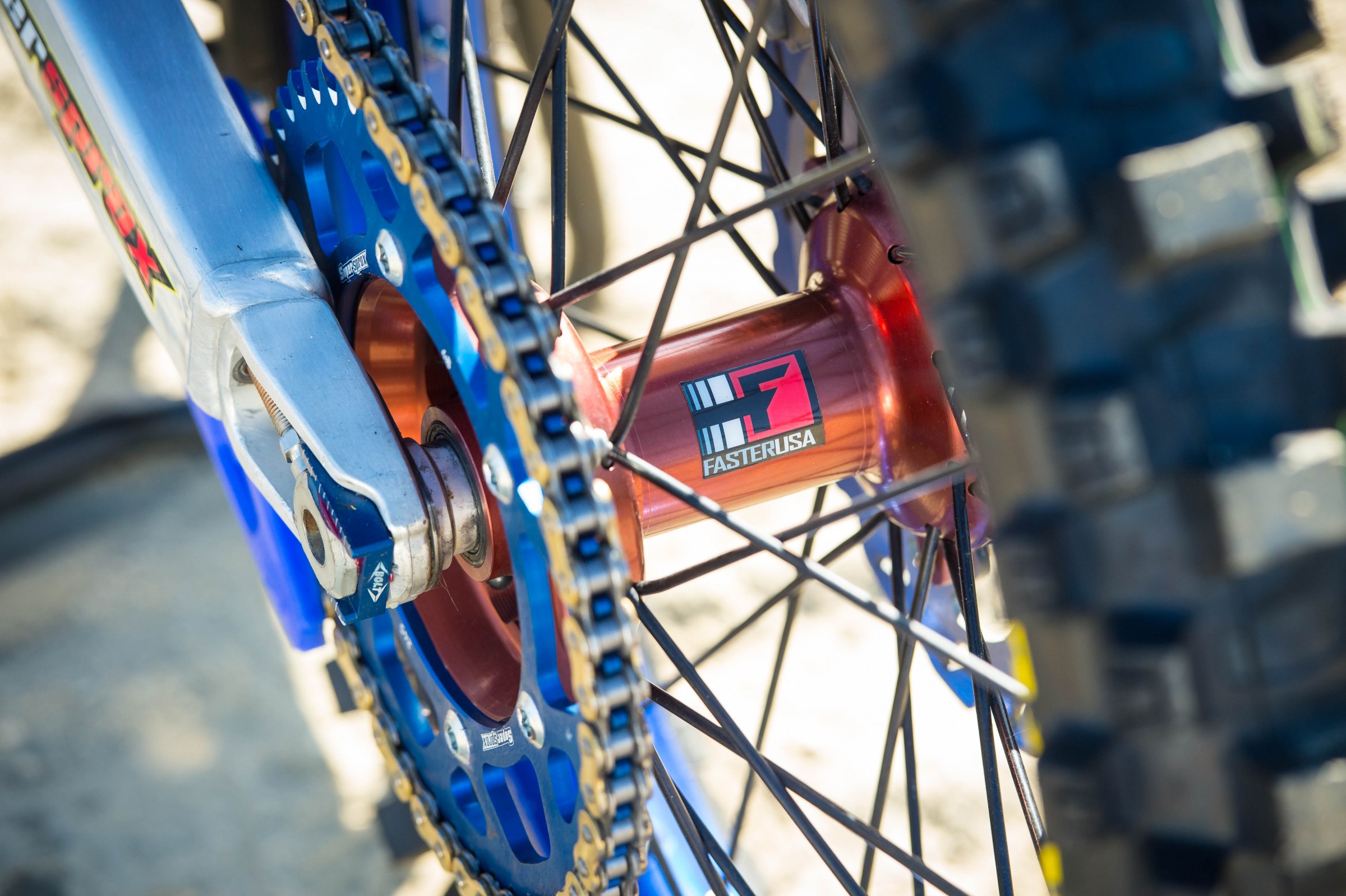

Complete custom wheel set

Motion Pro

www.motionpro.com
Grip glue
Titan throttle tube

Klotz Synthetic Lubricants

www.klotzlube.com
R-50 two-stroke pre-mix

Factory Connection

www.factoryconnection.com
Suspension rebuild and service

Bolt Motorcycle Hardware

www.boltmotorcyclehardware.com
Hardware
Chain adjuster blocks

Scar

www.scar-racing.com

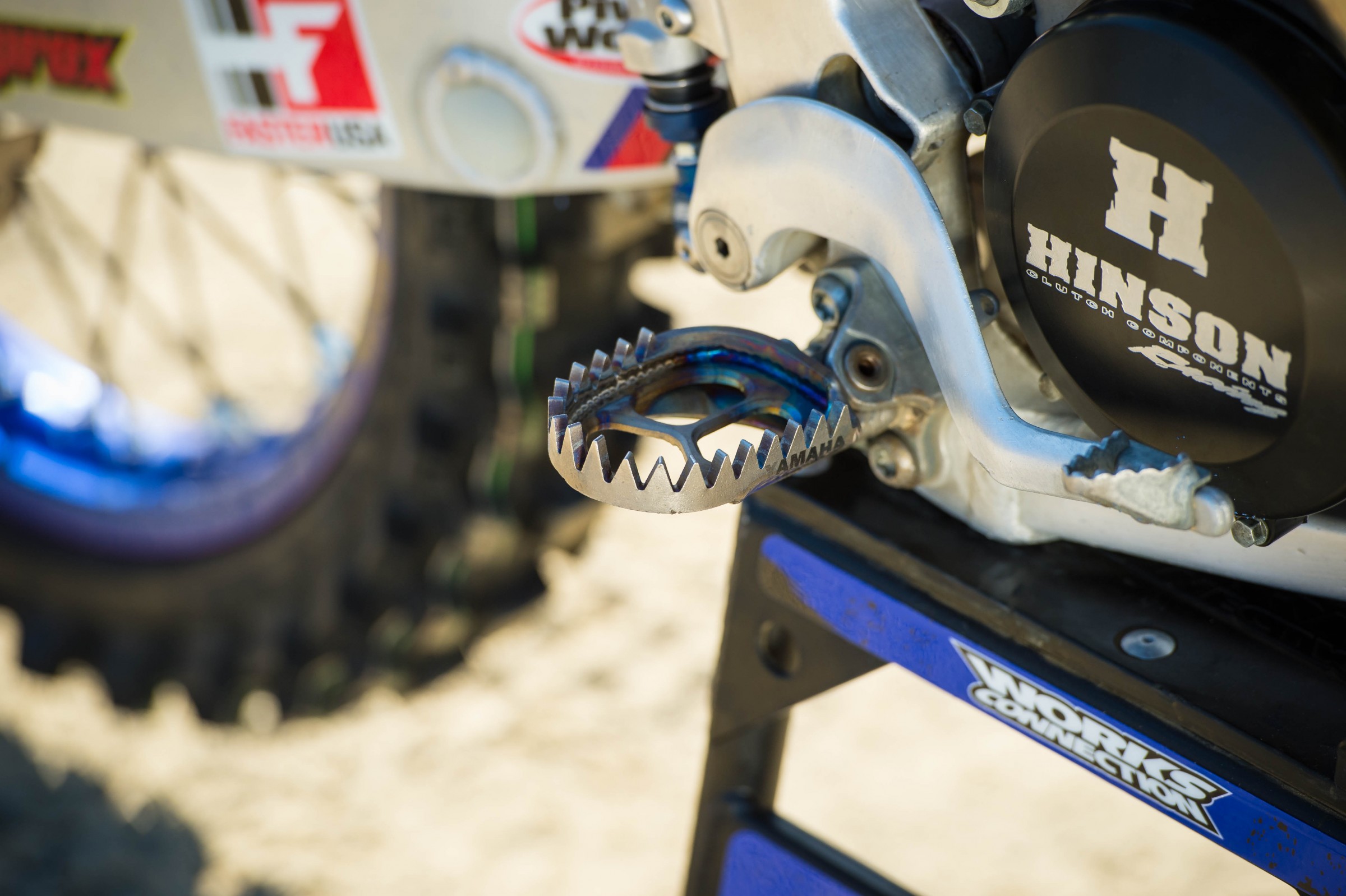

Titanium footpegs
