By David Pingree
Build by Jay Clark
Photos/Video by Simon Cudby

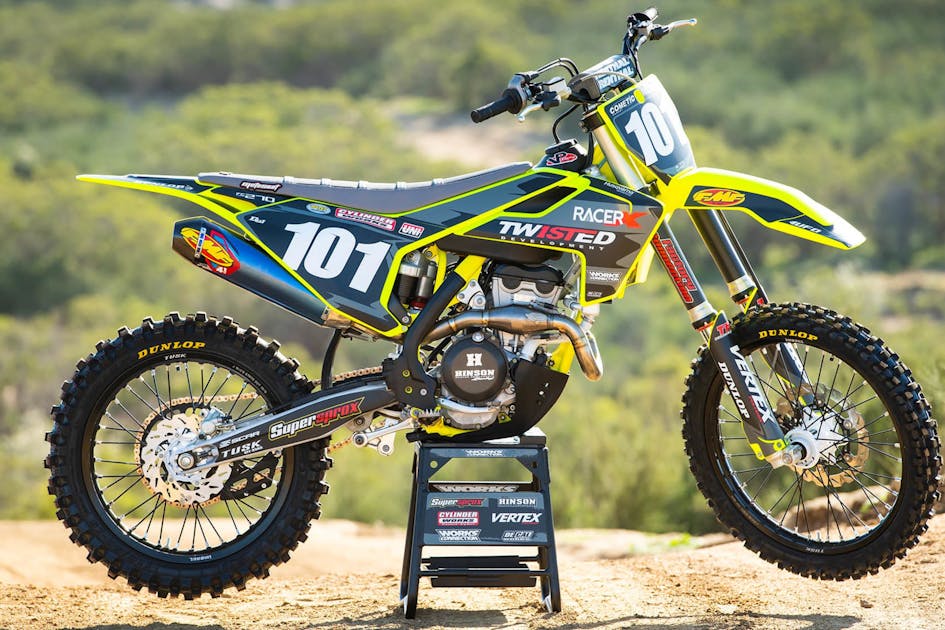

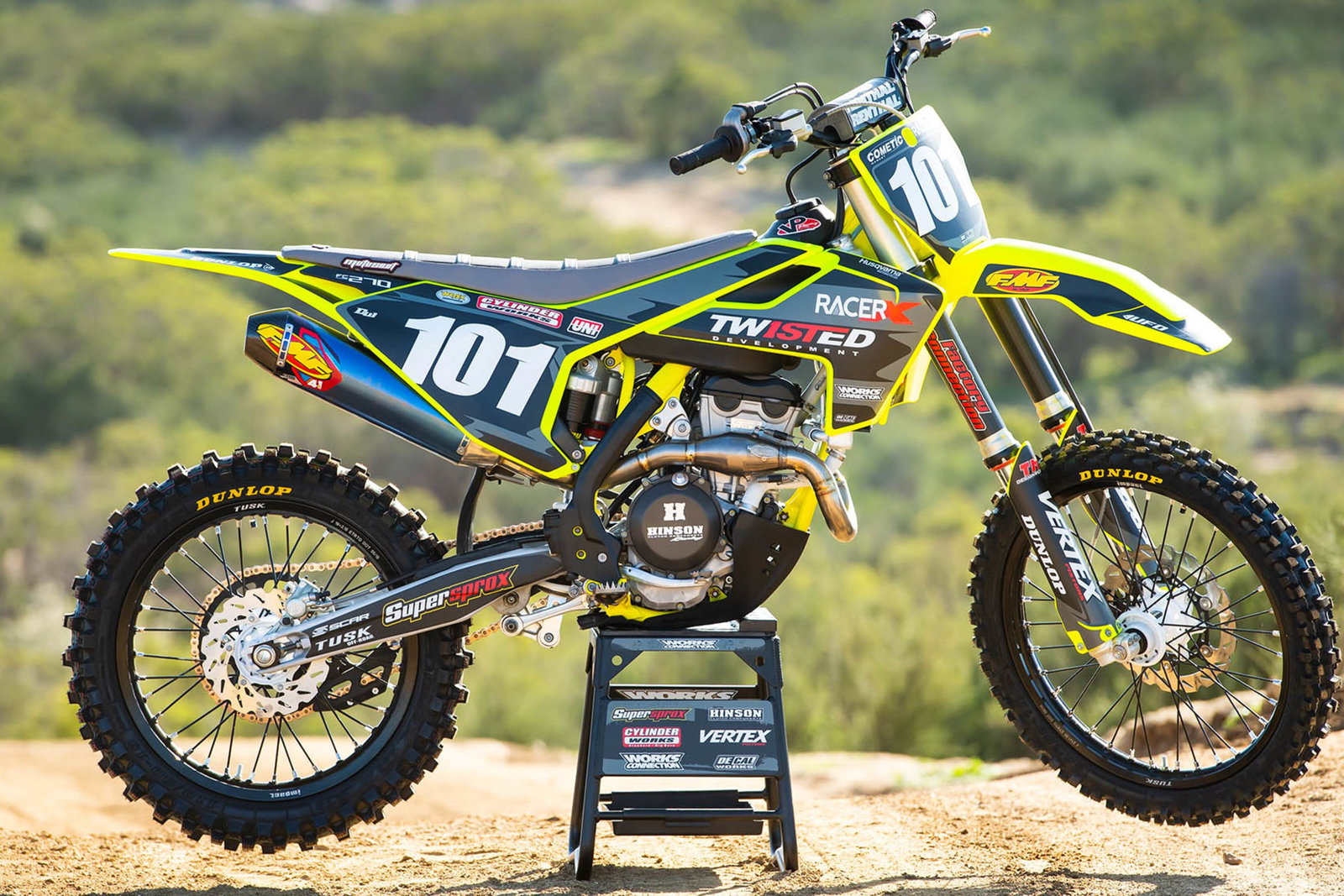

The concept on this build was to take a bike that is a little older and make it competitive against anything current. We took a 2018 FC250 we bought from a former pro racer that was in need of a rebuild. We picked it up cheap, knowing we needed to do some work to the engine to freshen it up. These engine and suspension modifications will work on all 2016-19 Husqvarna and KTM 250 4-strokes.
Once you’re spending the money to go through an engine like this, it makes financial sense to consider a big-bore kit. For a vet racer who wants something easier to handle than a 450, or for an intermediate or pro rider looking for a fast practice bike that has longer service intervals, this is a great option. While the Cylinder Works kit alone is a good 4-5 horsepower gain, Twisted Development ports the head to match the larger bore, cuts the valve seats and maps the Vortex ECU. With that extra work, you can get about 8-10 horsepower gains, depending on which fuel you run. Our Cylinder Works 270 was an animal on the track. The torque numbers are as good or better than factory race bikes, and the power keeps pulling, thanks to the ignition and motor work. This big-bore kit is a fantastic choice for a non-displacement class or somebody just wanting a fun, fast bike to ride. The suspension and components worked great and, honestly, this bike worked better than any stock 2020 I’ve ridden. This bike was a blast!

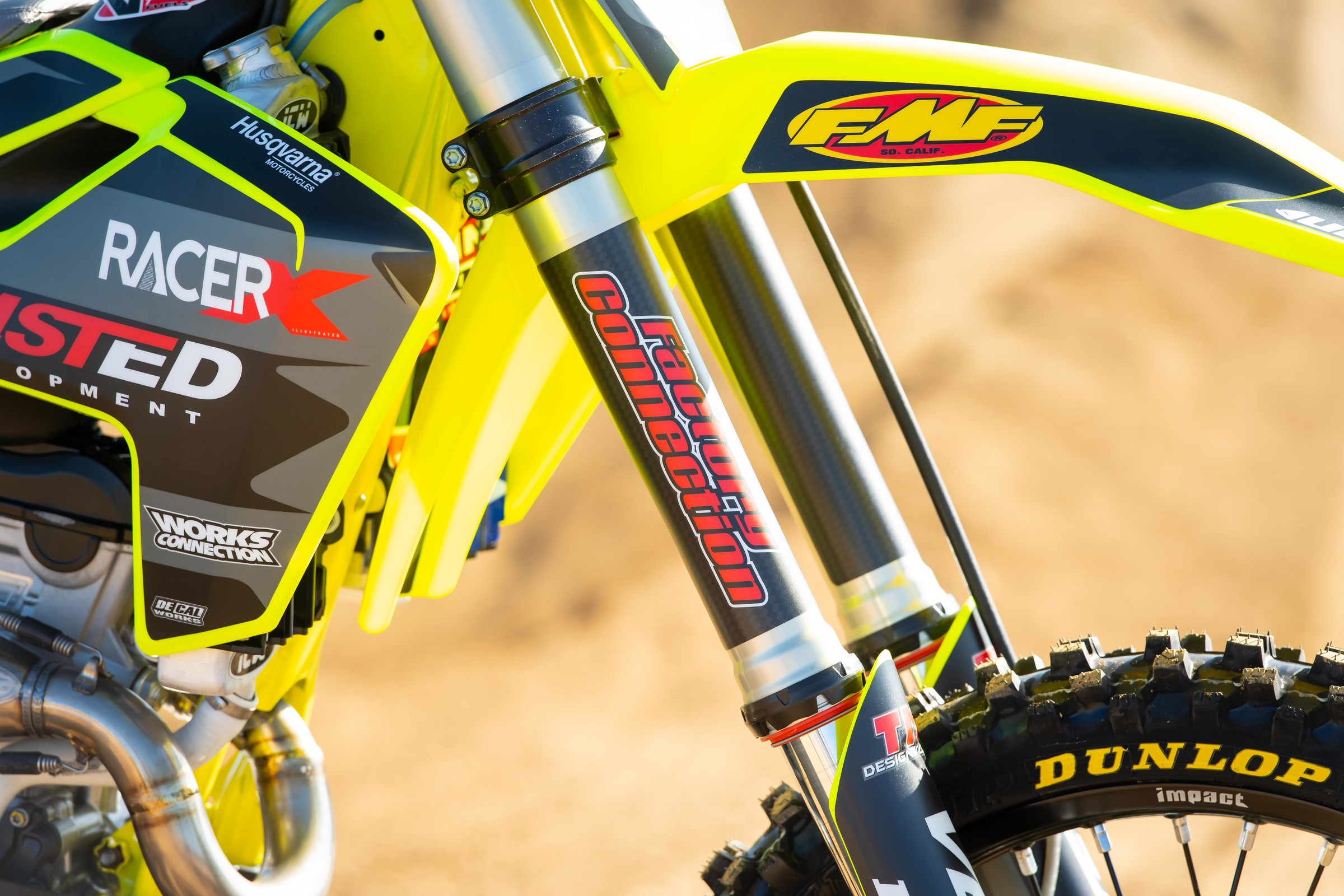

The Factory Connection guys did an awesome job with the suspension, and the handling was just as good as the engine. It wasn’t factory race bike power and handling, but it wasn’t too far off, either. For the money and the reliability, this setup is legit!
A special thanks to Cahuilla Creek Motocross for allowing us to test after hours www.cahuillacreekmotocross.com.
3mm Big bore Cylinder Kit 269cc, Includes Forged Vertex Piston and Top End Gasket Kit

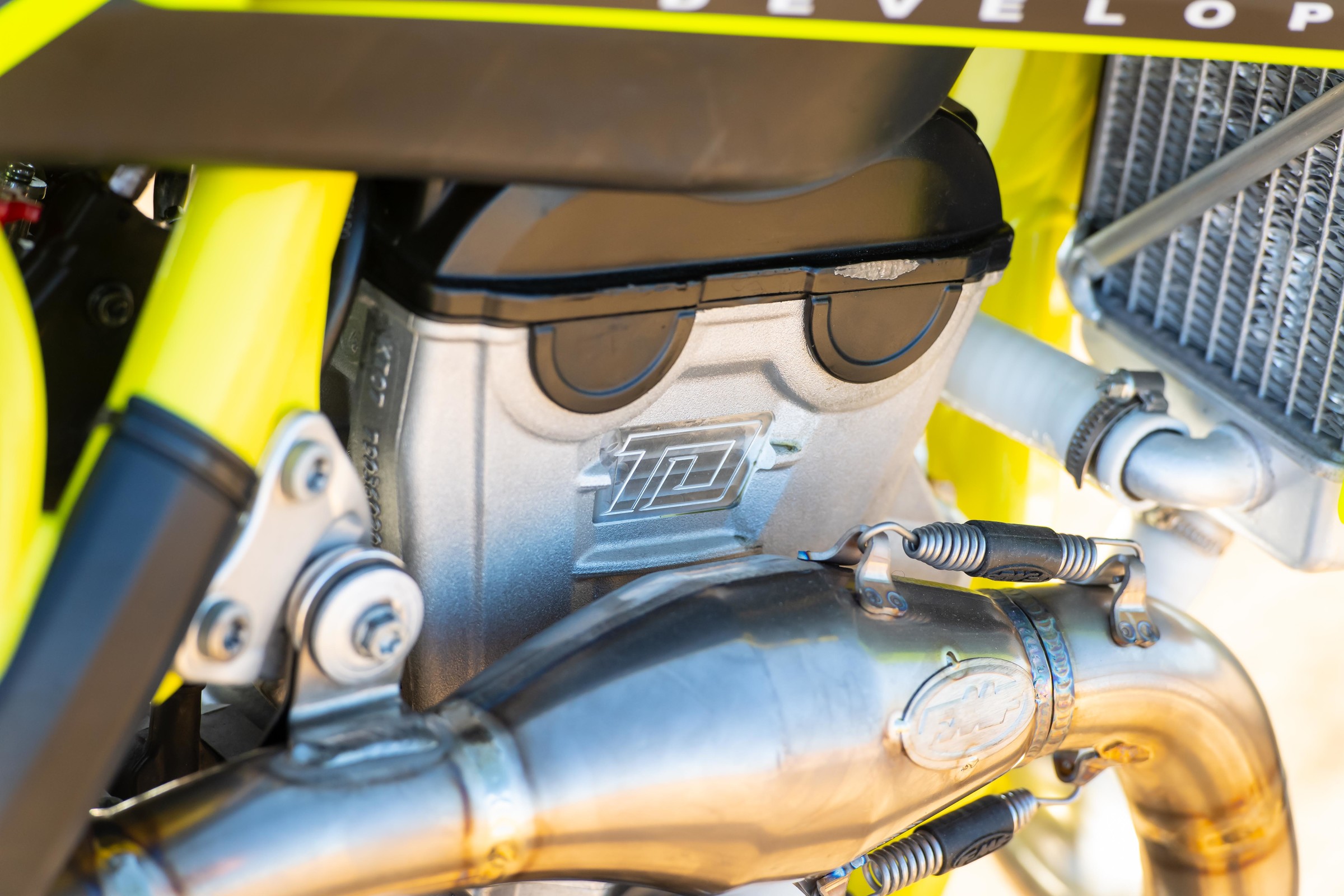

Vortex X-10 ECU and Mapping, Head Porting to Match Cylinder (valve seats cut)

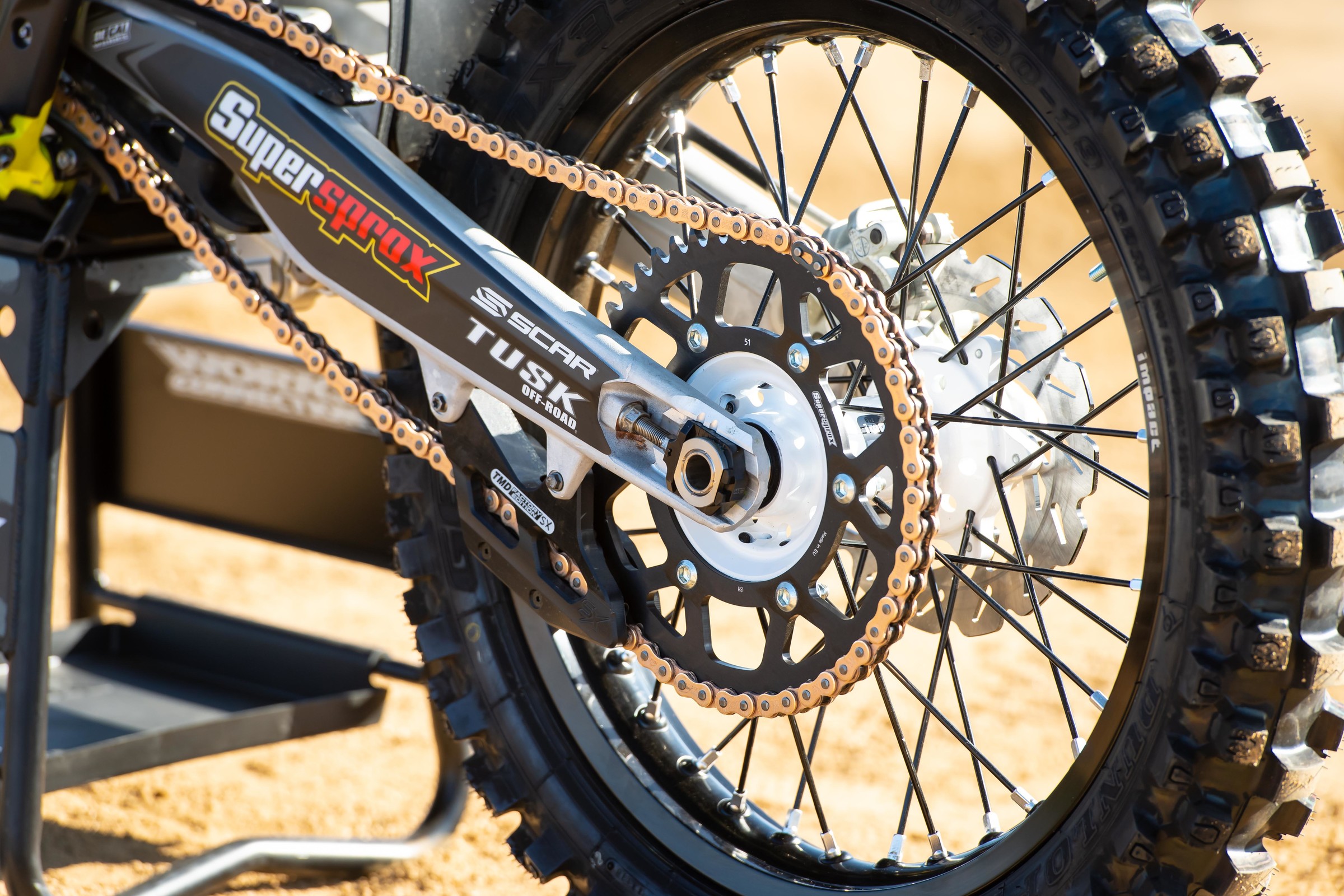

Rear Sprocket 51T, Front Sprocket 14T, Gold MX Race Chain G520-MXT-L-120
Two-Stage Air Filter

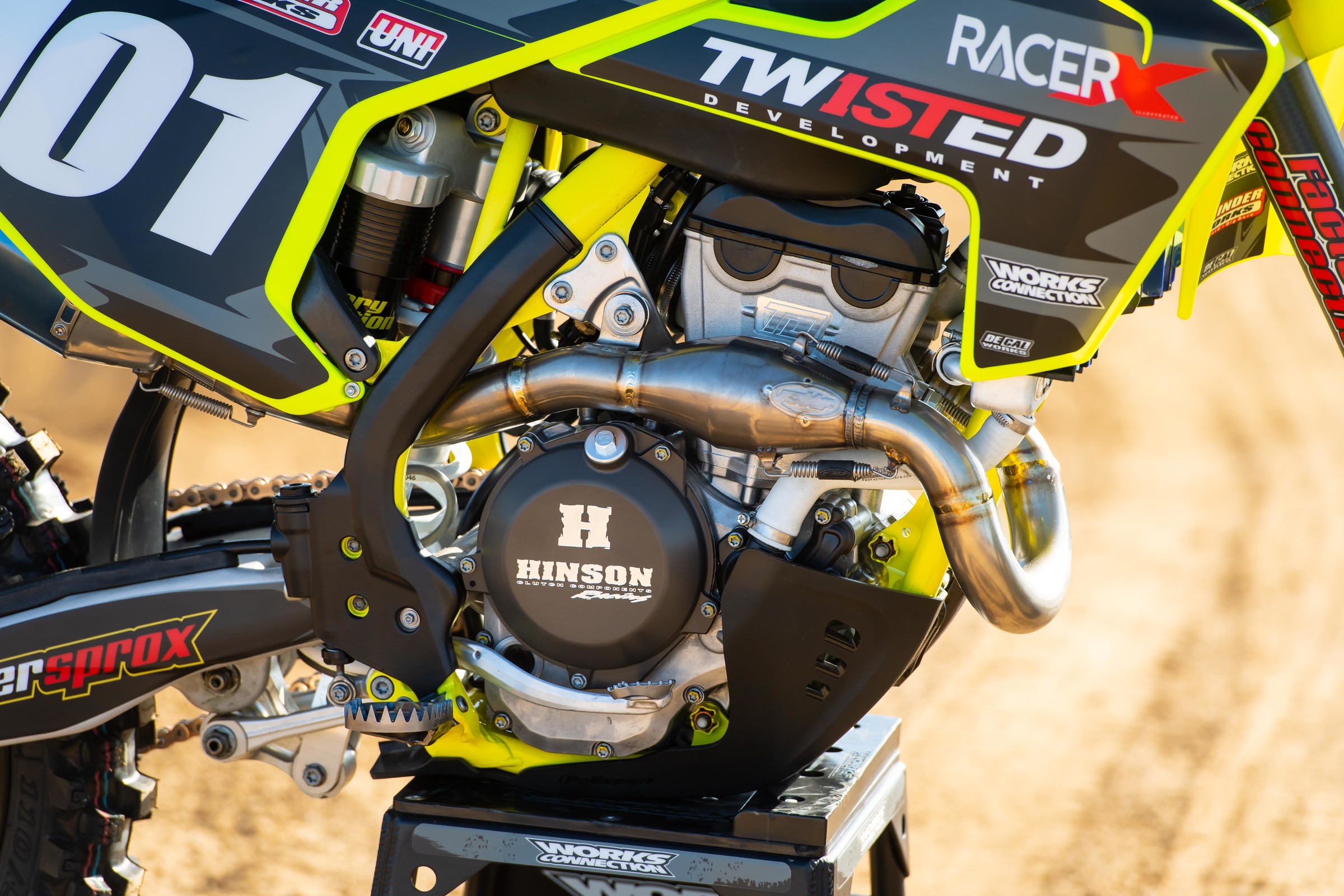

Hinson Clutch Components

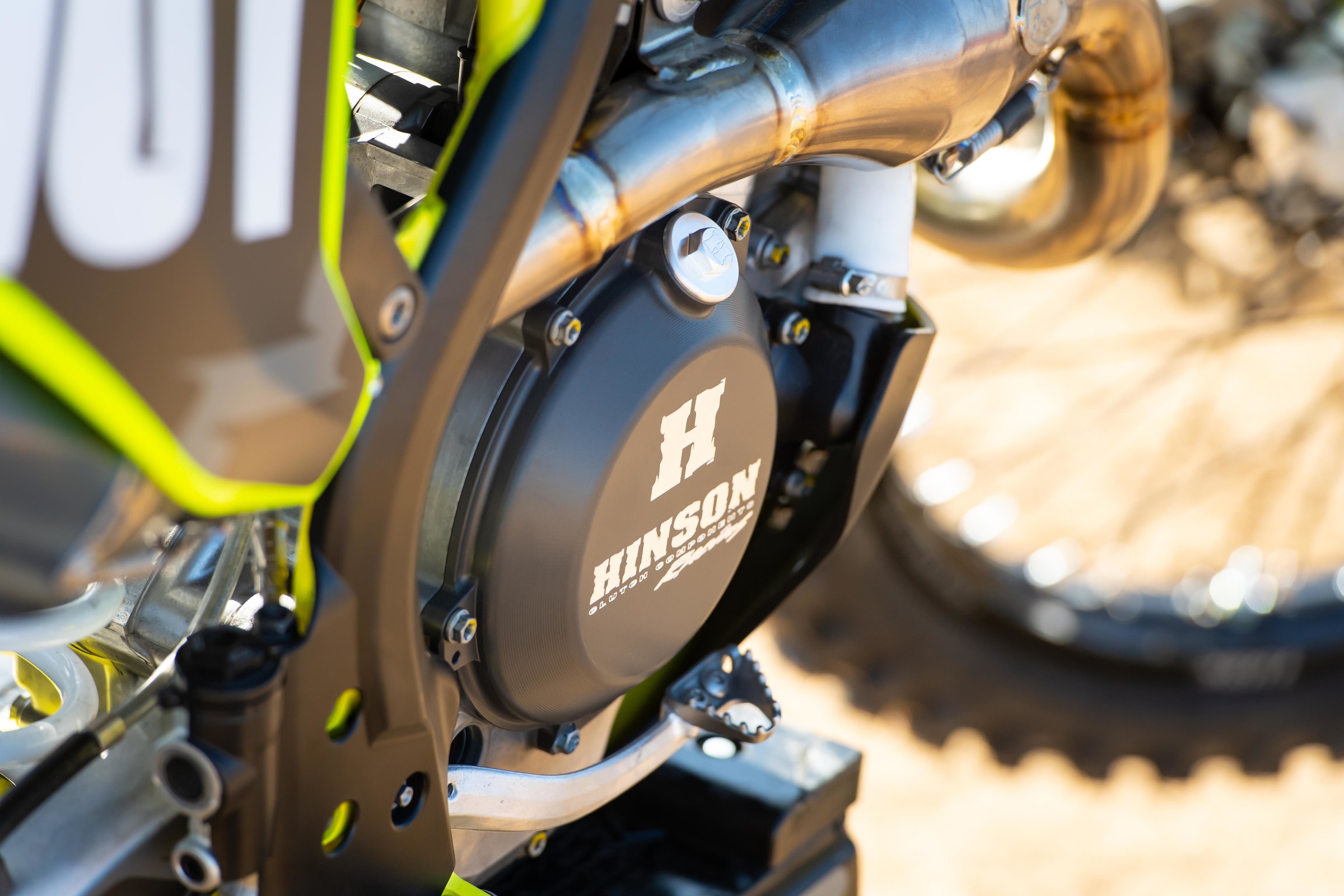

Full Clutch Kit (Basket, Inner Hub, Pressure Plate and Fibers, Steels and Springs Clutch Kit w/Cover)

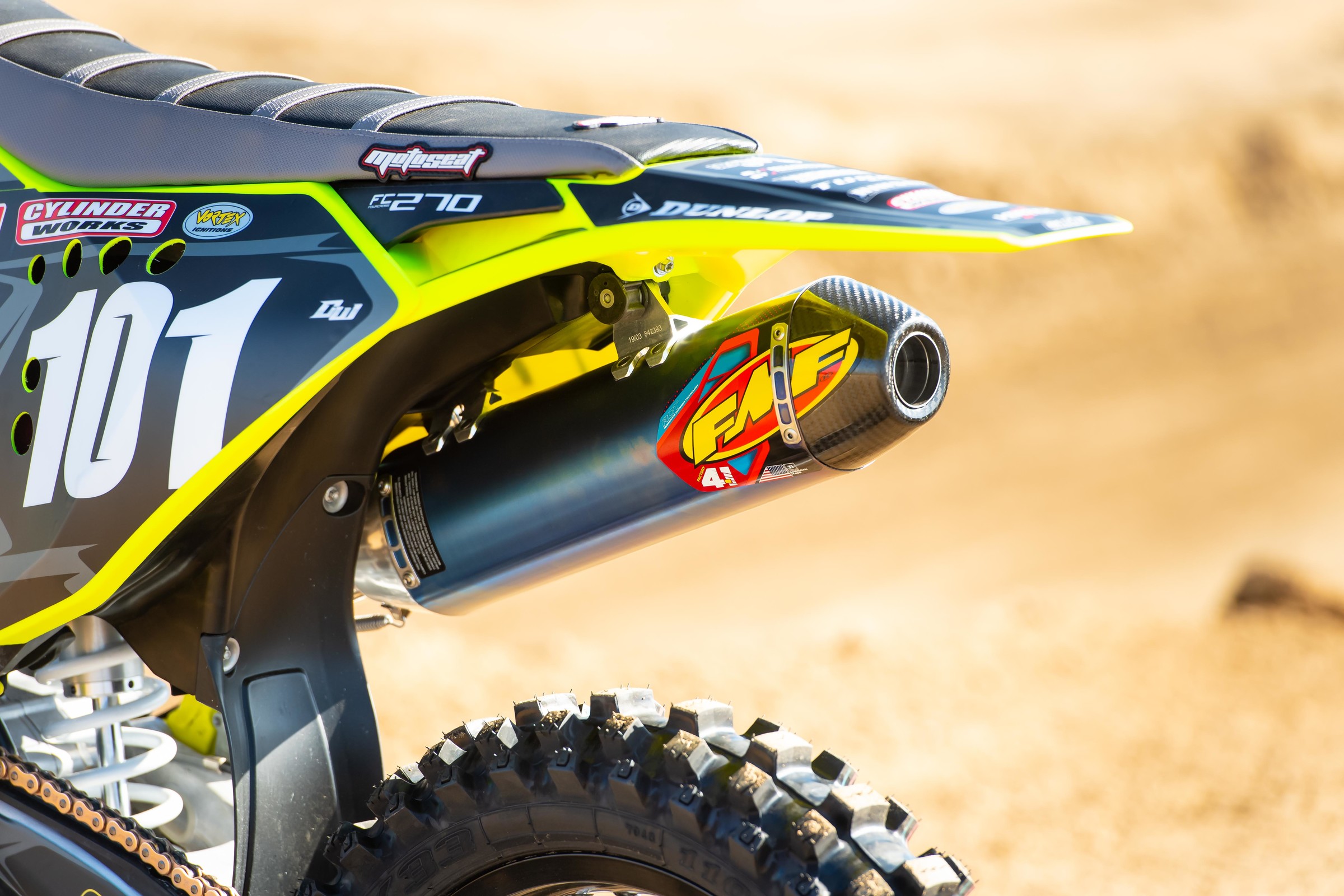

Full Ti Megabomb with RCT 4.1 Muffler
Steering Stem Bearing Kit, Linkage Bearings
Radiator Straightening and Bracing

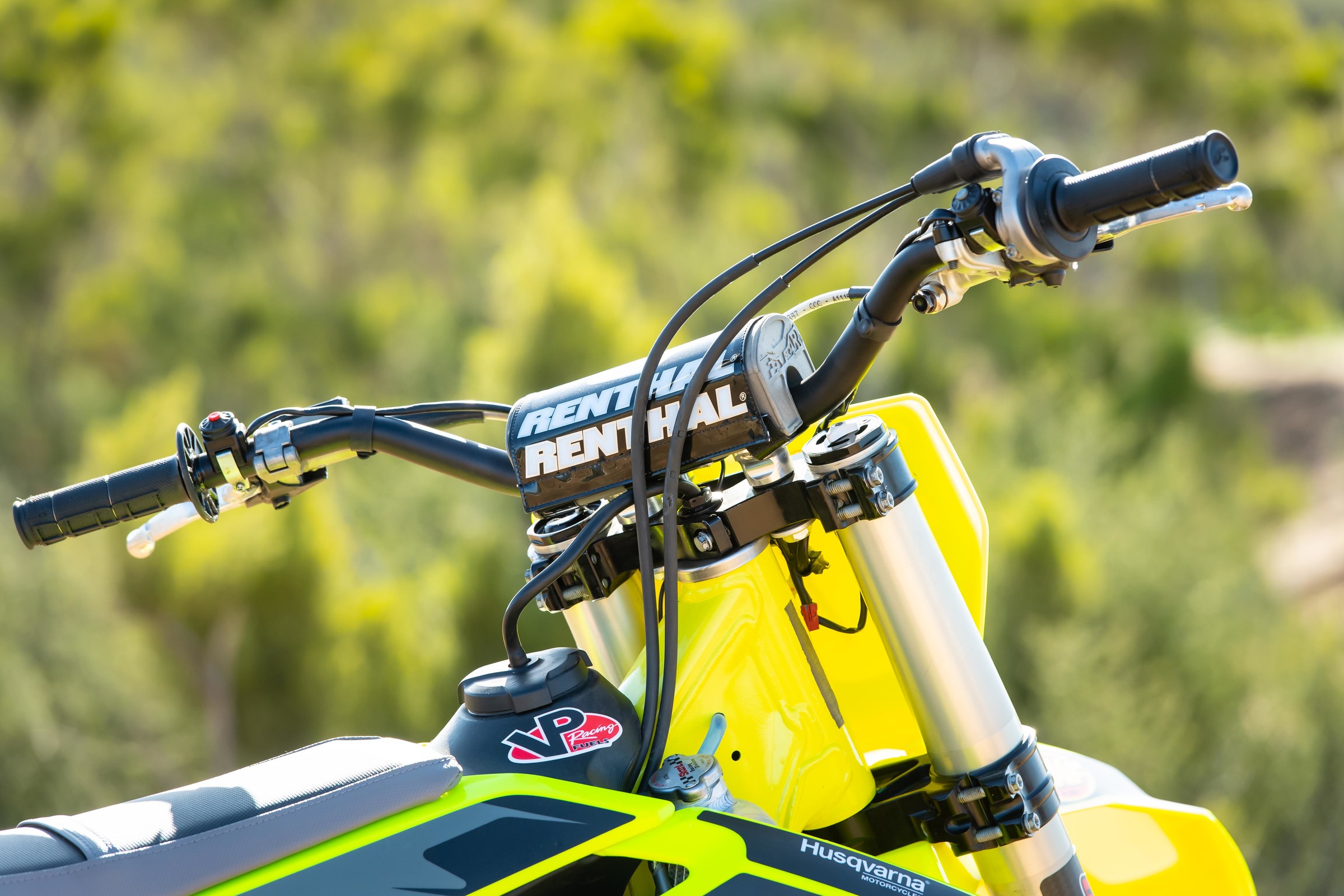

603 Fat Bars, Tacky Grips
MX33 Front 80/100-21
MX33 Rear 110/90-19
Brake Caps, Works Stand II, Brake Rotating Bar Mount, Engine Plugs, Axle Blocks, Holeshot Device
Full Plastic Kit, Mud Flap
San Diego Powder Coating
Sandblasting, Powder with Super-durable Clear, and Race Prep Masking

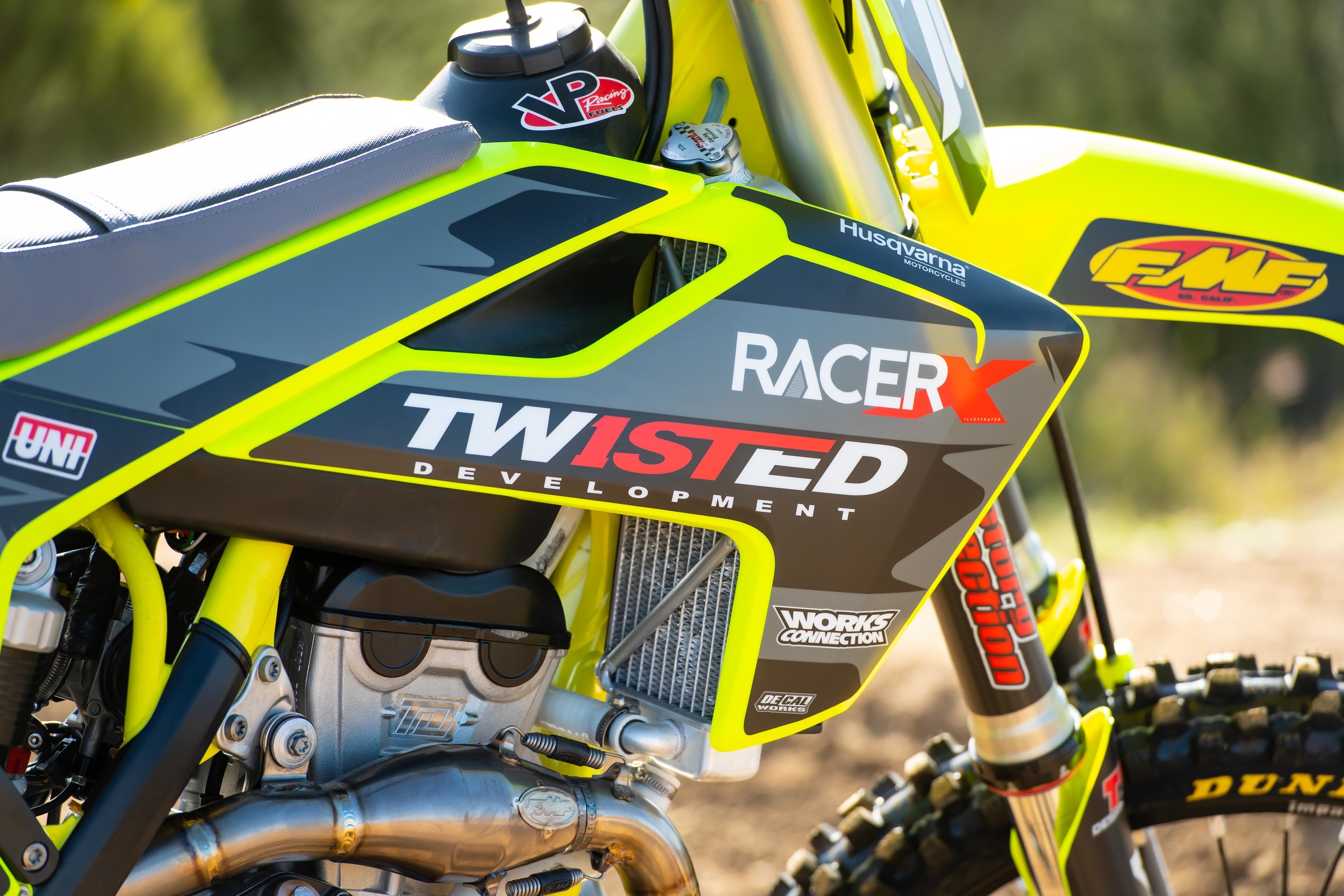

Semi-Custom Graphics Kit, Preprinted Number Plate Backgrounds
Rear Chain block
Custom Cool Seat Cover

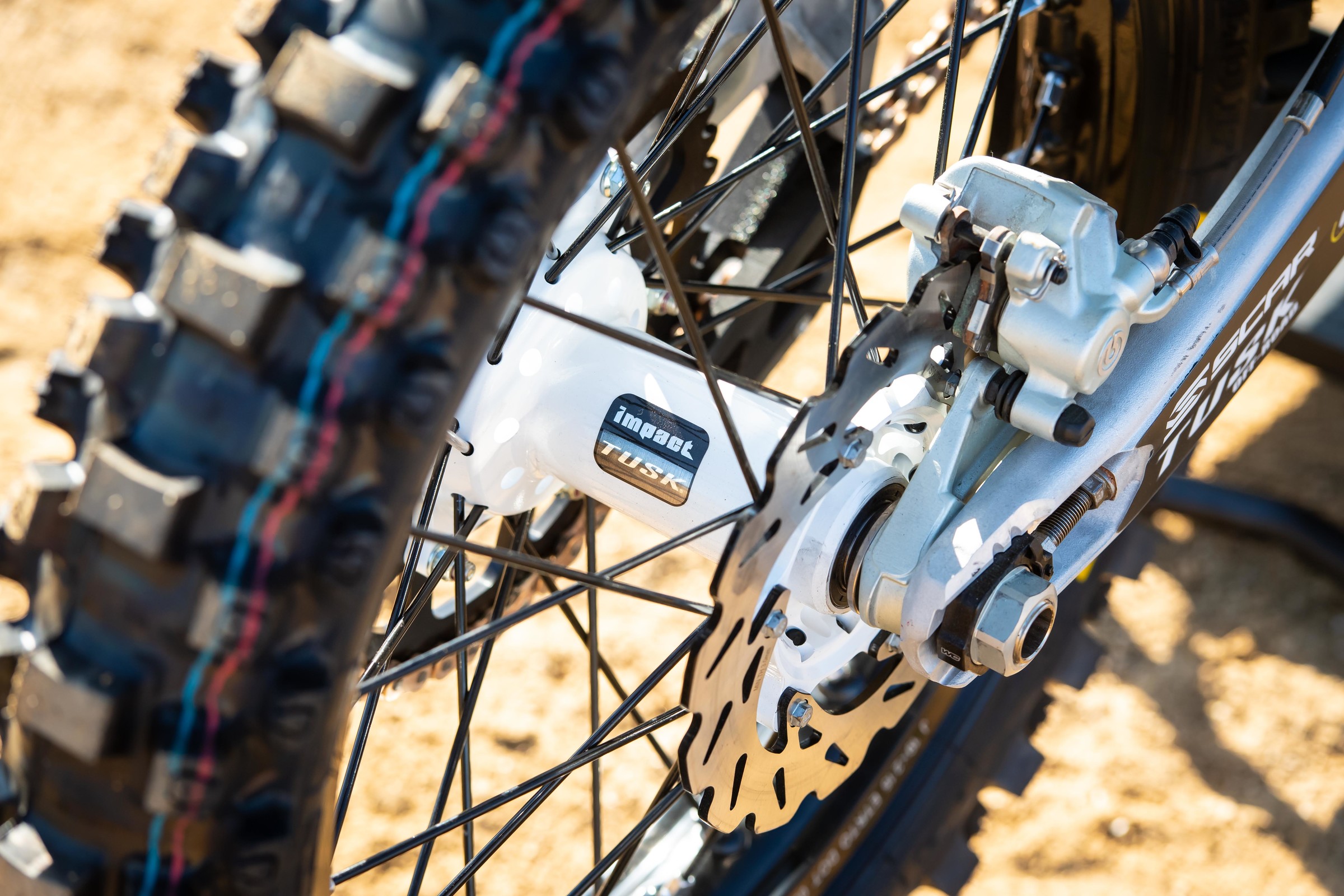

Oversized Front Rotor, Rear Rotor, Complete Wheelset, Sprocket Bolts, Rotor Bolts
Grip Glue, Titan Throttle Tube
Rear Brake Return Spring
Suspension Rebuild and Service
Pro Factory Hoses
Radiator Hoses in White
VP Racing Fuels
T4 or U4.4 Fuel (does run on pump fuel as well)
Husqvarna OEM Parts
New Black Airbox Piece, KTM Black Frame Guards (taller than Husky ones) Two-Stroke Air Filter Cage
