Racer X Films: 2023 Yamaha YZ450F Garage Build
Text: Kris Keefer
Build: Adrian Ciomo / Ride-Engineering.com
Photos: Spencer Owens
Video: Spencer Owens / Simon Cudby

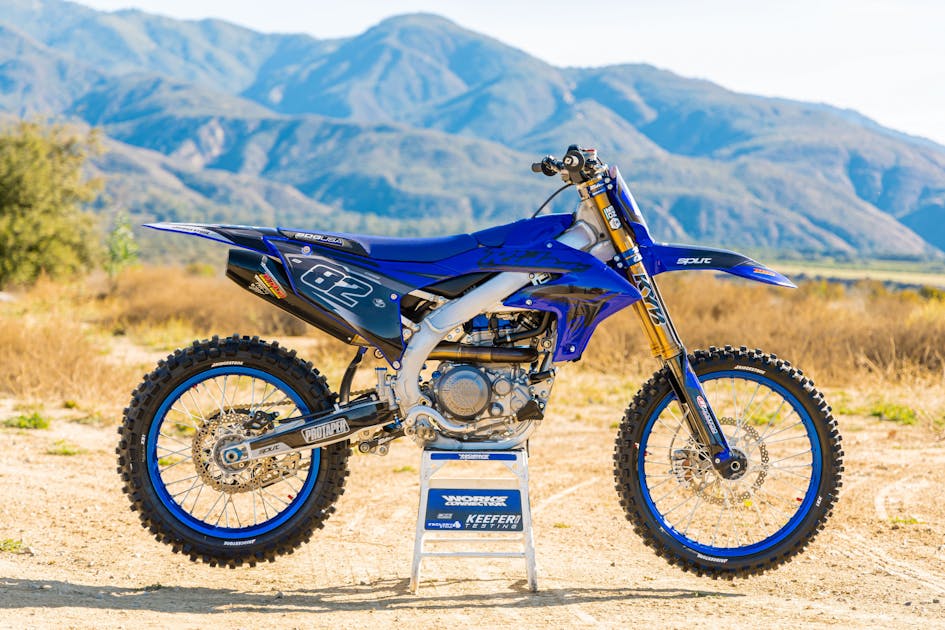

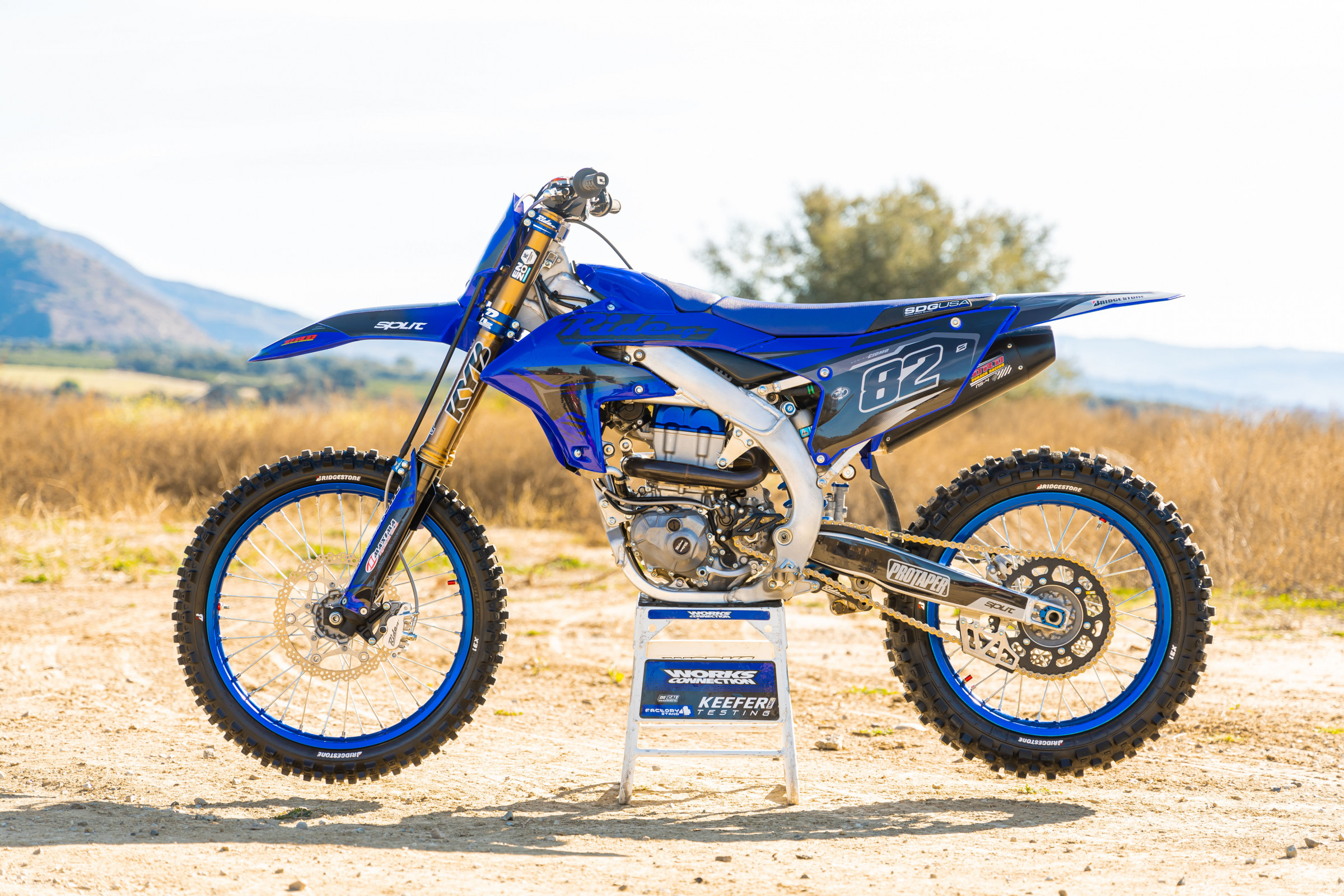

Since we’ve been riding the new Yamaha YZ450F we’ve wanted more stability and just a more planted feel with the new chassis Yamaha created in 2023. We’ve done a 2023 YZ450F “engine” Garage Build with Twisted Development but thought it would be beneficial to do a “chassis” build with the new generation frame. Adrian at Ride Engineering has been working hard on parts for this machine and this is the bike we came up with.
Parts List
Ride Engineering

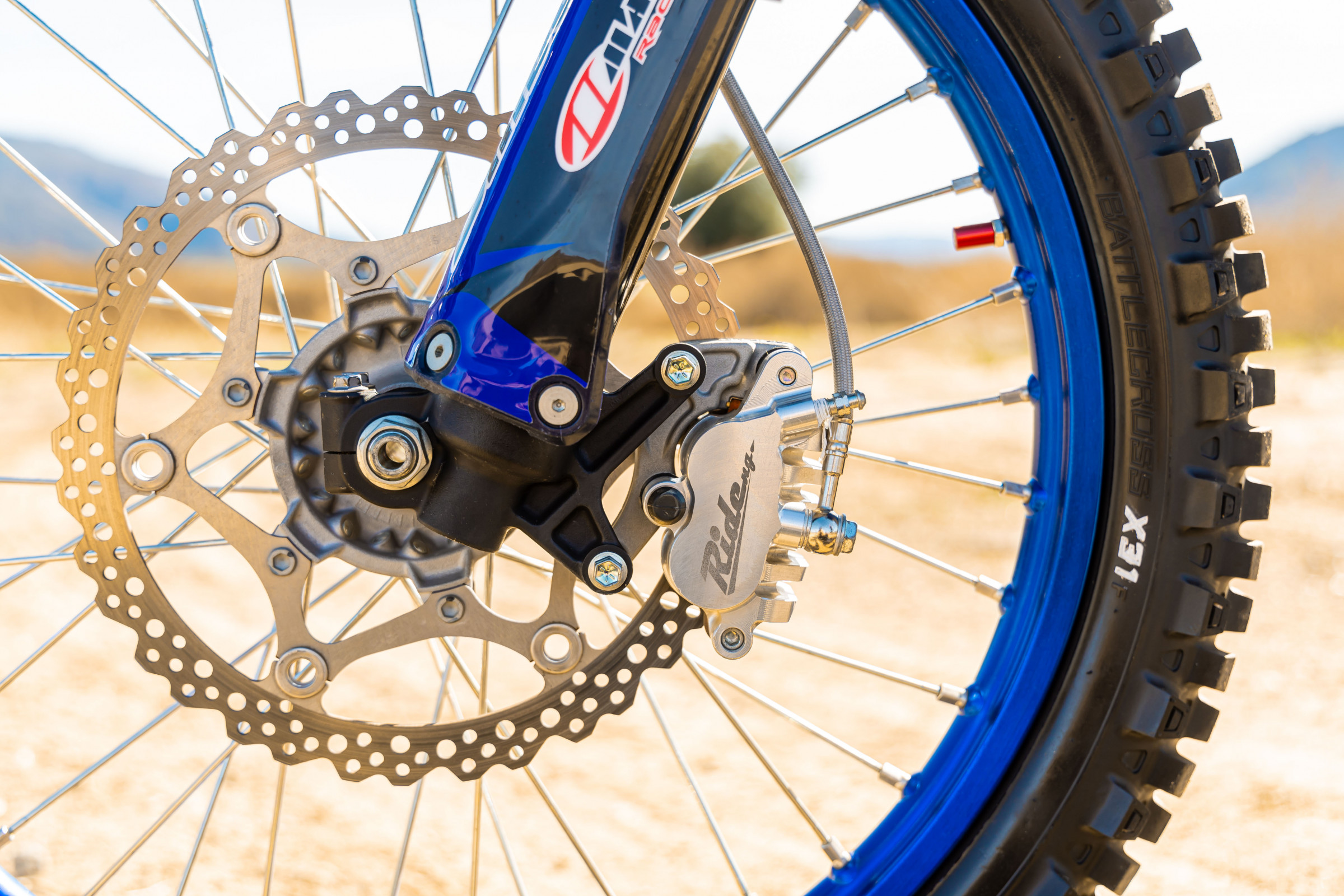

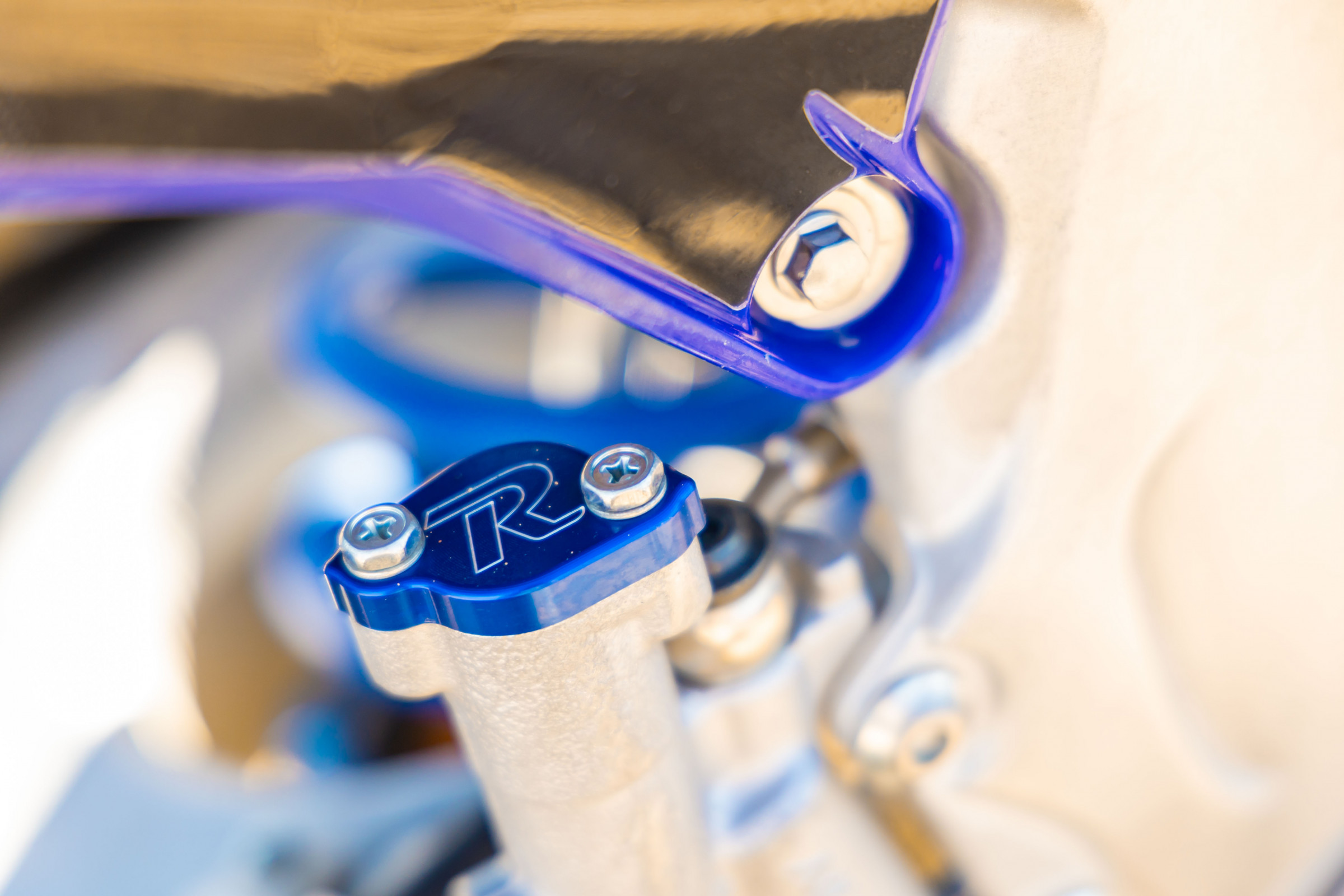

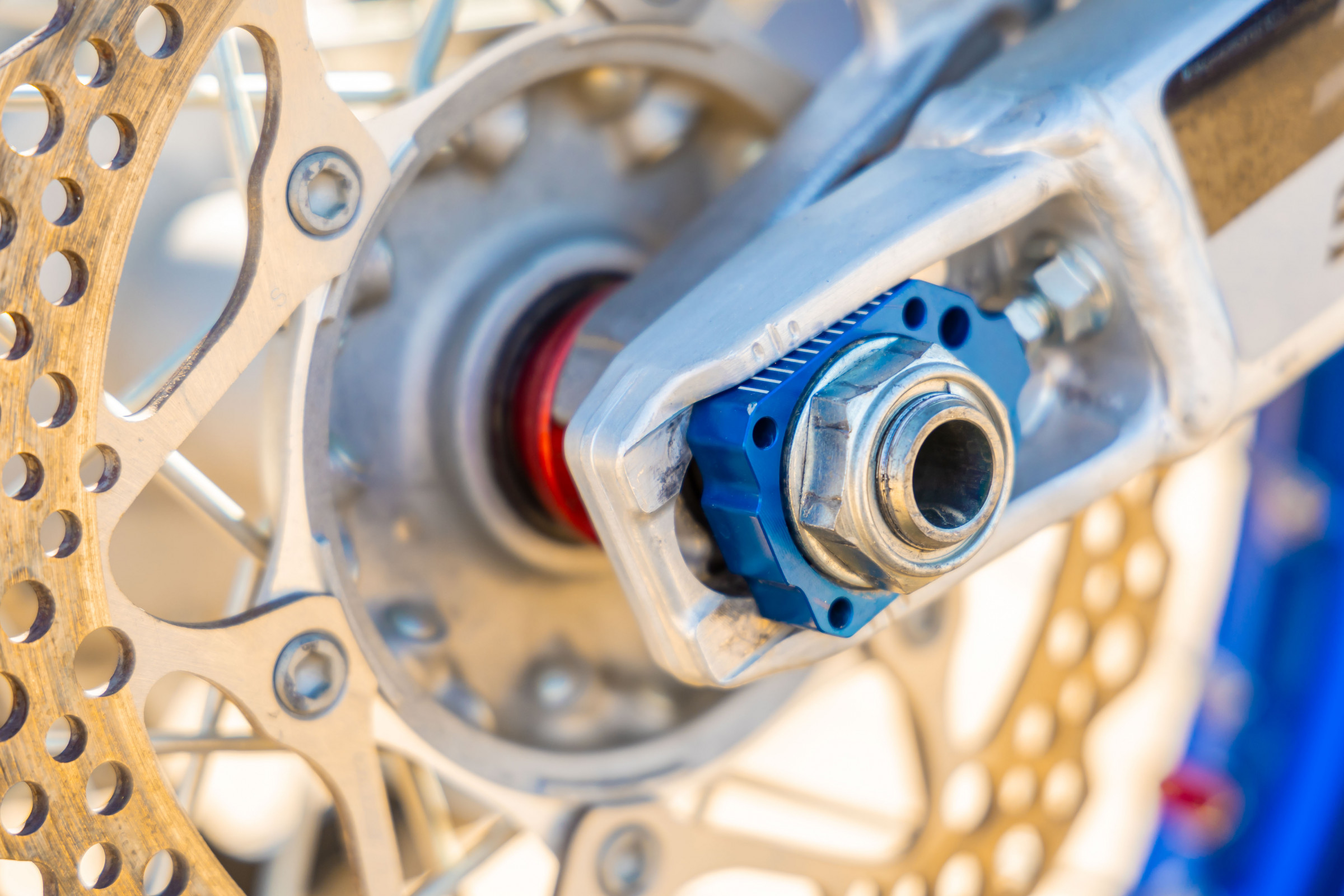

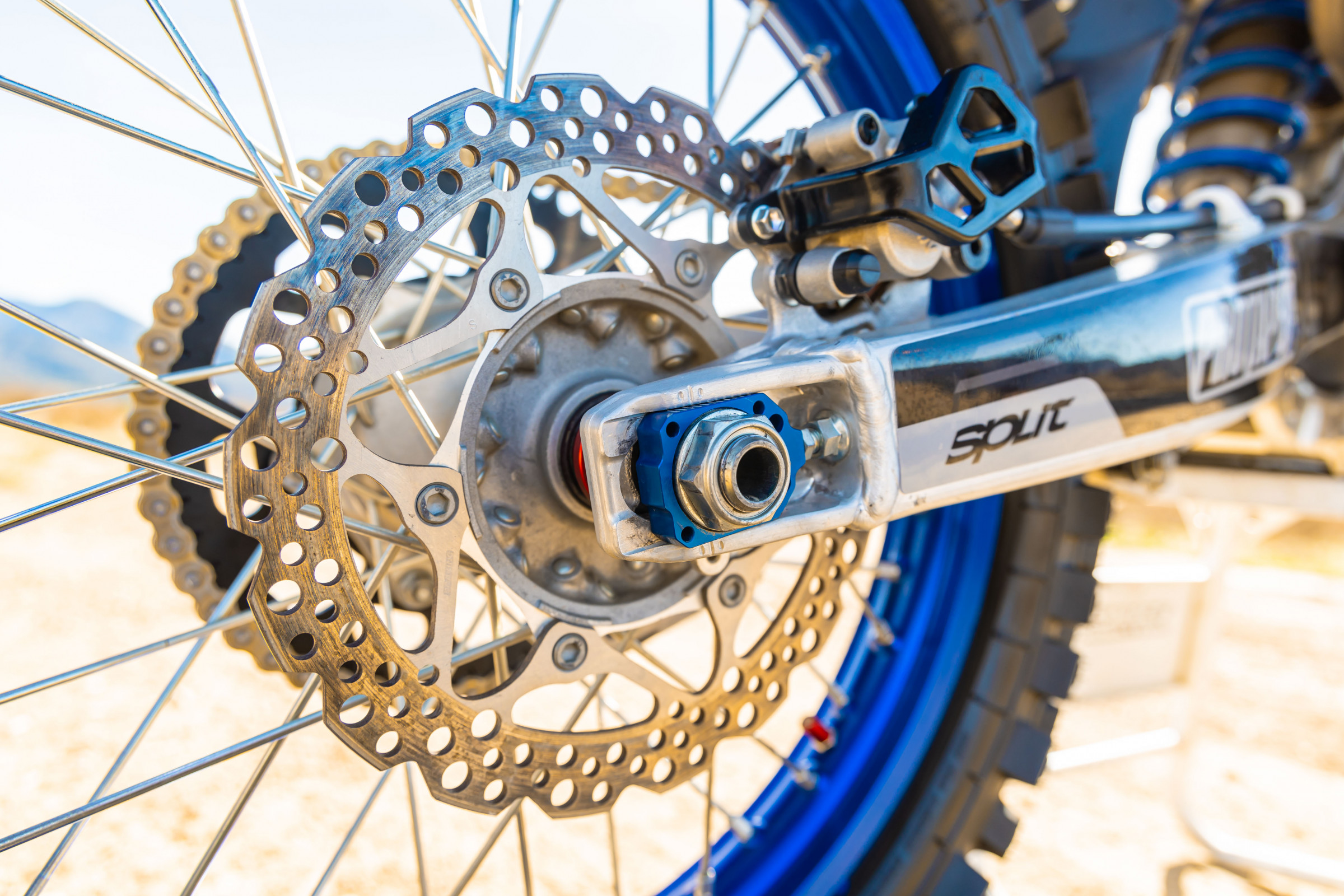

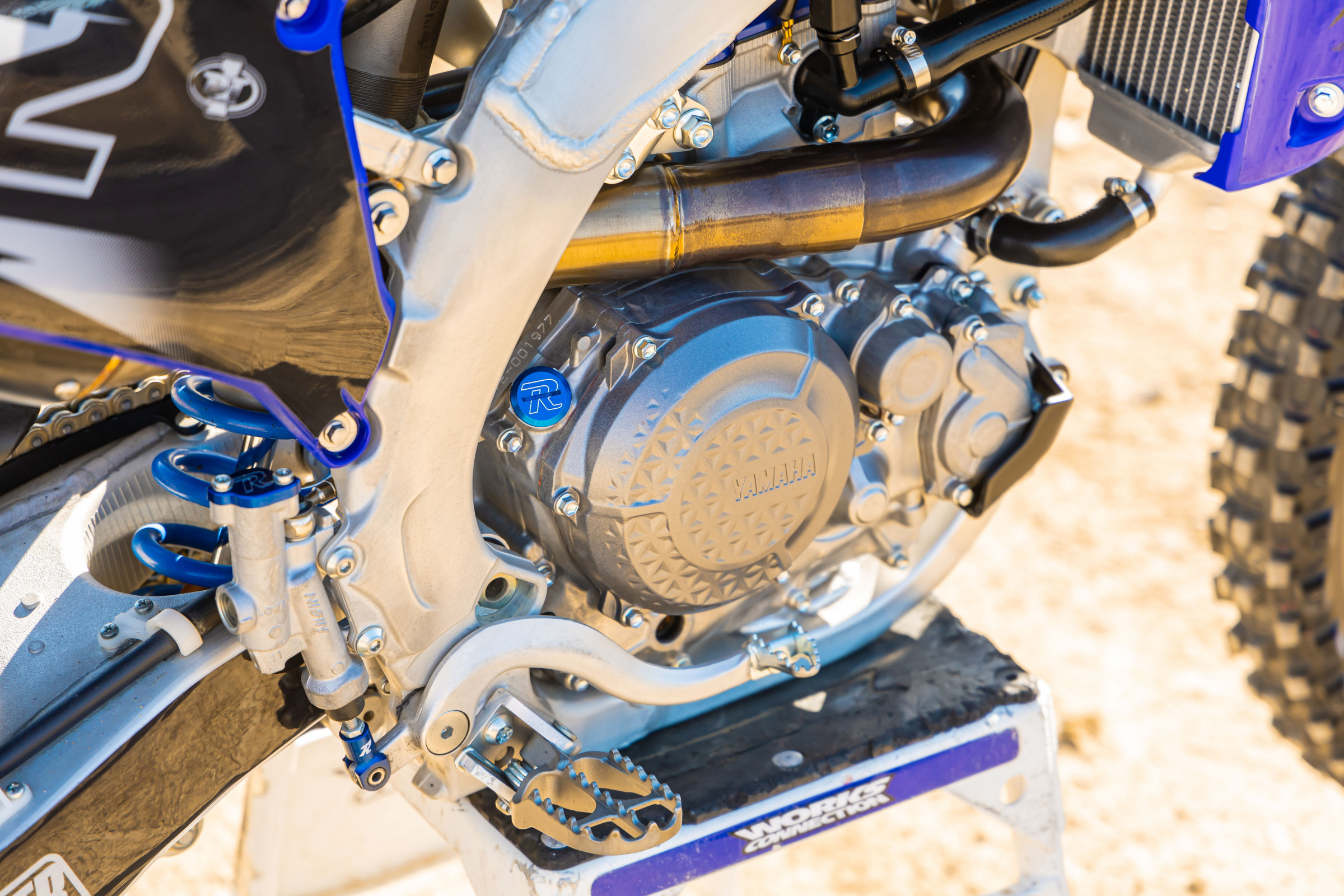

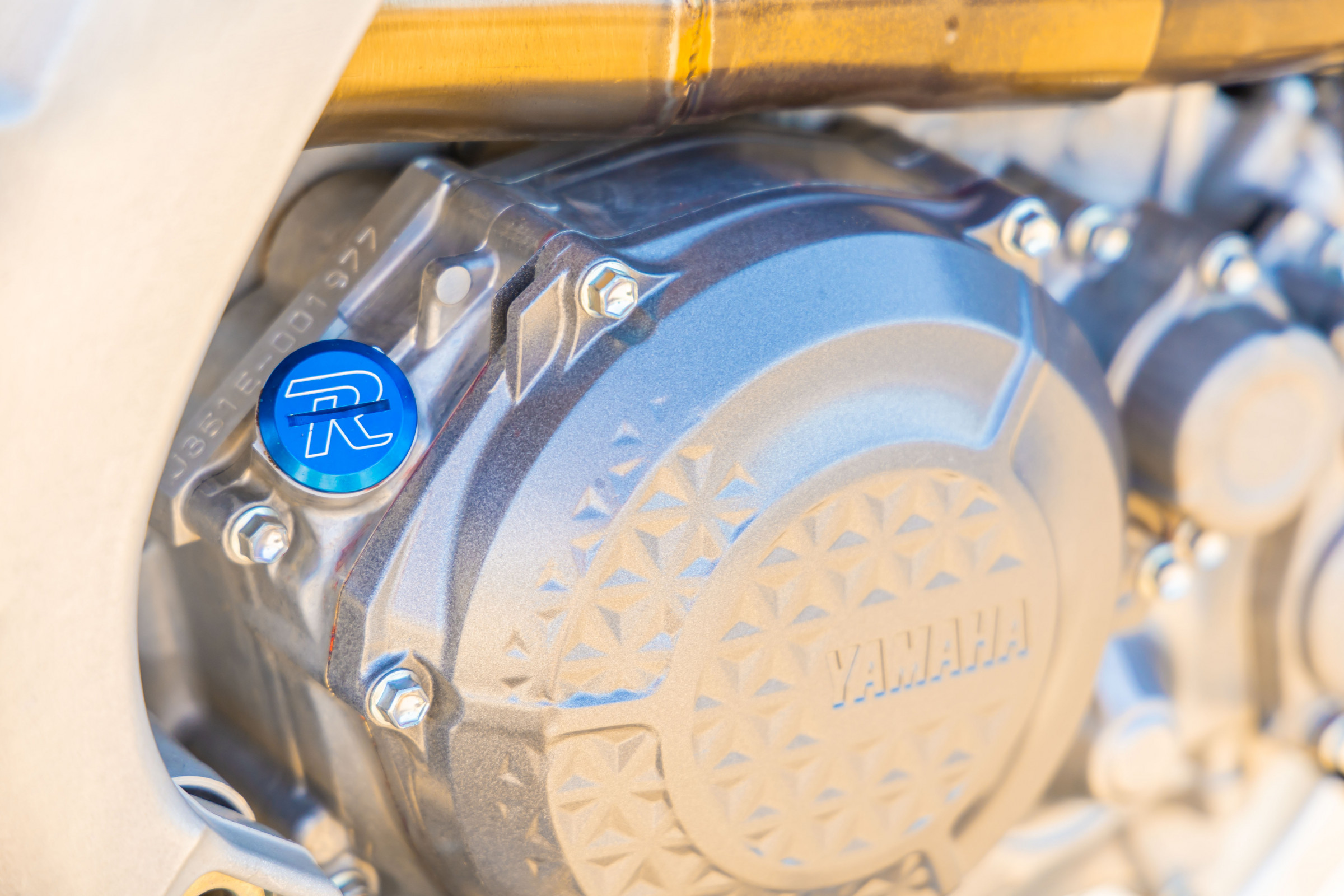

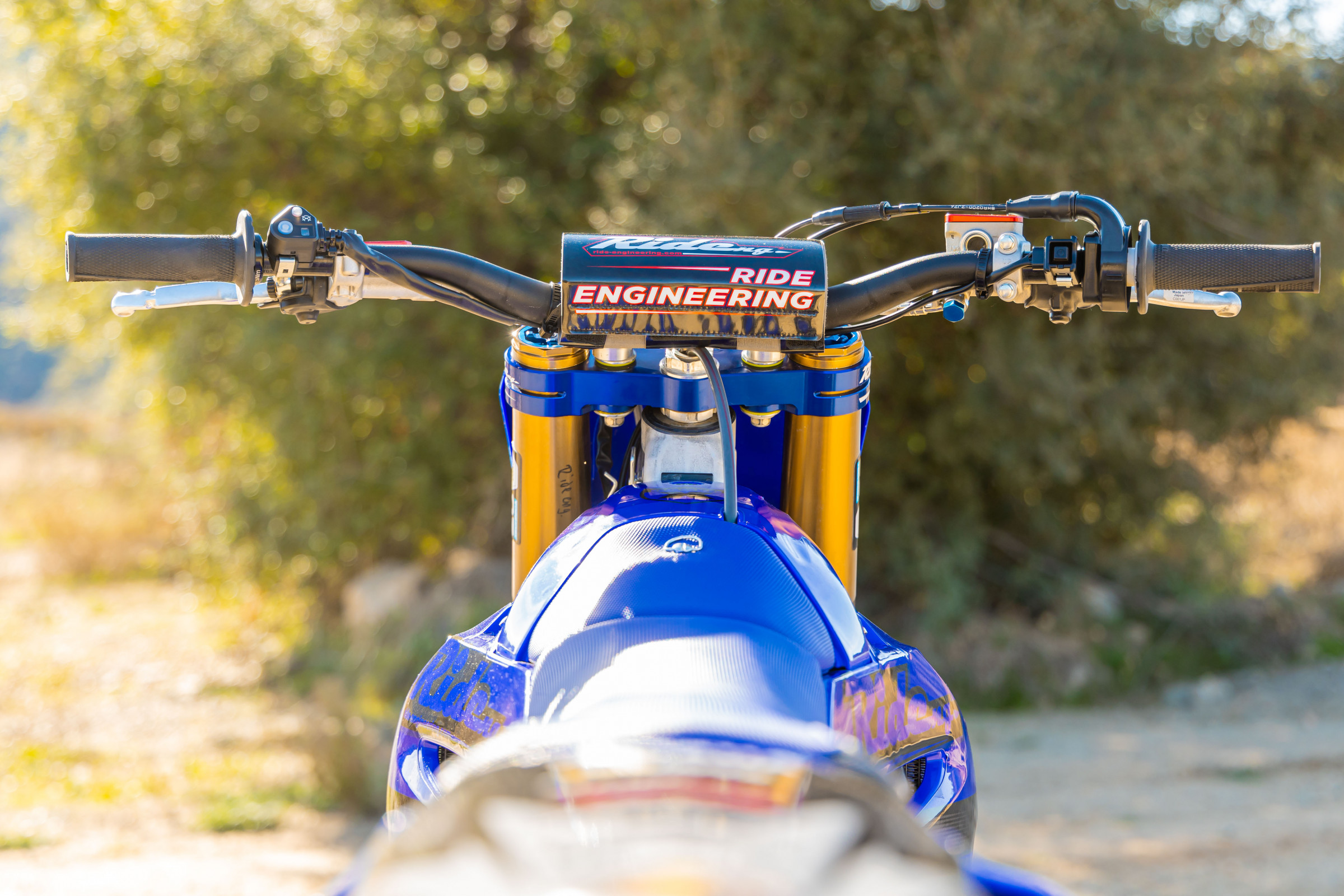

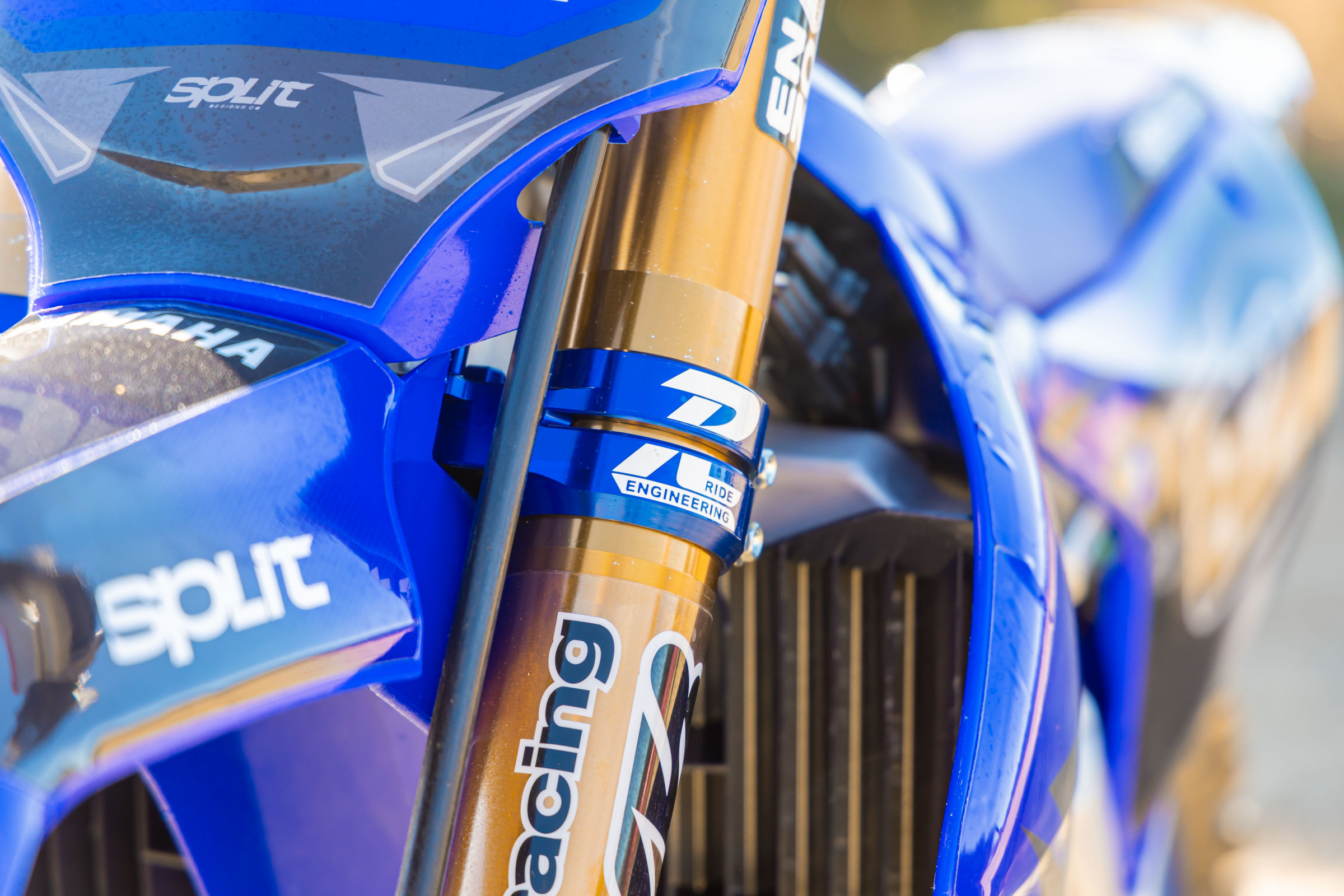

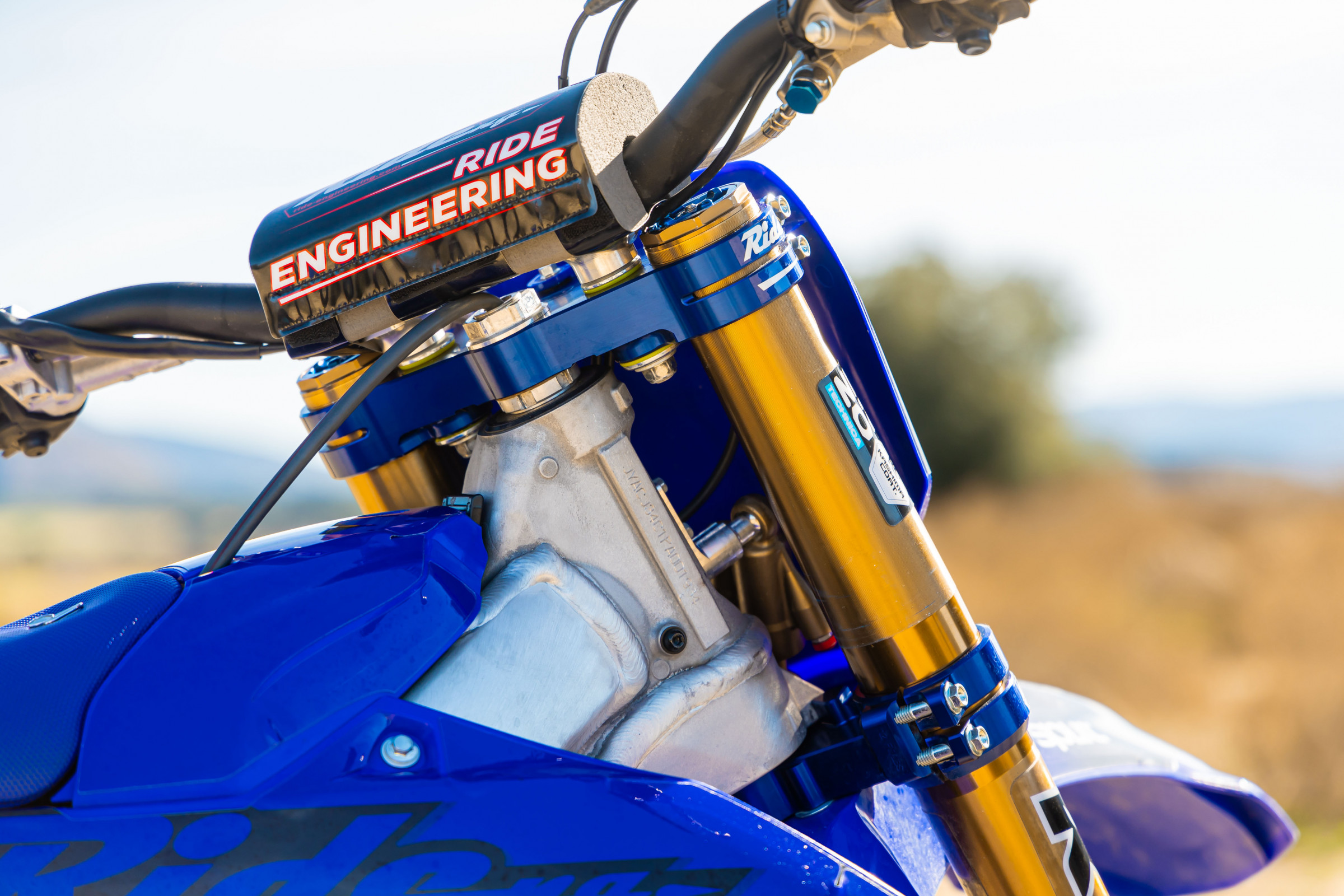

23.5mm Offset Rubber Mounted Split Triple Clamps, One Piece Anti-Twist Bar Mount with Yellow (soft) Polyurethane Cones, Billet Front Brake Caliper with 2023 CRF450R Complete Master Cylinder Assembly and Lever, Braided Steel Front and Rear Brake Lines and Billet Brake Line Mount, Adjustable Performance Link (Track mode or Trail mode), Billet Master Cylinder Covers: Front (CRF), Rear (YZF), and Clutch (Brembo), Flush Mount Oil Cap and Engine Plugs, Billet Brake Clevis and Reversible Axle Blocks, Front and Rear Locking Wheel Spacers and Billet Rim Lock and Valve Caps
Enzo Racing

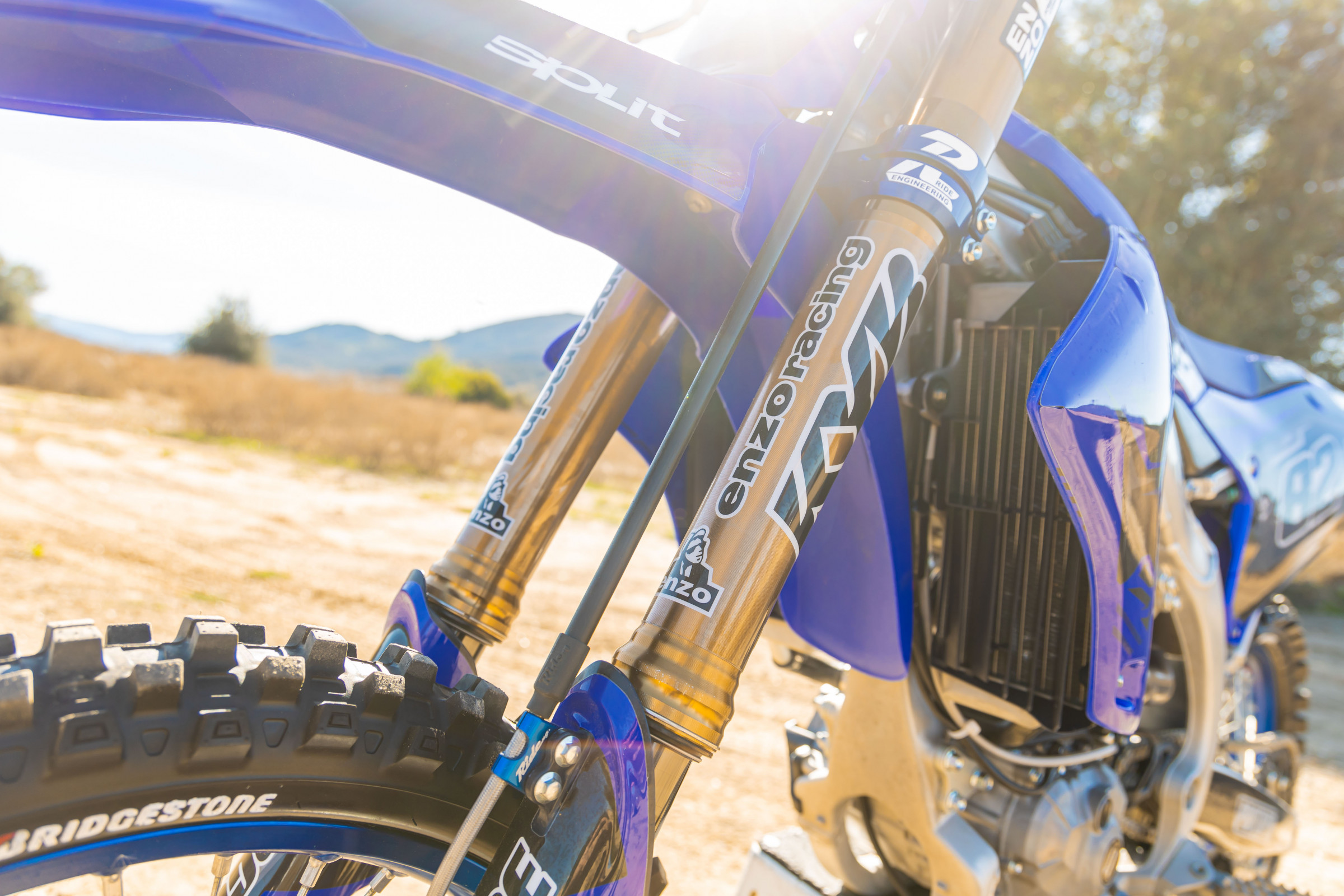

KYB Fork and Shock Re-Valve, Kashima Upper Tubes, DLC Fork Sliders, Billet Compression Dials, Springs for 145 lb. Rider: 4.7N/mm Fork Springs and 53N/mm Shock Spring
Dubach Racing Development

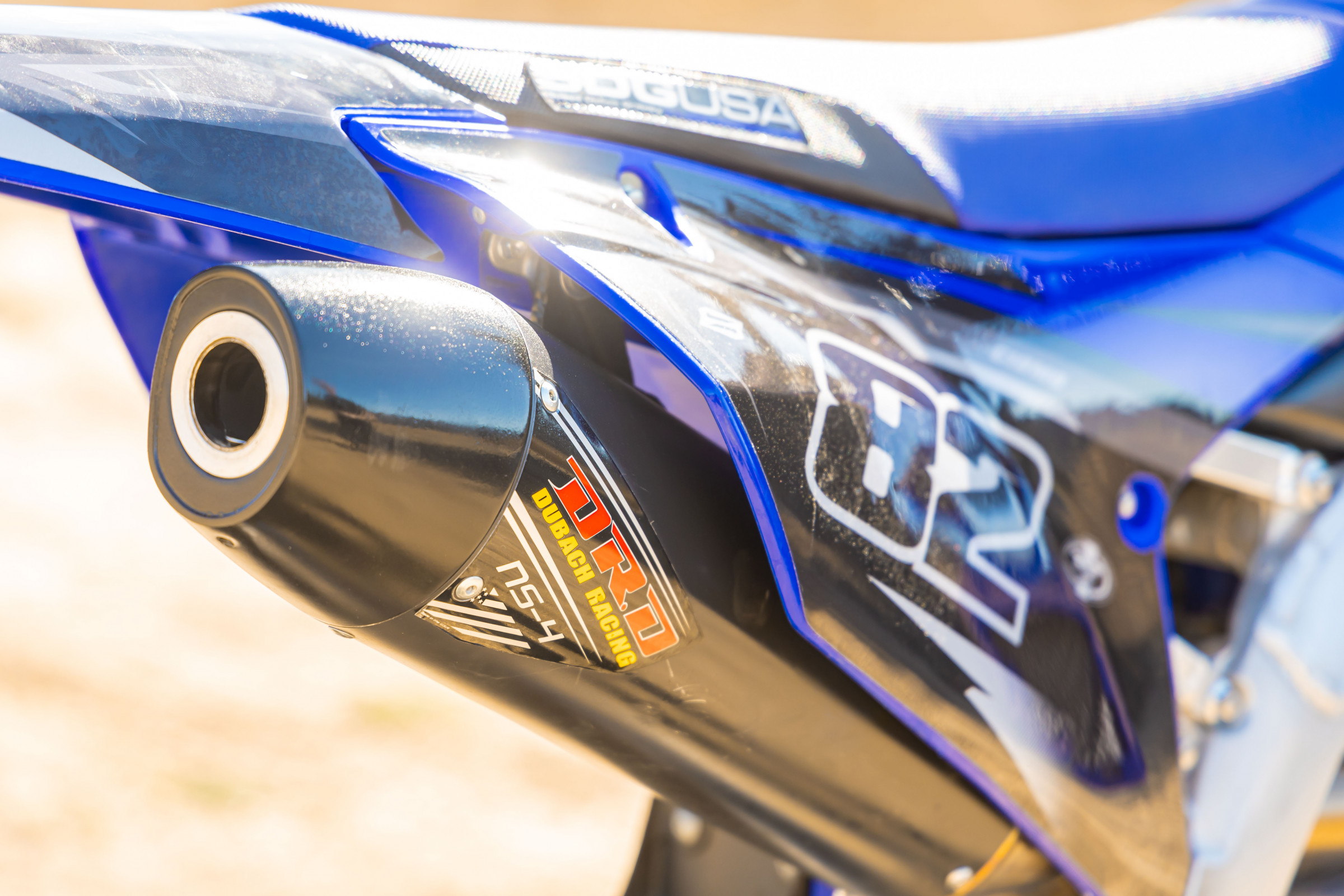

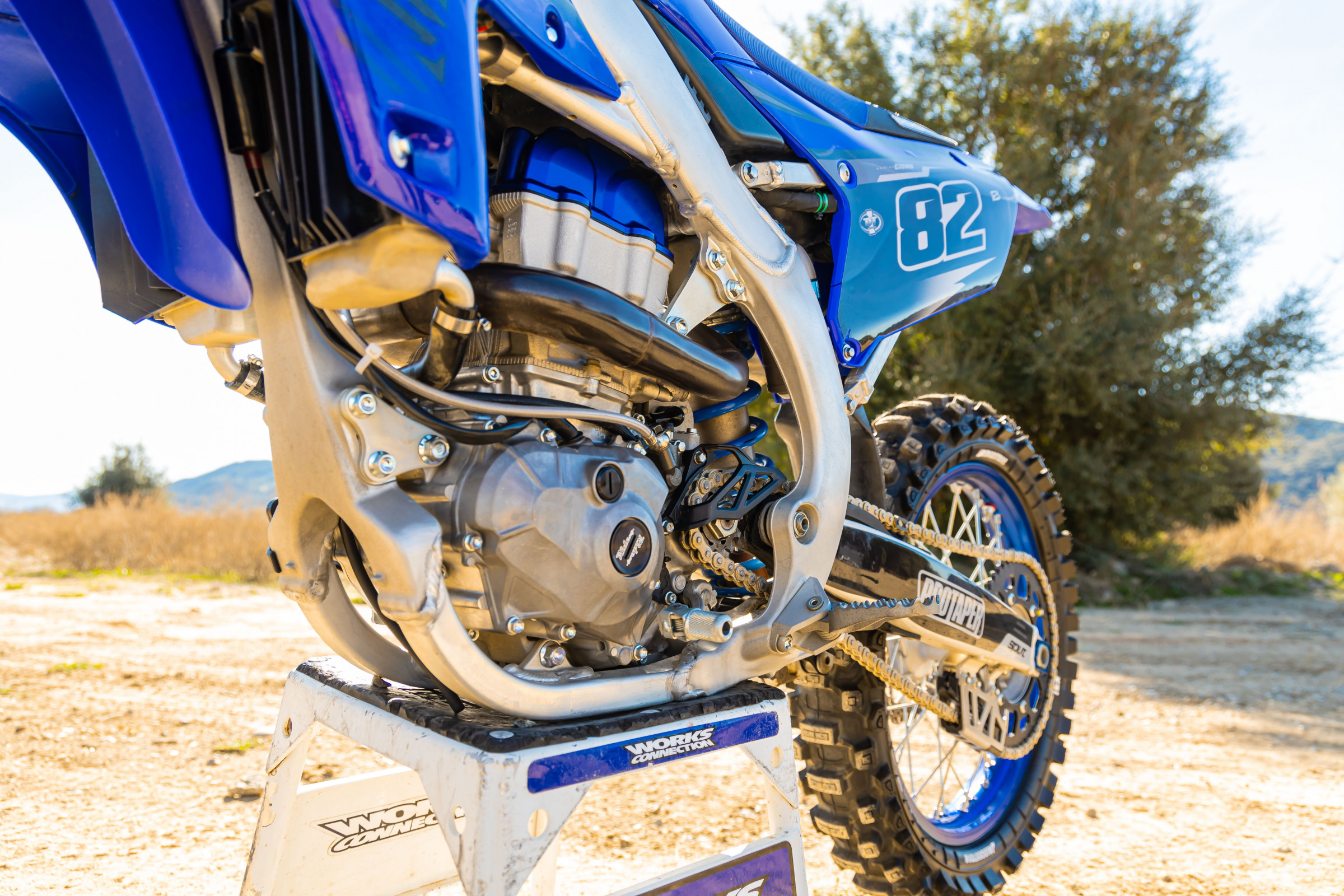

Full Stainless-Steel NS-4 Exhaust System
Bridgestone
X31 Front, X31 Rear Tires
bridgestonemotorcycletires.com
ProTaper

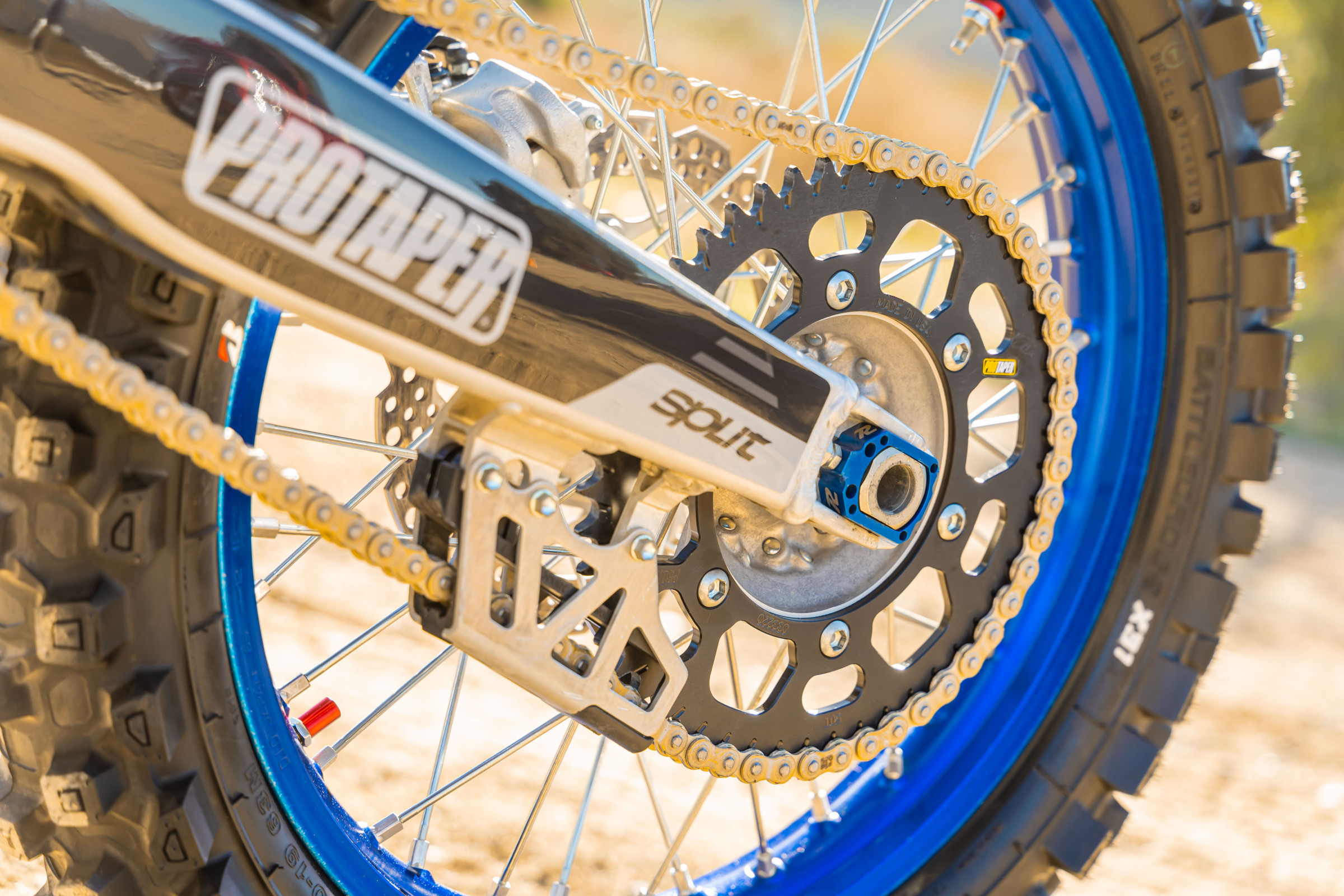

13/49 Sprockets, 520 MX Chain and Evo Handlebars (Husqvarna bend)

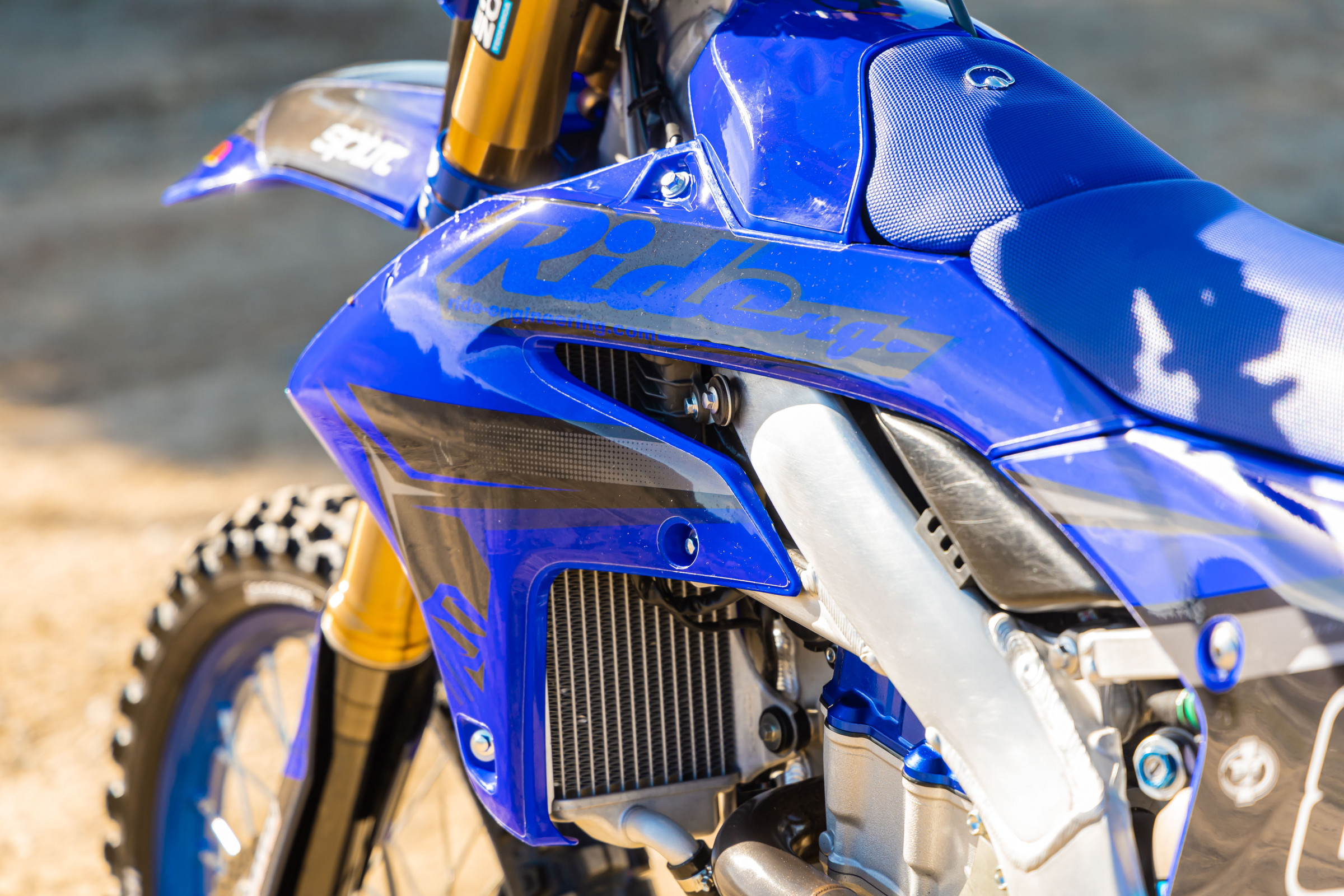

Split Design
Graphics
SDG

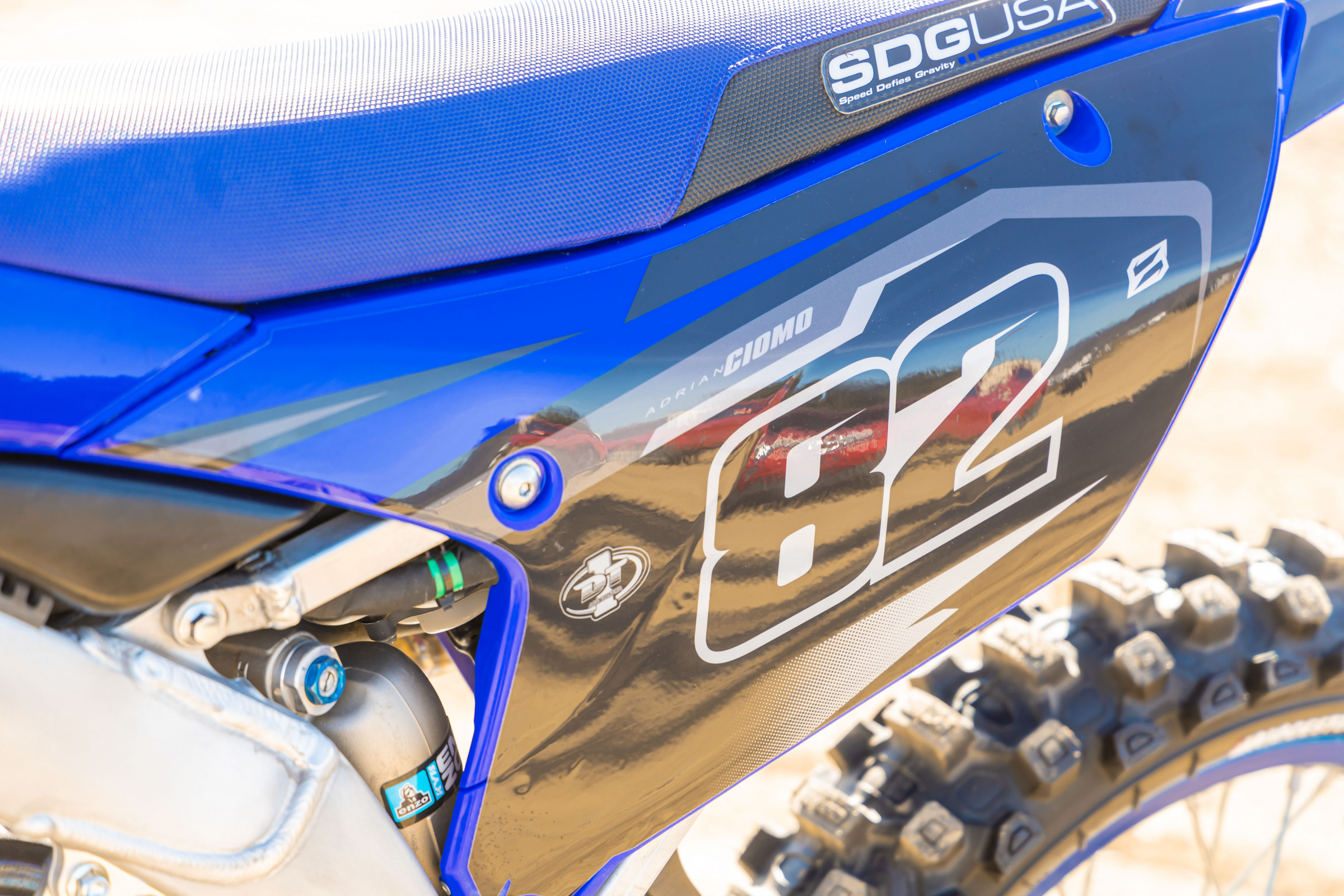

Custom Seat Cover
DT1 Air Filters
Air Filter
Maxima Racing Oils
Premium 10/40 Engine Oil
GYTR

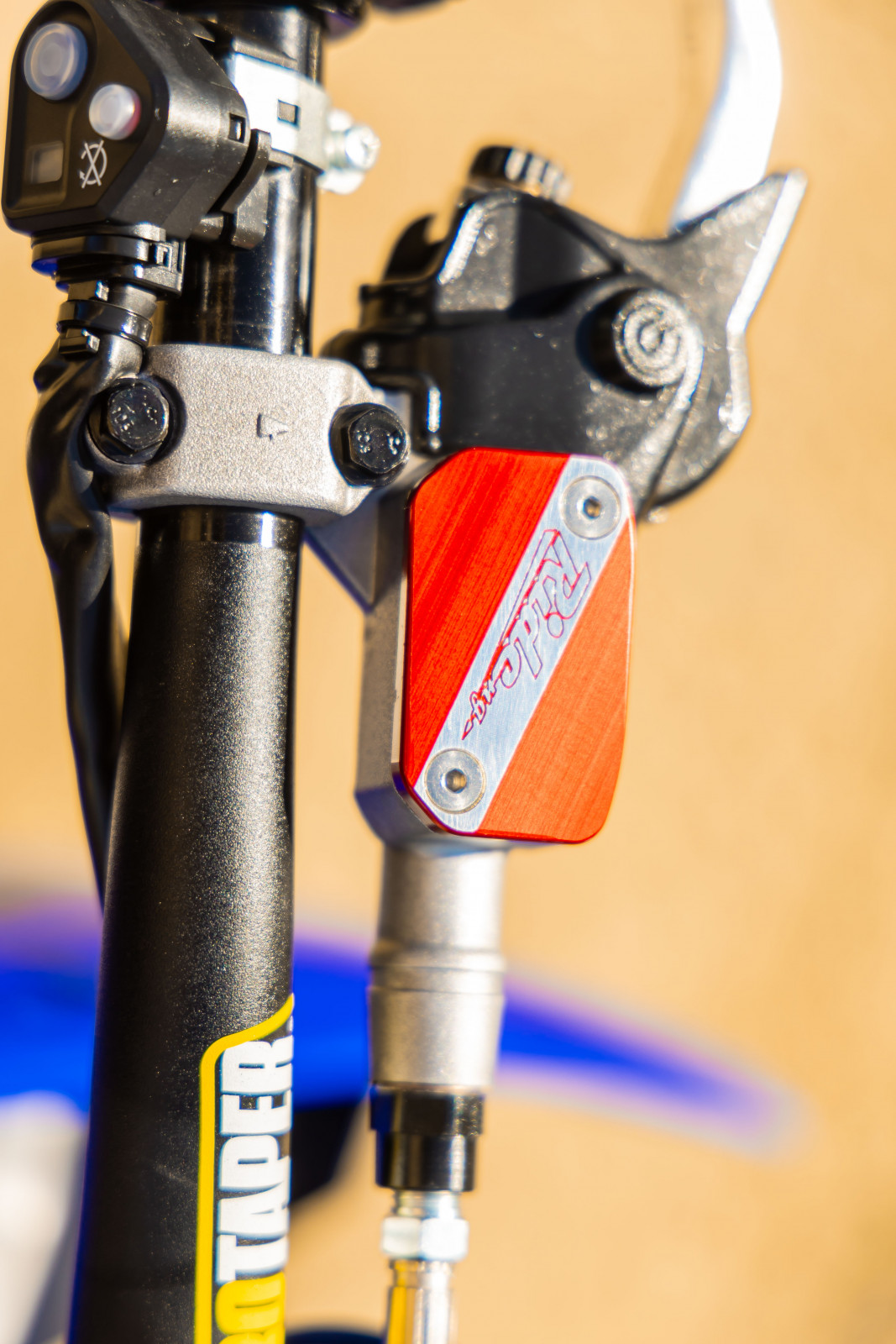

Brembo Hydraulic Clutch
