At a glance, a piston looks simple. A round piece of aluminum that moves up and down in a cylinder. How complicated could it really be? At Vertex, pistons are treated as one of the most precisely engineered components. Every curve, taper, alloy choice, and micron of clearane is designed with one goal in mind: surviving extreme temperatures, pressures, and RPM while delivering consistent, reliable performance. The result is a piston that looks simple, but is anything but.
Pistons Live in an Uneven World
In a running engine, a piston never heats evenly. The crown, exposed directly to combustion, runs significantly hotter than the skirt and pin bore. If a piston were machined as a perfect cylinder, it would expand unevenly as temperatures rise, creating excess friction, accelerated wear, or even seizure during warm-up.
That’s why a Vertex piston is intentionally designed to not be perfectly cylindrical.

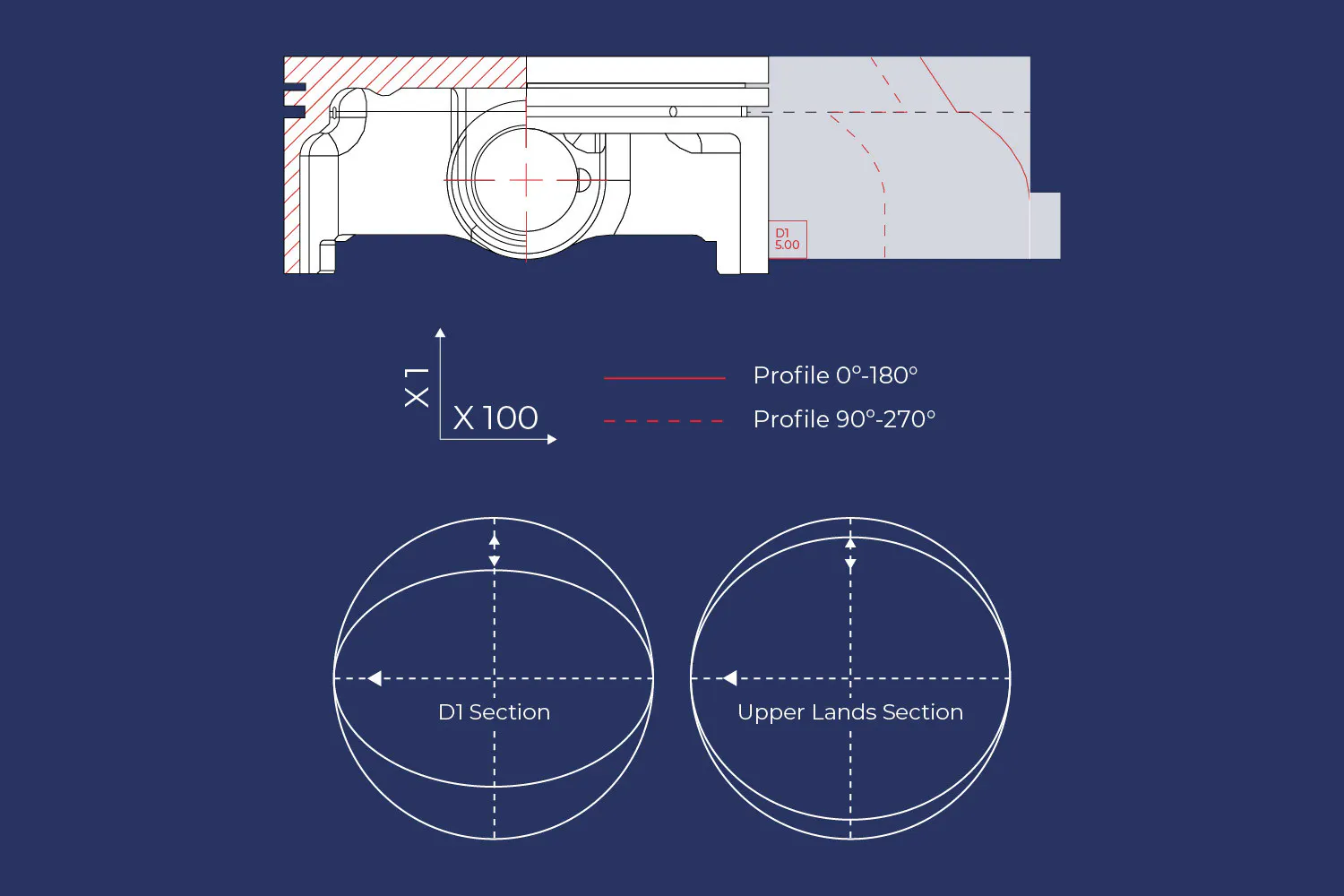

From the factory, Vertex pistons are machined with a complex profile designed to compensate for thermal expansion:
• The lower skirt is straight. This is the correct measurement point for piston to cylinder wall clearance.
• Above that, the piston tapers toward the ring groove, then changes shape again near the crown.
• From bottom to top, dimensional differences can approach 0.5 mm.
As temperatures rise, the piston expands into its ideal operating shape and since every engine behaves differently, each piston is designed with a dedicated profile to match each engine’s specific characteristics.
In other words, it’s designed to be correct when it’s hot—not when it’s sitting cold.
Controlling Expansion Starts with the Alloy
Geometry is part of the equation. Material choice is just as critical. Vertex pistons are made from carefully selected aluminum-silicon alloys, with silicon content ranging roughly from 12% to 21% depending on application. Higher silicon content reduces expansion; lower silicon allows more malleability with greater expansion.
Applications like snowmobiles (with extreme temperature swings from sub-zero starts to full operating heat) demand precise control of thermal expansion. The alloy selection ensures the piston has enough room to grow without ever growing too fast.
The goal is simple: stable clearance from cold start to full throttle.
Designed for Heat, Built to Microns
Every Vertex piston is developed in-house using advanced finite element analysis methods to map stress under extreme operating conditions.
Manufacturing follows the same philosophy. Vertex uses robotic gravity casting to control pour speed, volume, and temperature for consistent material density. Even then, the first pistons from every batch are scrapped while molds thermally stabilize at their optimal temperature—because consistency matters at the micron level.
Vertex has also invested in extremely specialized machining equipment capable of tolerances measured in microns, including machines that precisely shape the piston pin bore. These gains are small, expensive, and nearly invisible, but they add up where it counts.
Built to Race. Trusted as OEM Replacement.
From the way each piston manages heat and expansion, to the micron-level precision behind its production, Vertex applies the same uncompromising standard across every product.
That commitment extends beyond racing, with Vertex pistons trusted in OEM applications through partnerships with manufacturers.
A Vertex piston may not be perfectly round. But it’s perfectly engineered.
