Build: Proven Moto and Spencer Luczak
Photos: Simon Cudby

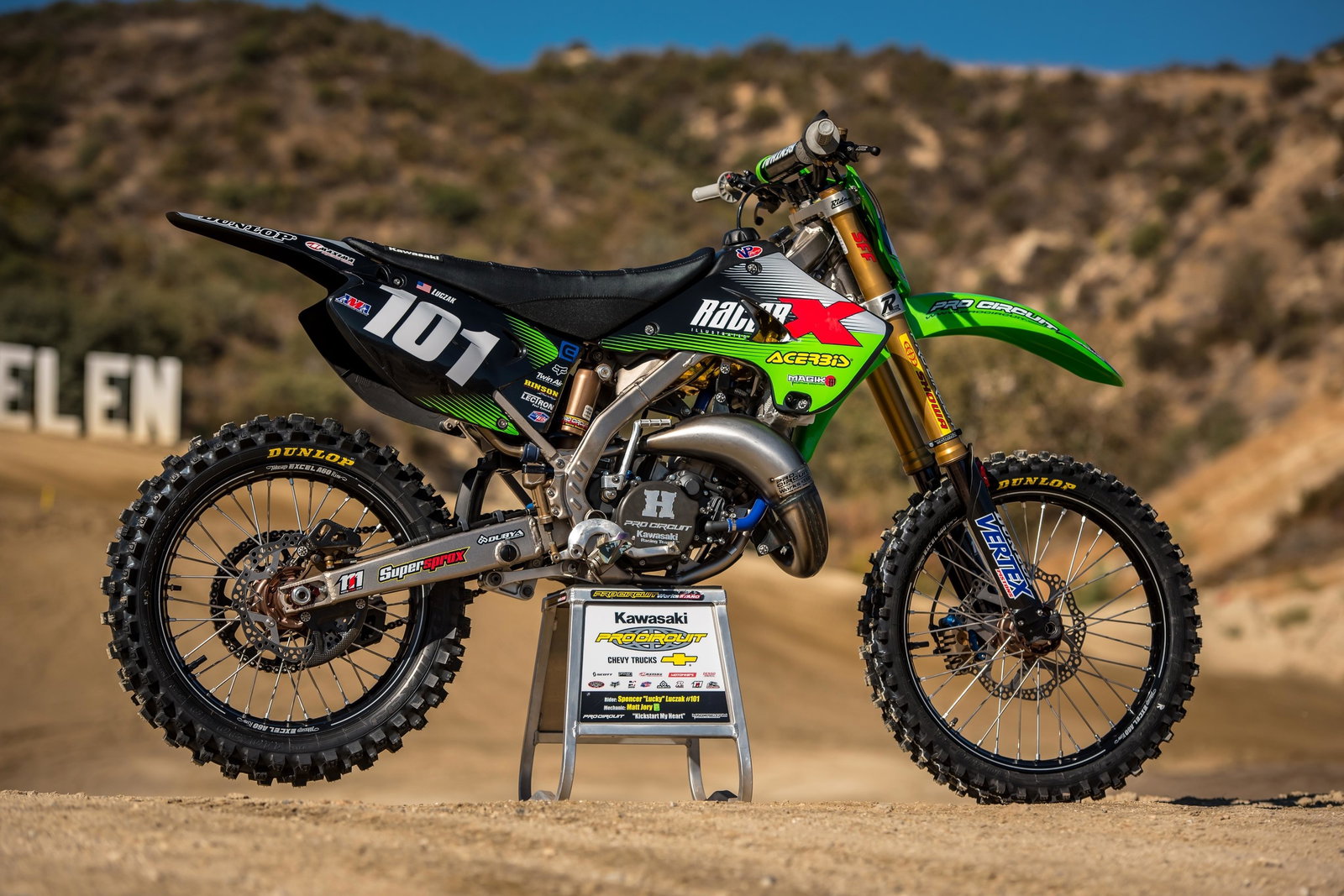

This bike has a sentimental factor for owner Spencer Luczak: his father raced Kawasakis, and this was a tribute to both him and Mitch Payton.
Everything was built and dyno tested by Matt Jory at Proven Moto in Utah. Matt was the mastermind that helped Spencer piece together the vision. He spent hours and hours custom fitting parts that were difficult to line up. He tidied up the motor and did all the factory mechanic work at his shop. This project took two years. Proven Moto also helped order and source all the OEM bolts, gaskets, air boot, etc.
Piston Kit (Ring, Pin and Clips)

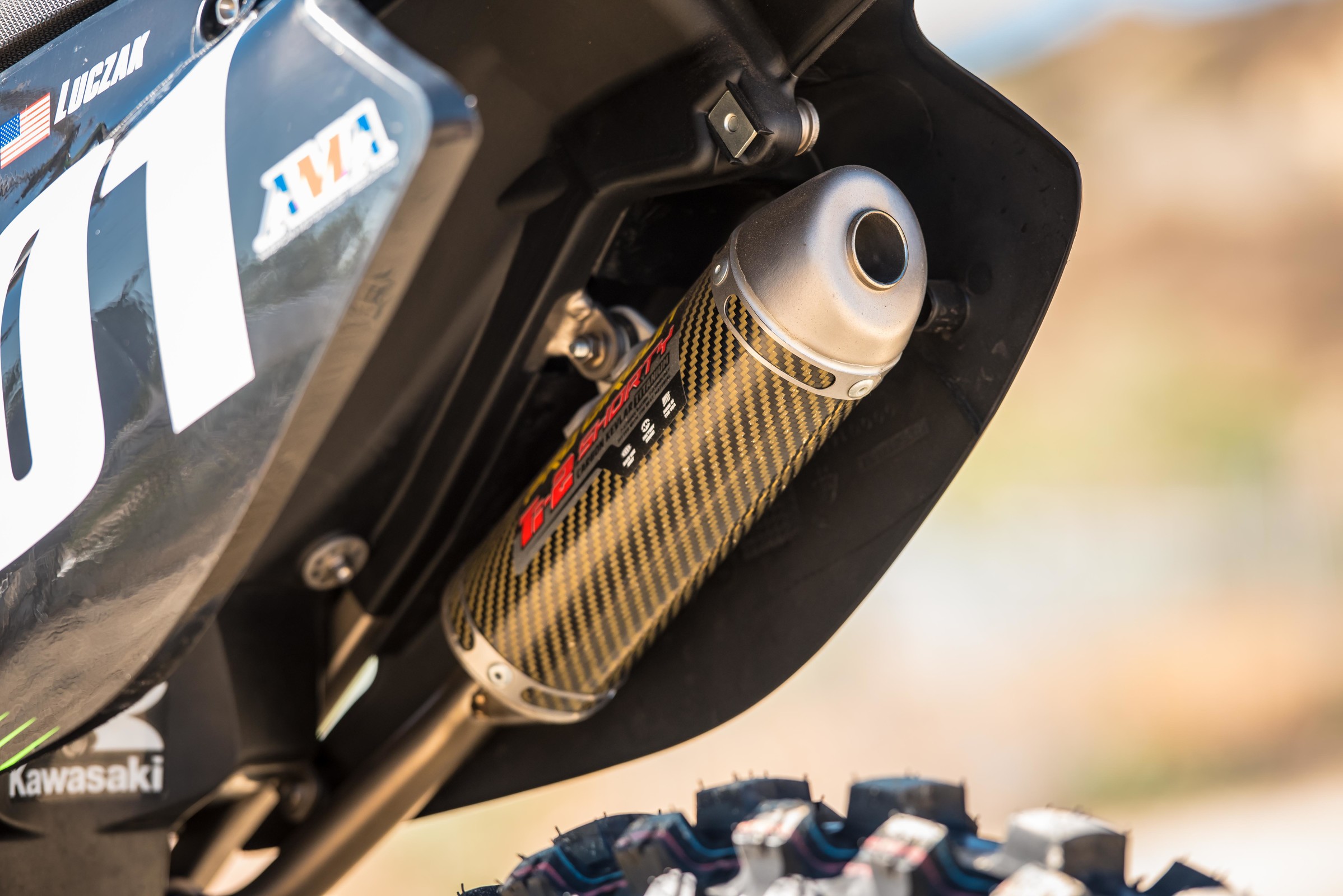

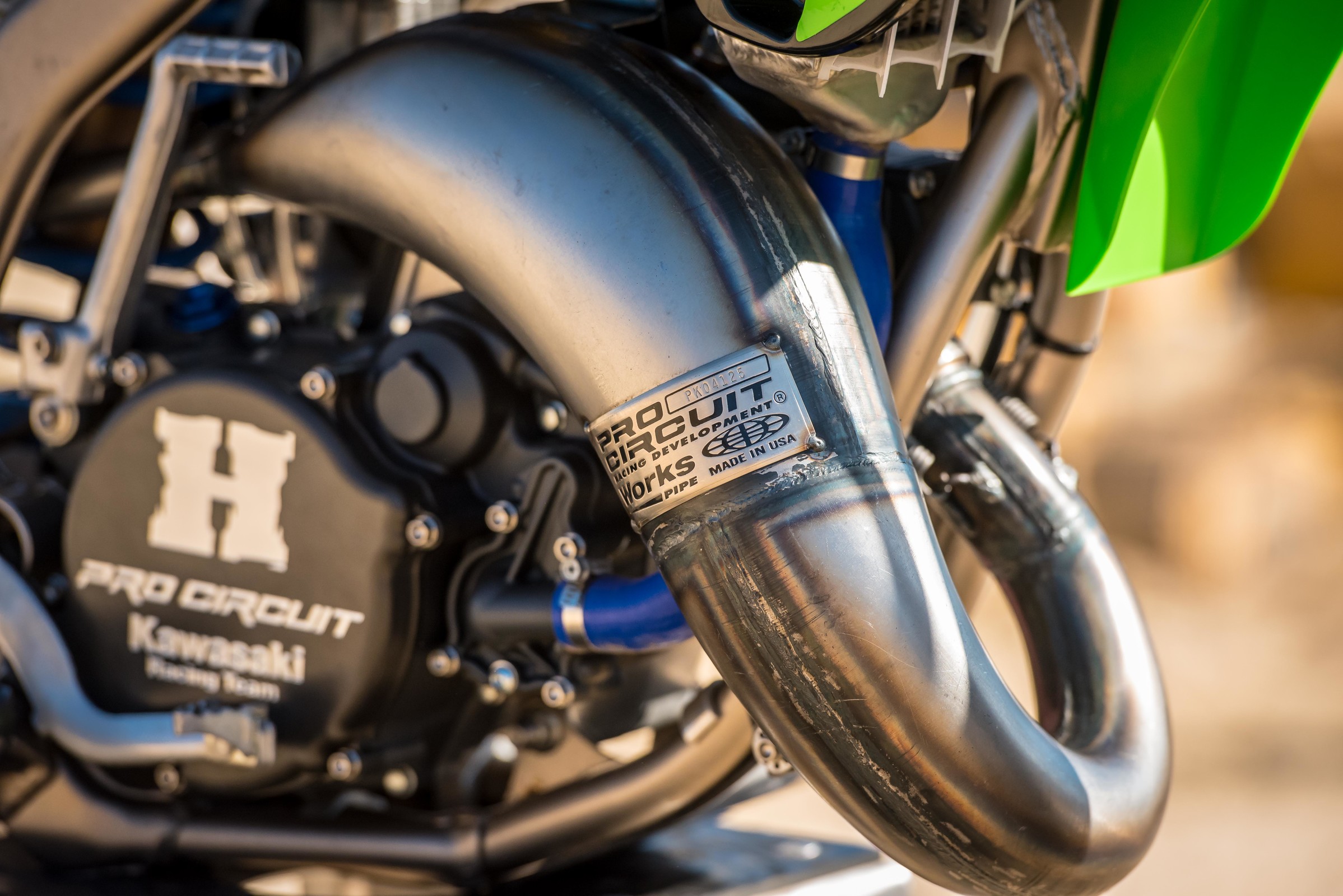

Works Pipe and Carbon Silencer, Axle Blocks, Throttle Tube, Carburetor Ventilation Canister. They also helped determine the proper VP Racing Fuel and oil mixture to run based on James Stewart's old race motor, suspension was re-valved and set up, 2011 KXF Spring SFF Fork, all A-kit internals.

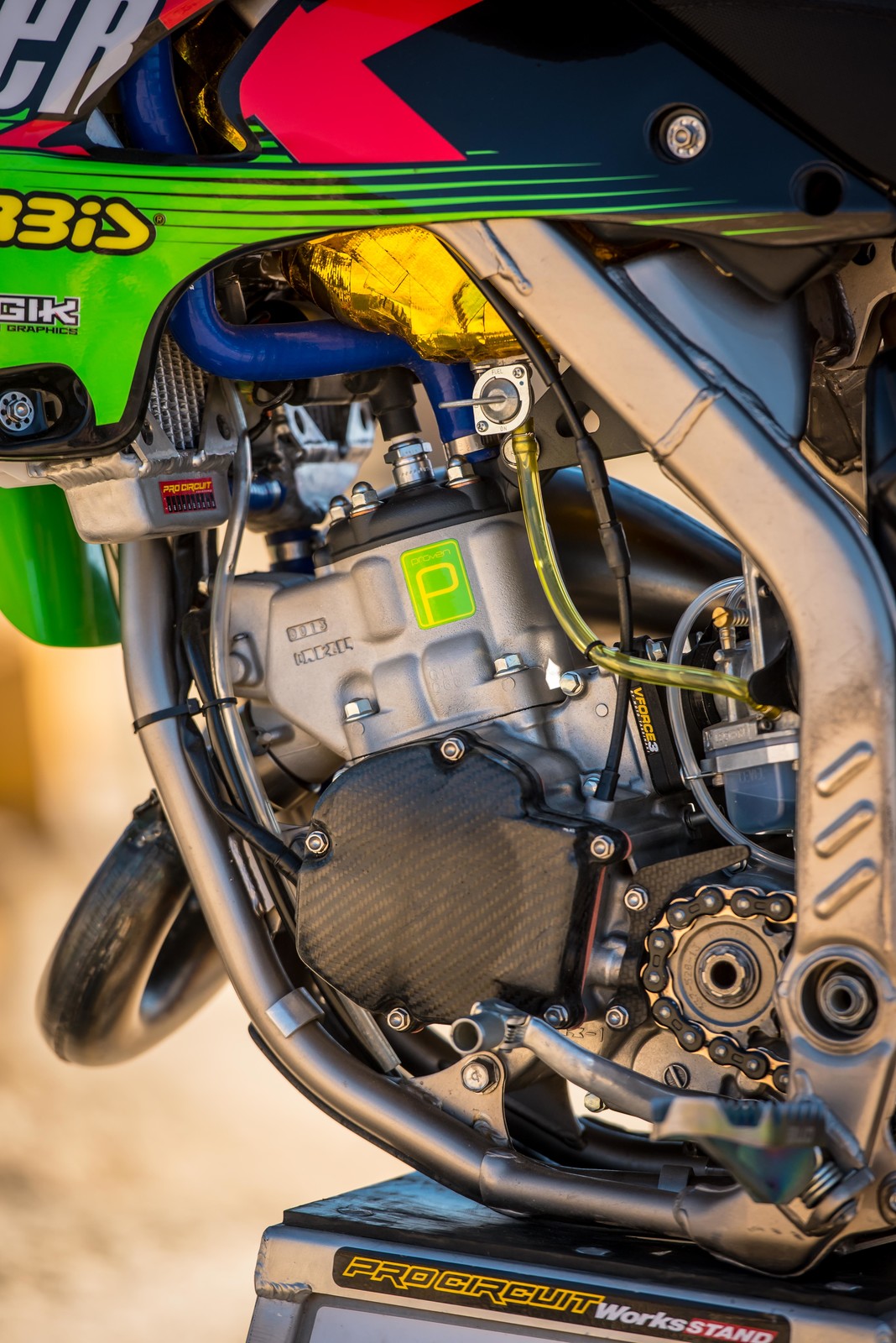

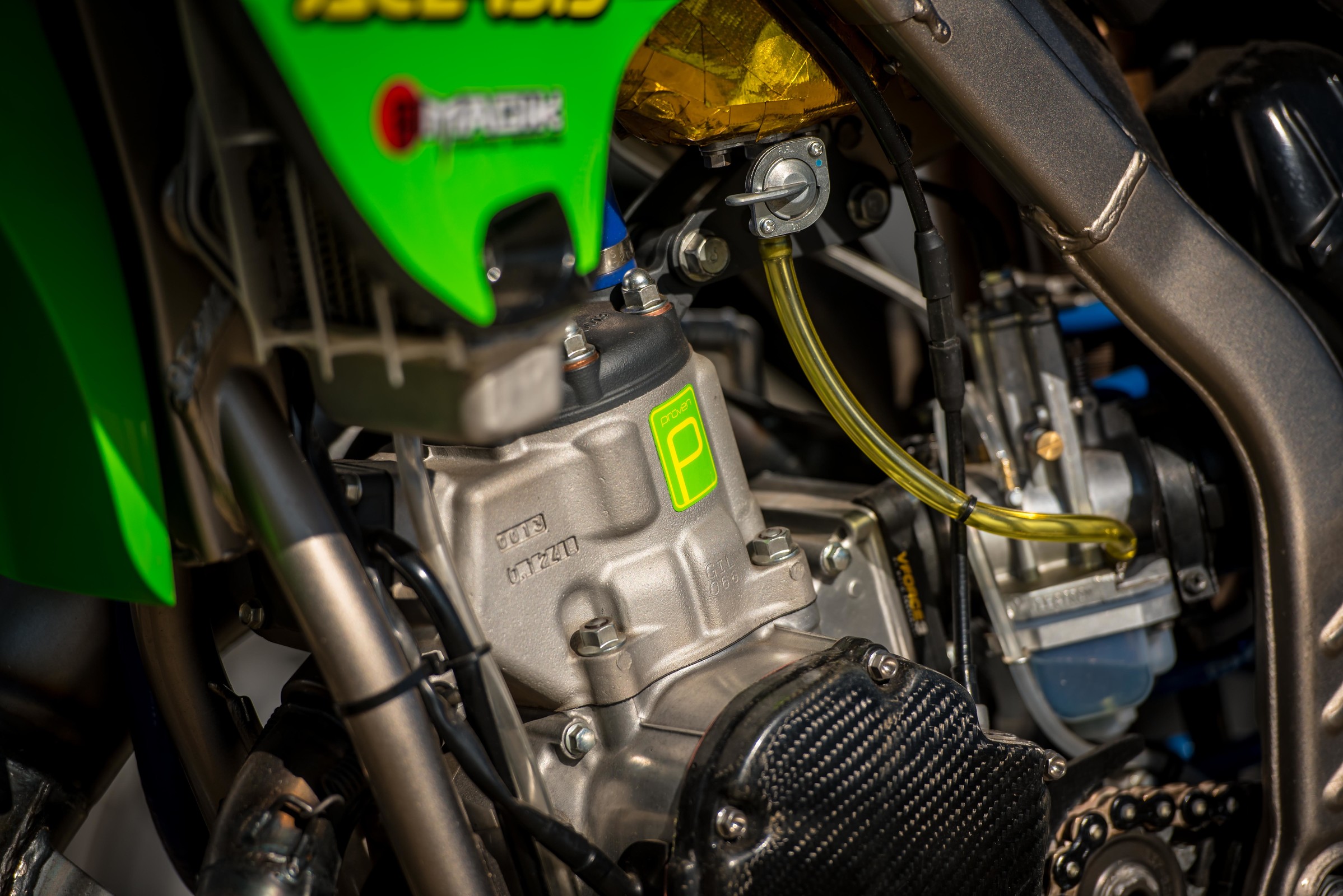

Cylinder Porting Mod and Head Mod

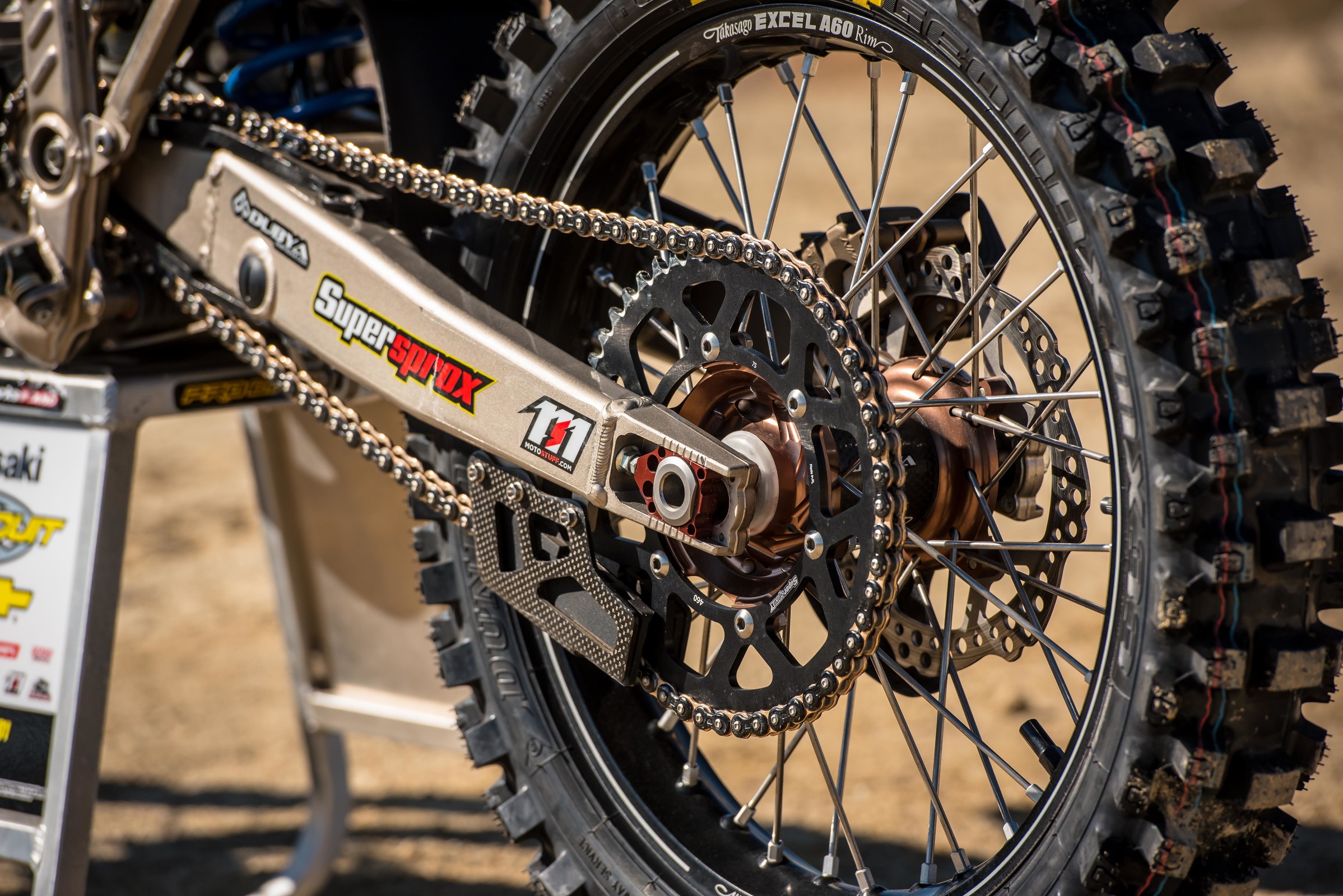

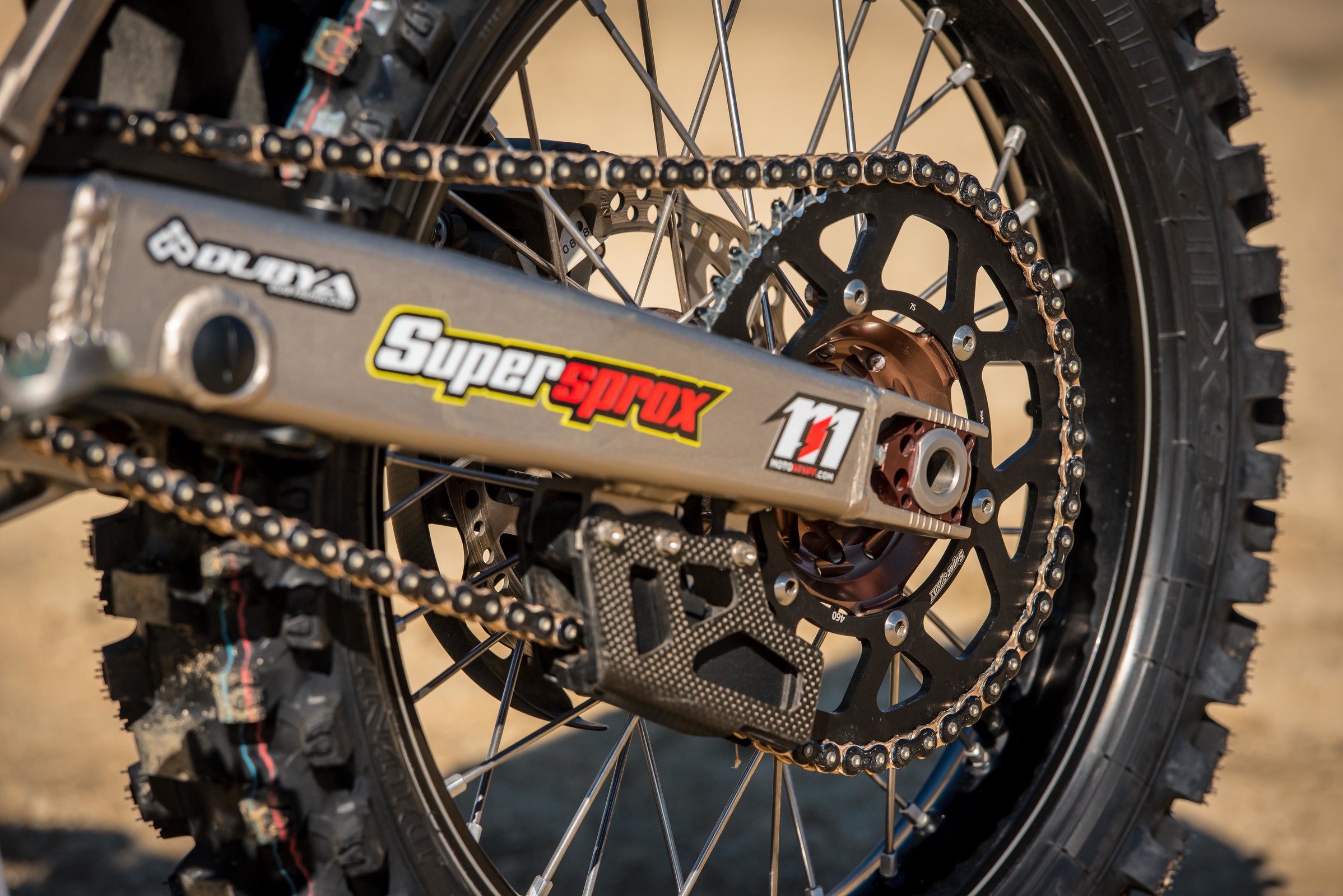

Front 13T, Rear 51T Aluminum Sprocket, Gold Race Chain

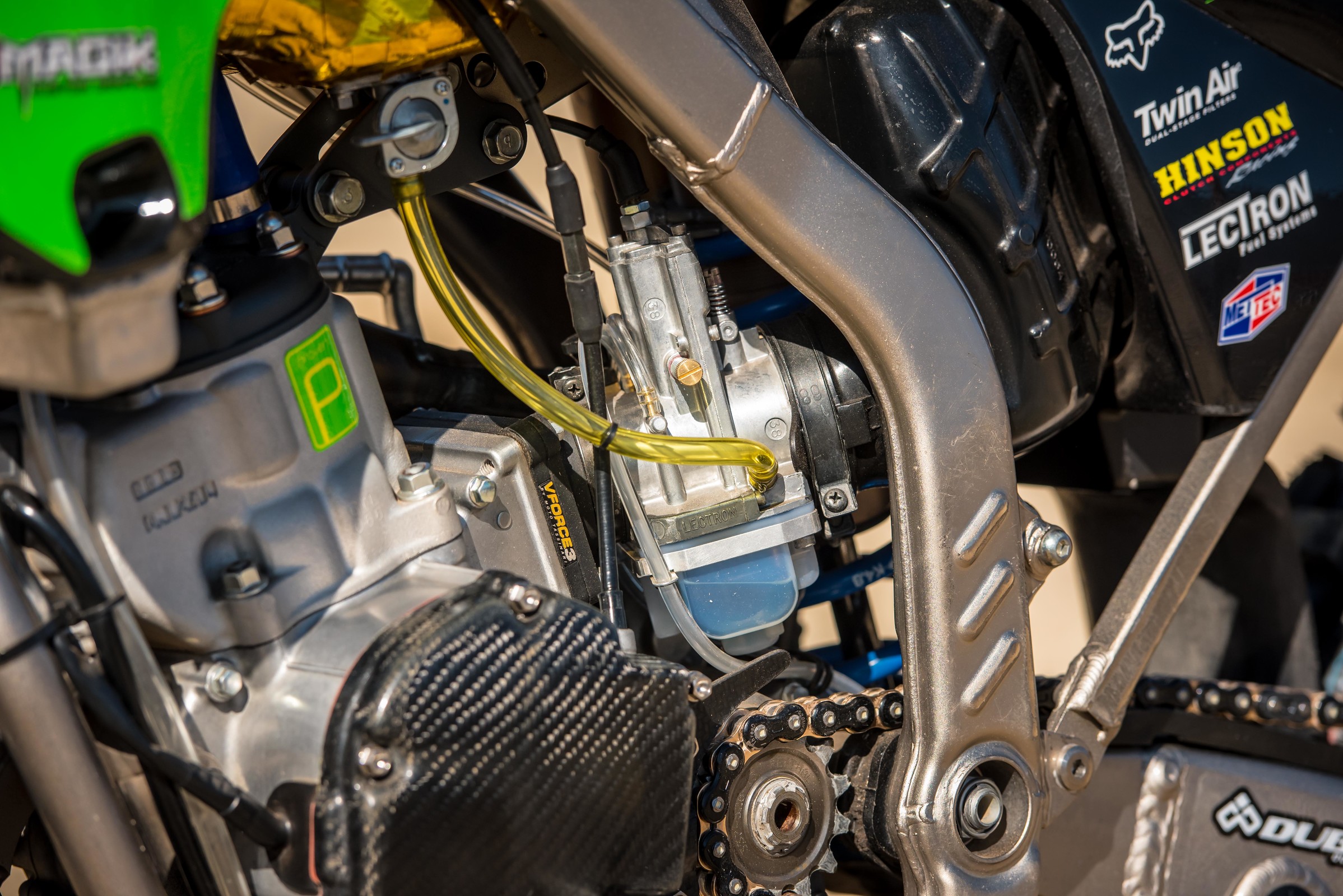

Custom 38mm High Velocity Carb

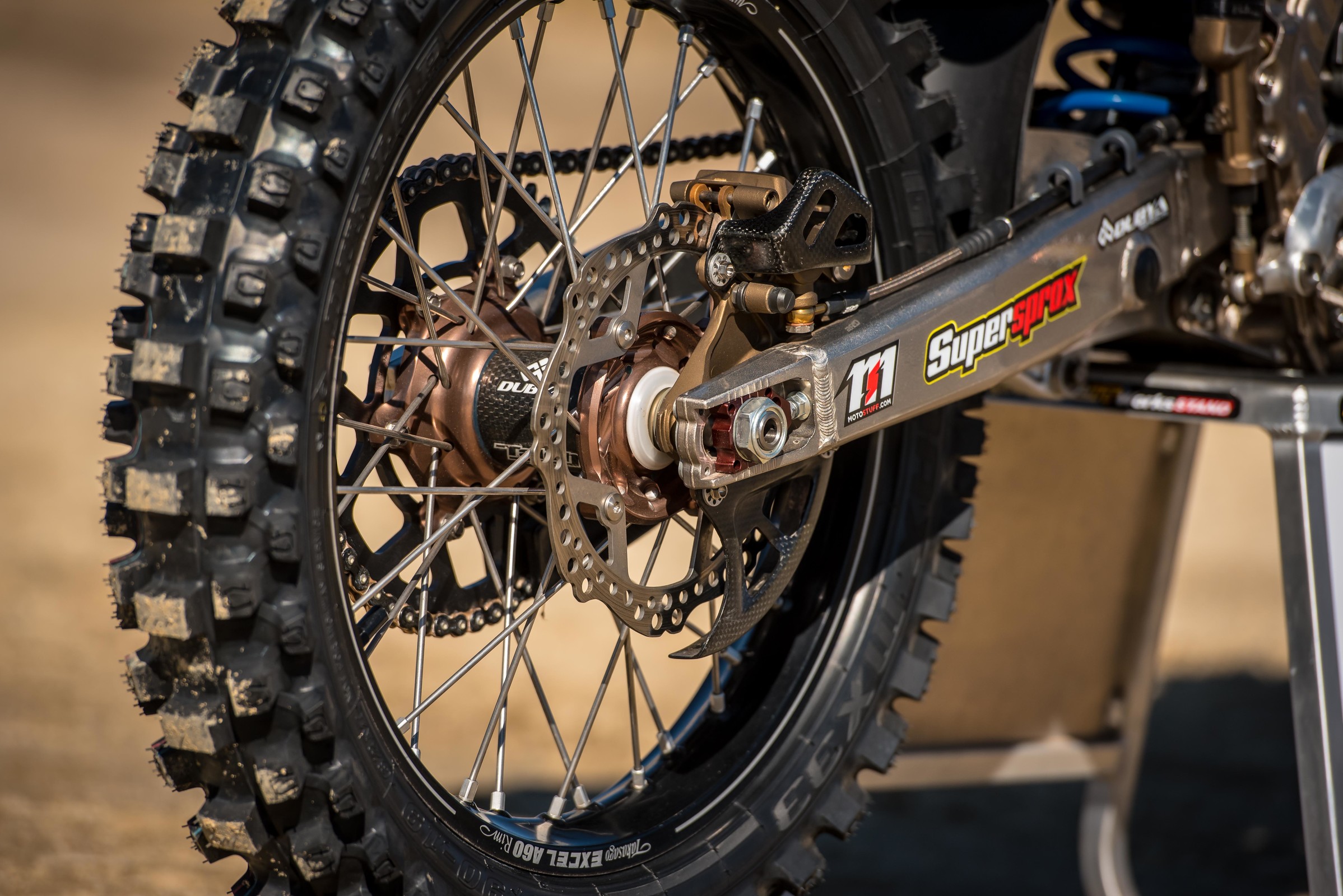

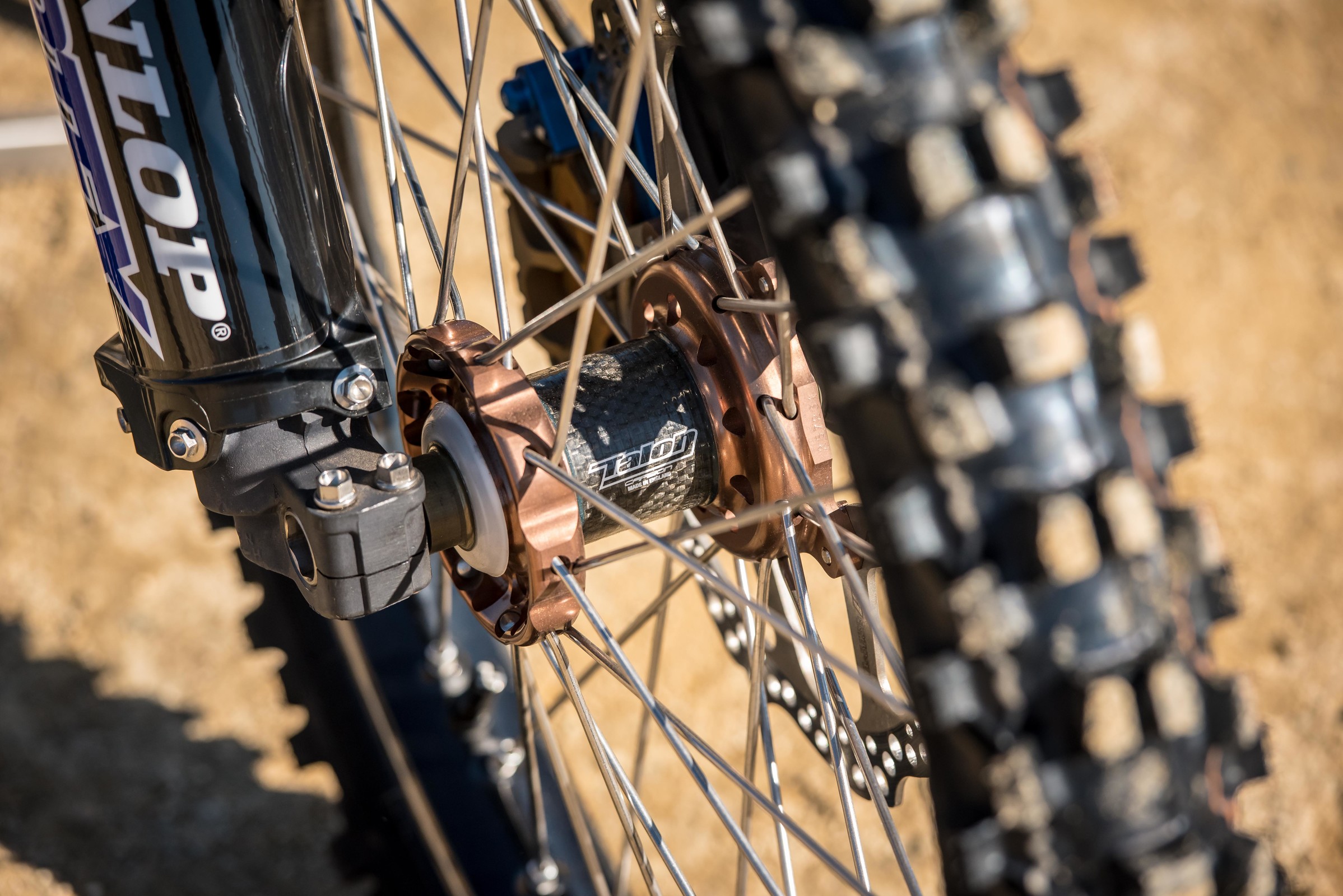

Custom Set of Talon Carbon Hubs with Mag CNC Outer Hub, Ceramic Bearings, Excel Nipples/Spokes Laced to A-60 Rims.
MX33 Front (90/100-21)
MX33 Rear (110/90-19)

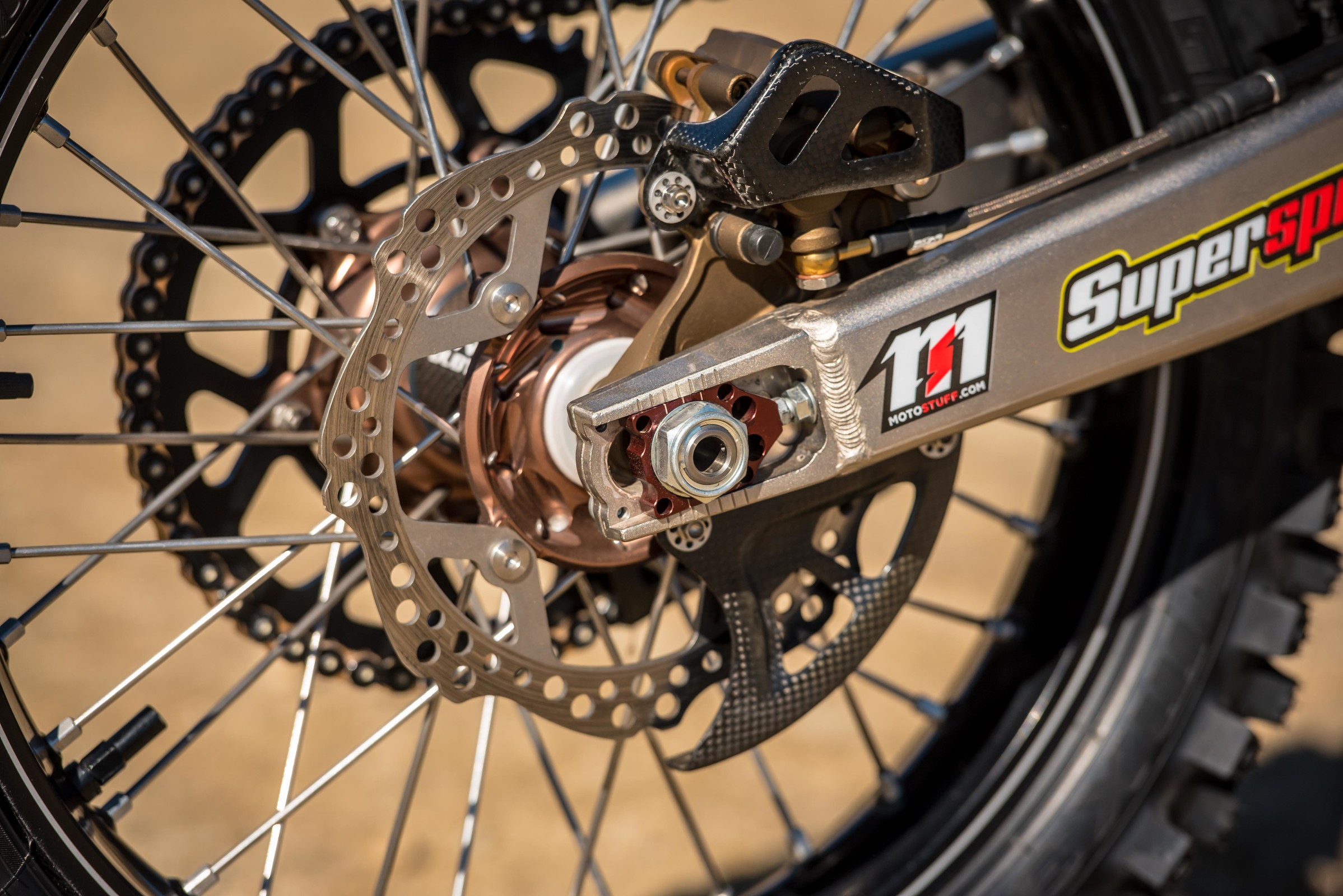

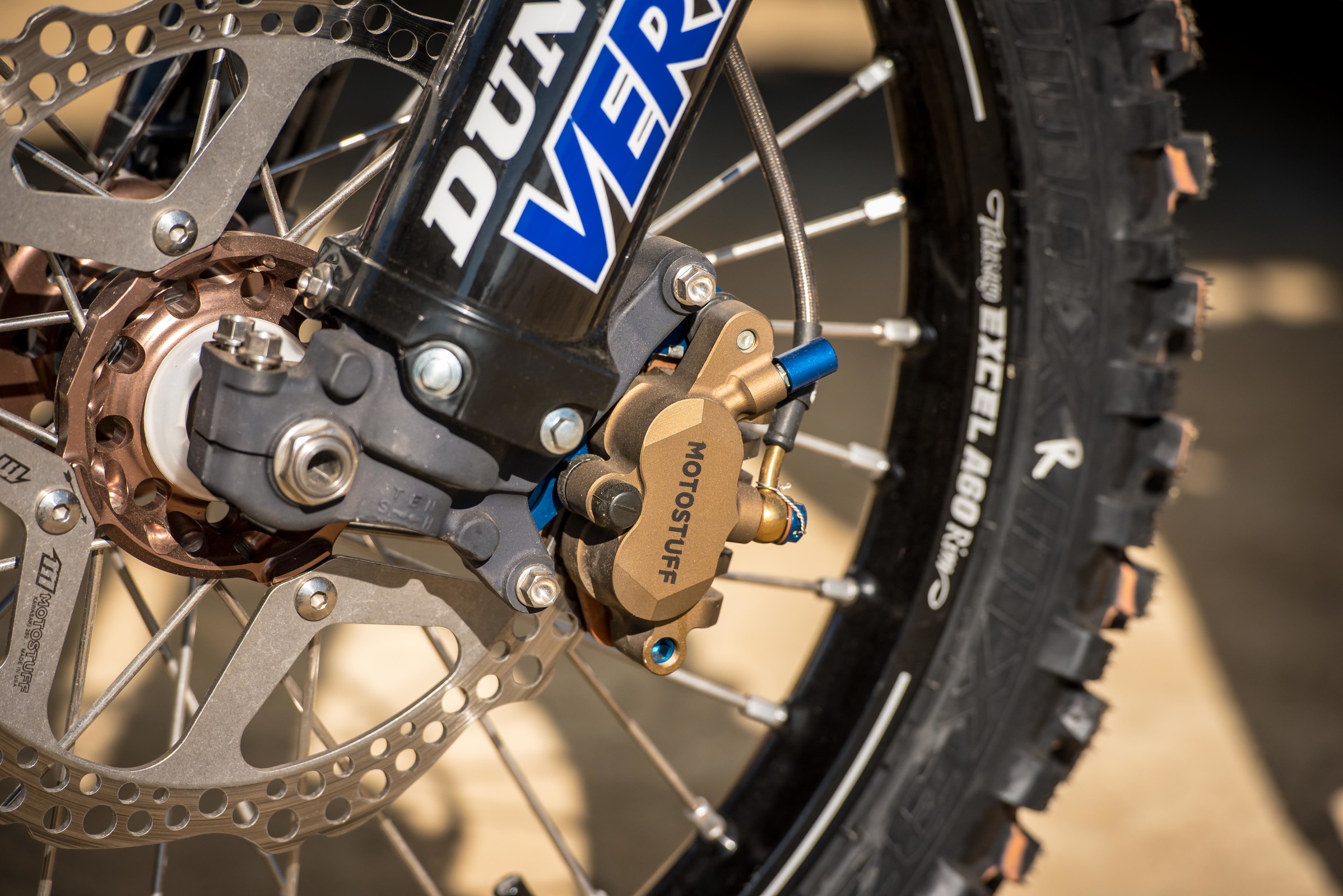

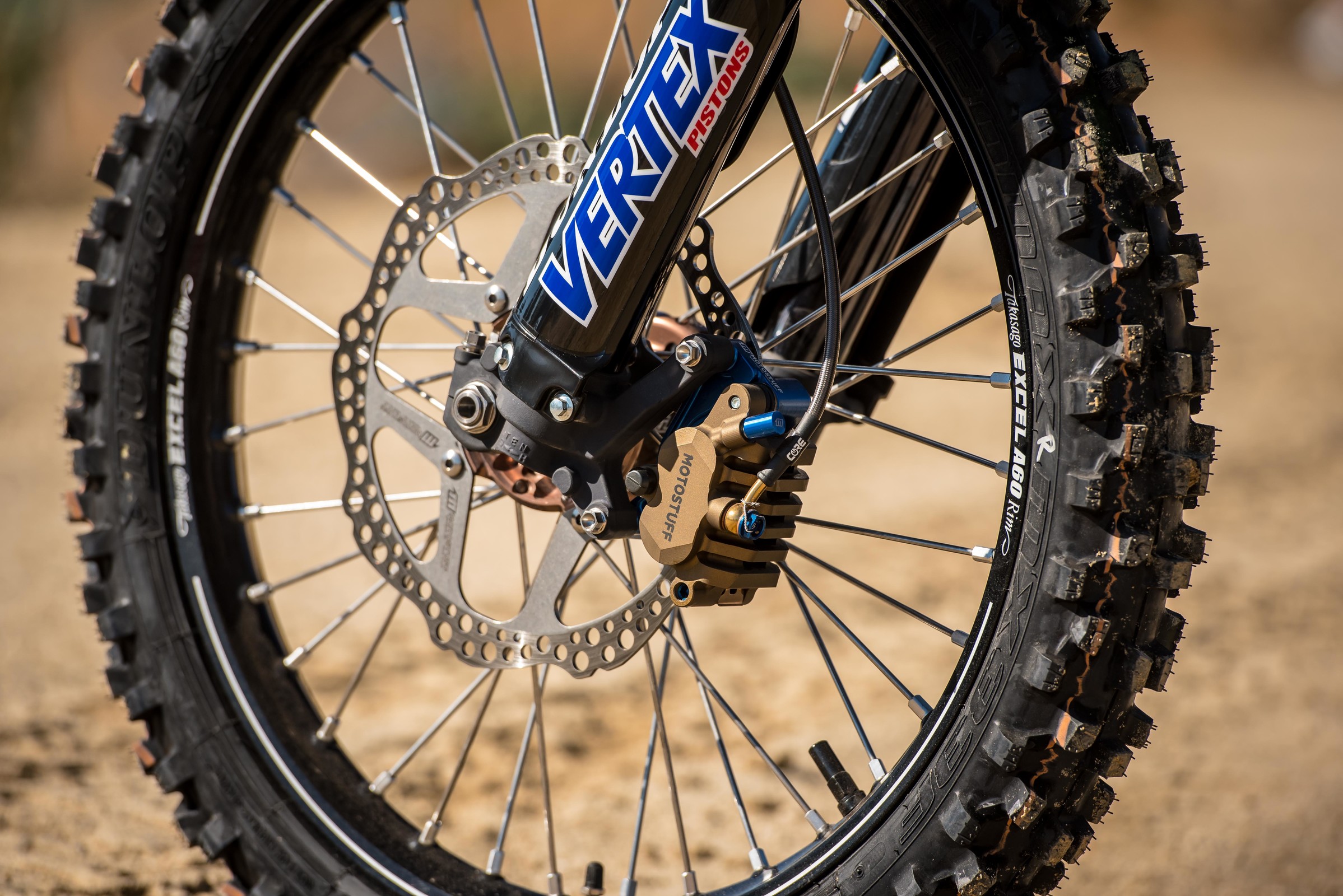

Custom CNC machined front caliper (mag color) with Ti and billet aluminum pieces, custom braided black steel brake lines with gold banjos, 280mm front rotor with matching rotor in back. Mag cerakoted master cylineders and a 2018 Honda Master cylinder up front with 11mm plunger. They also provide a bunch of aluminum drilled out spacers to trick things out.

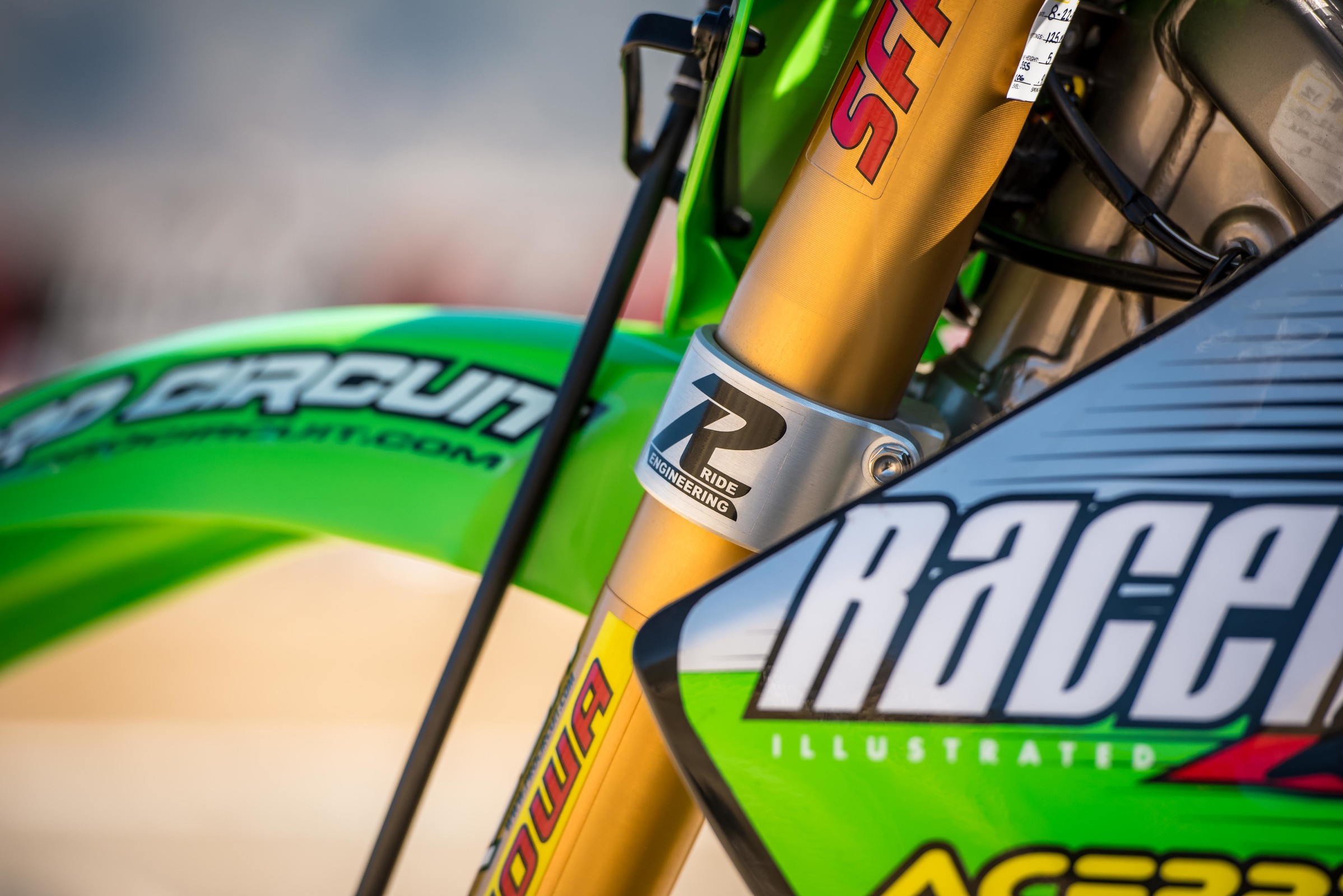

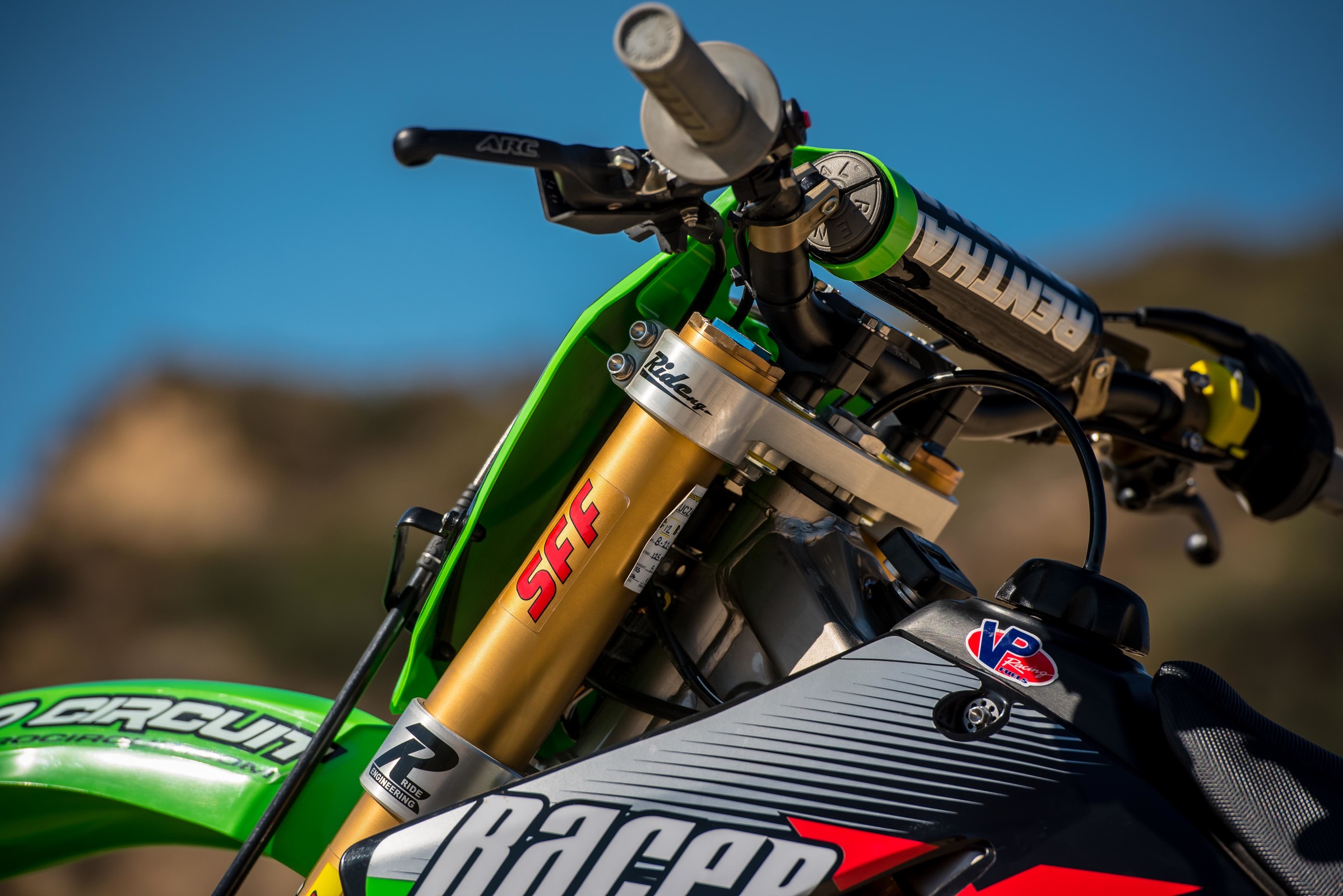

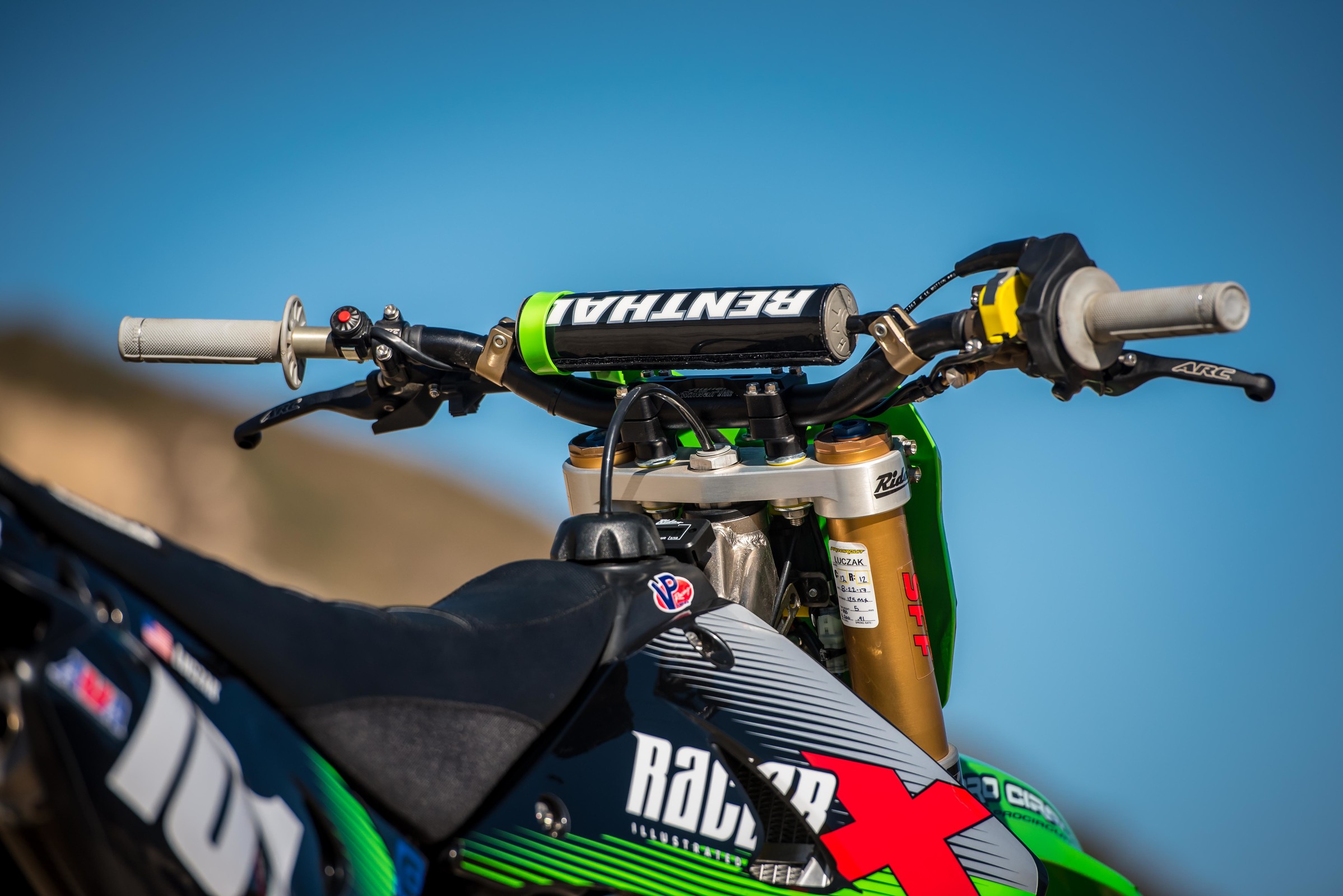

Triple Clamps, One-piece Bar Mounting System, Extended Rear Master Cylinder Piece, Showa Steering Stabilizer, Brake Line Guide/Front Number Plate
Hinson Clutch Components
Full Clutch Setup
Seam welded radiators and reinforced with brackets/cross members with polish finish

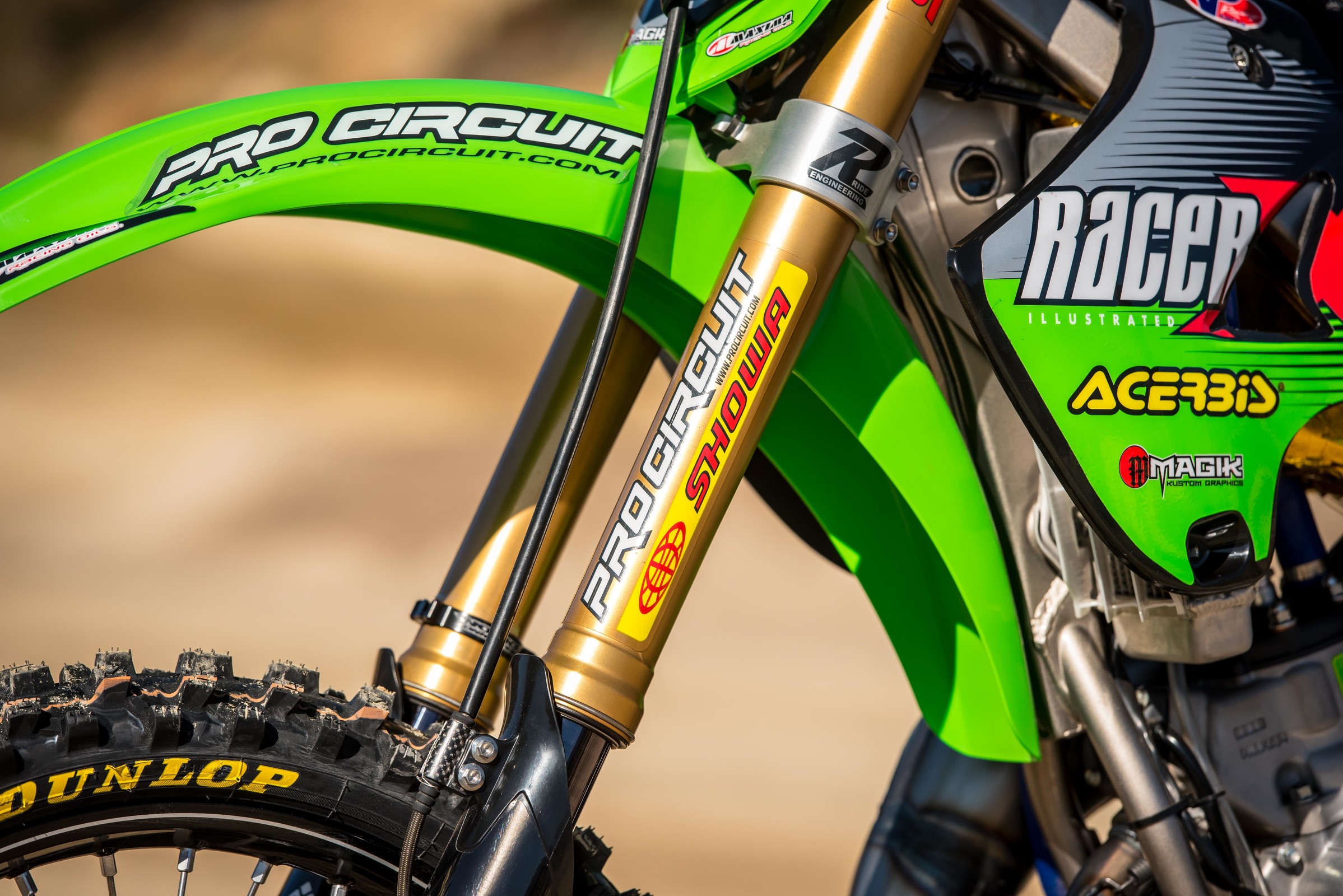

DLC to the shock shaft, fork tube lowers and fork feet. Custom coatings to the shock body, fork tubes as well as custom polish work to the linkage system and some engine parts. Custom PC works stand with side plates

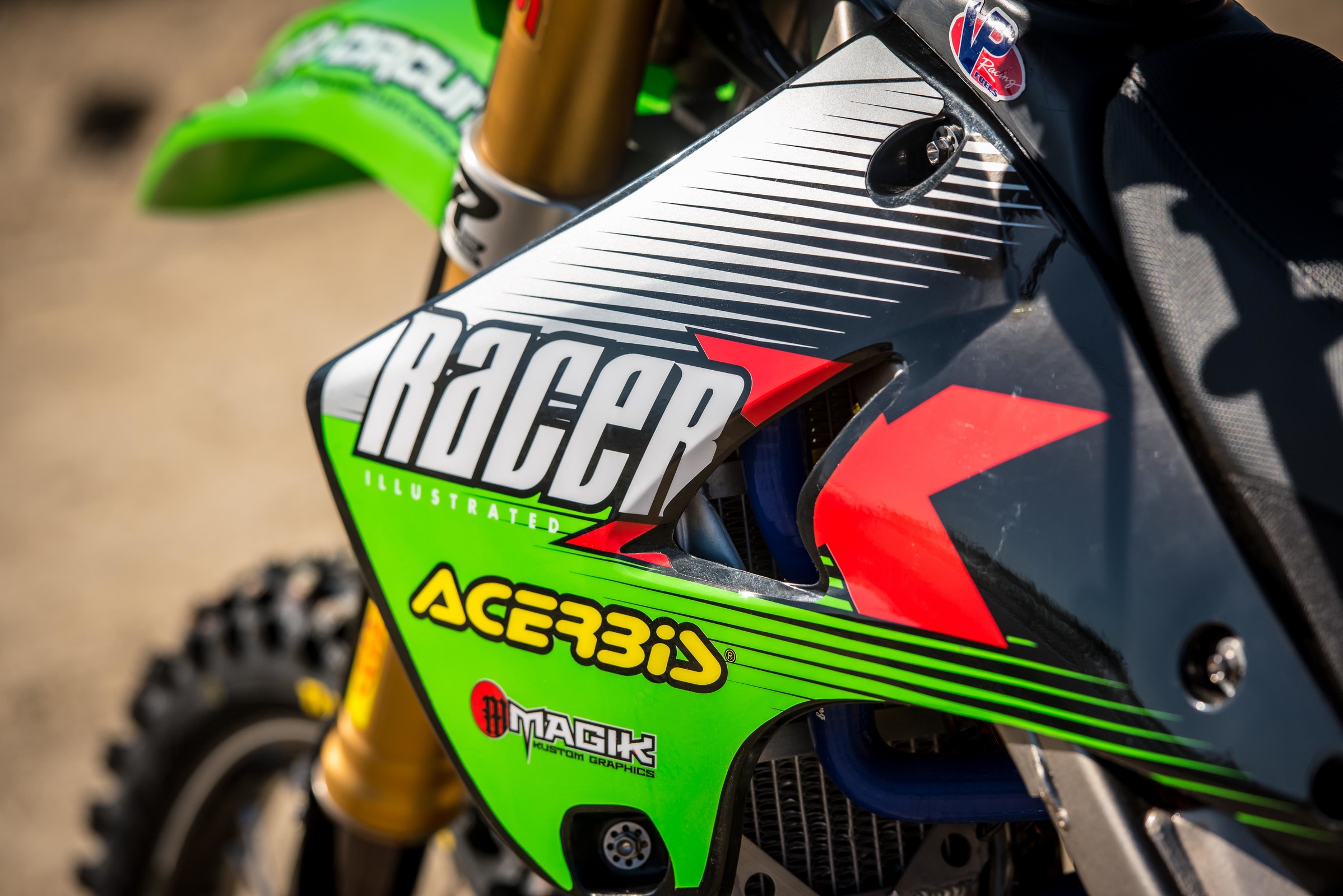

Magik Kustom Graphics
Titanium Axles, Ti Rotor/Sprocket Bolts, Ti Caliper Bolts, Chain Guide Bolts, Footpeg Pins, Sub-frame Bolts, Body Bolts, Engine Bolts, Kickstarter Bolt, Lower Rear Brake Bolt, Triple Clamp Pinch Bolts, Bar Mount Bolts, Hand Control and Renthal Cross Member Bolts, Fork Feet Pinch Bolts, Fork Guard Bolts, Petcock Bolts, Tank Bolt etc.
Light Speed Carbon
Glide Plate, Chain Guild, Rear Caliper/Rotor Cover, Fork Guards, Front Rotor Cover, Frame Guards, Case Saver and Carbon Brake Line Pinch Clamp for the Fork Guard.
Jeske MX Customs

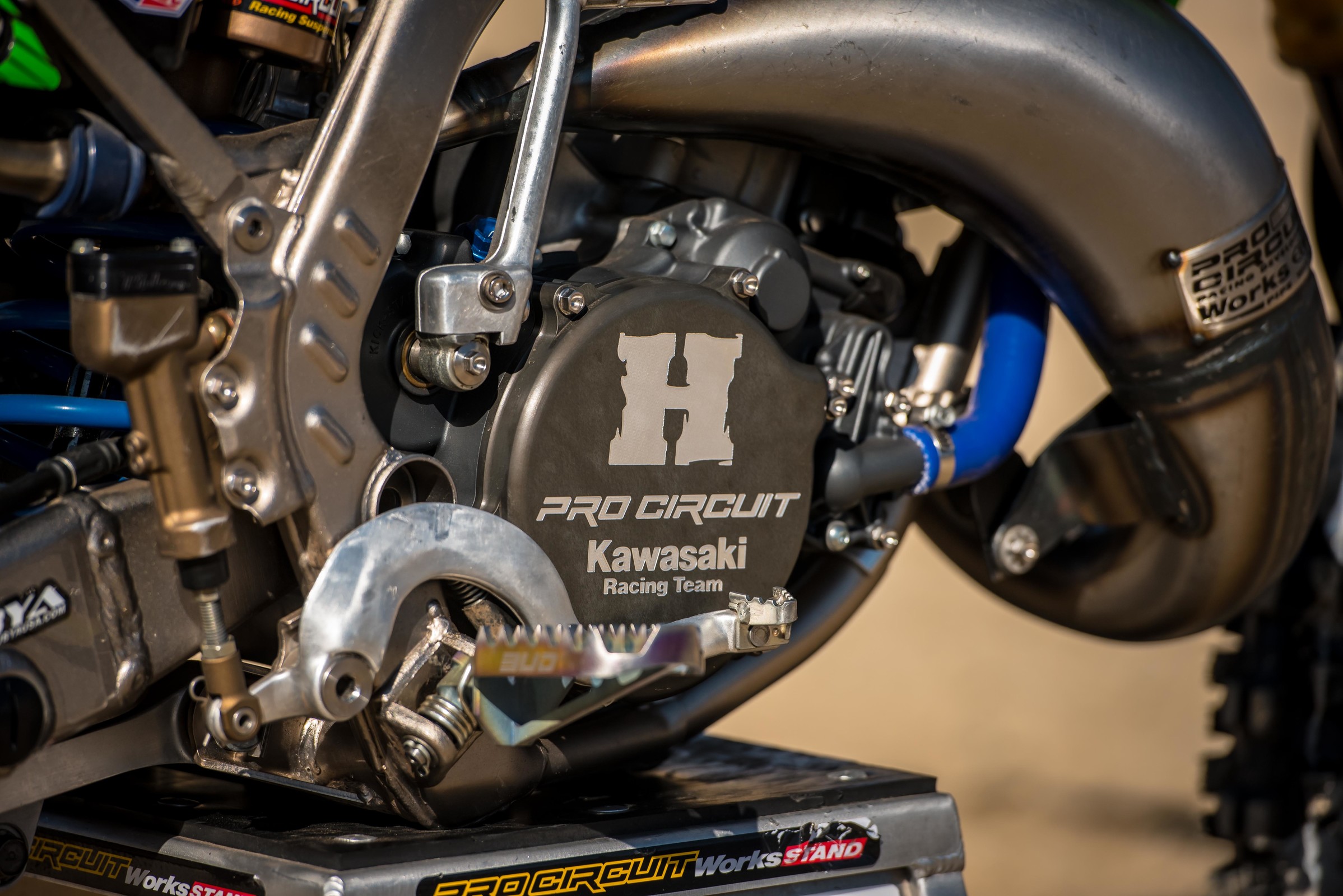

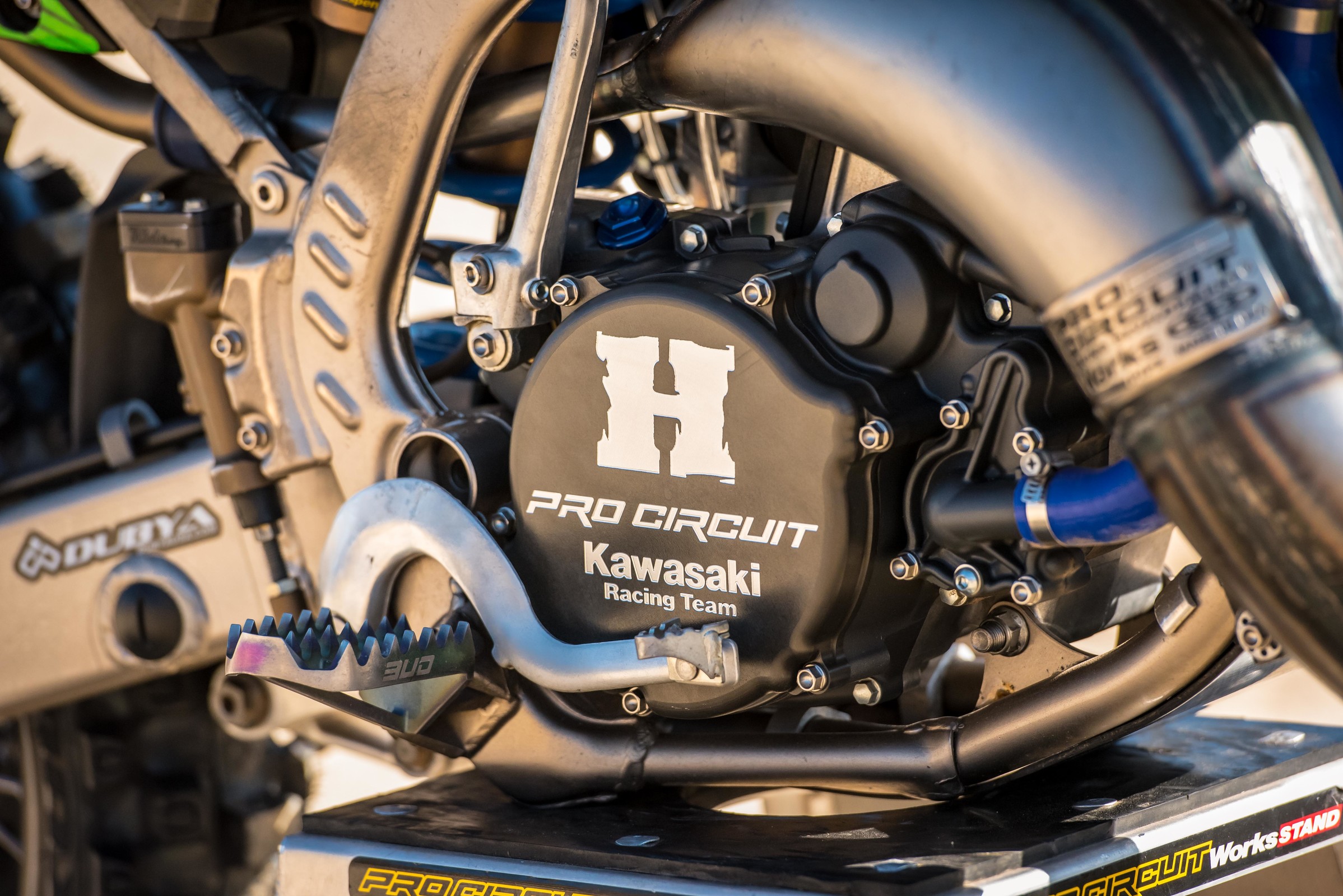

One-off Custom Clutch Cover CNC Billet Aluminum, Hard Anodized, Laser Engraved both Pro Circuit and Hinson Logos
Front and Rears Brake Caps, Rotating Bar Clamp, Steering Stem Nut, Rear Chain Adjuster Blocks, Engine Oil Cap/Plug
VP Racing Fuels
MRX02 and C12 Mixed for Elevation in Utah
Steering Stem Bearing Kit, Swingarm Kit, Linkage Rebuild Kit
Custom Cool Seat Cover with New Foam
Plastic (updated front end pieces)
V-Force Reed Cages
Engine Gaskets, Reed Cage Spacer

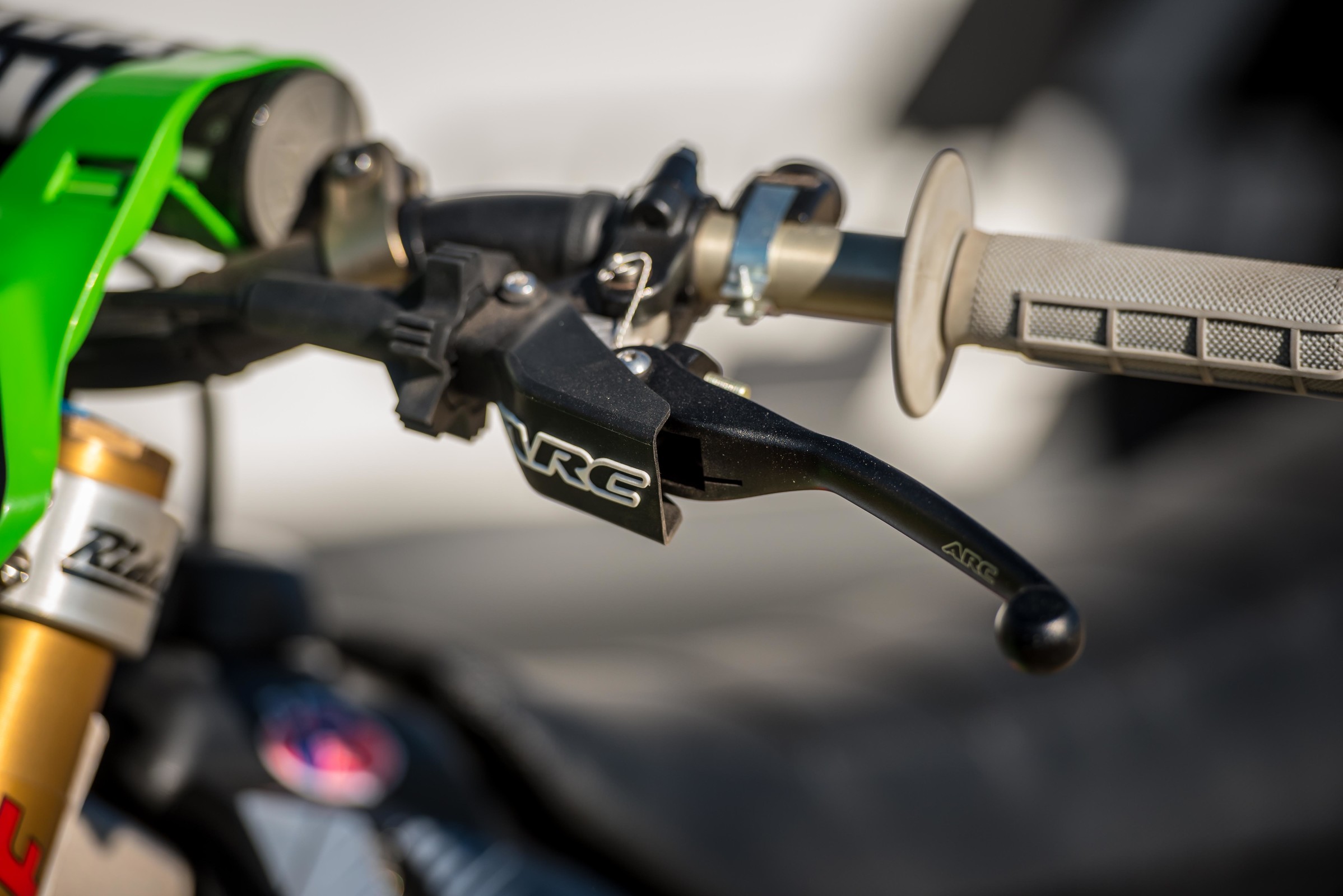

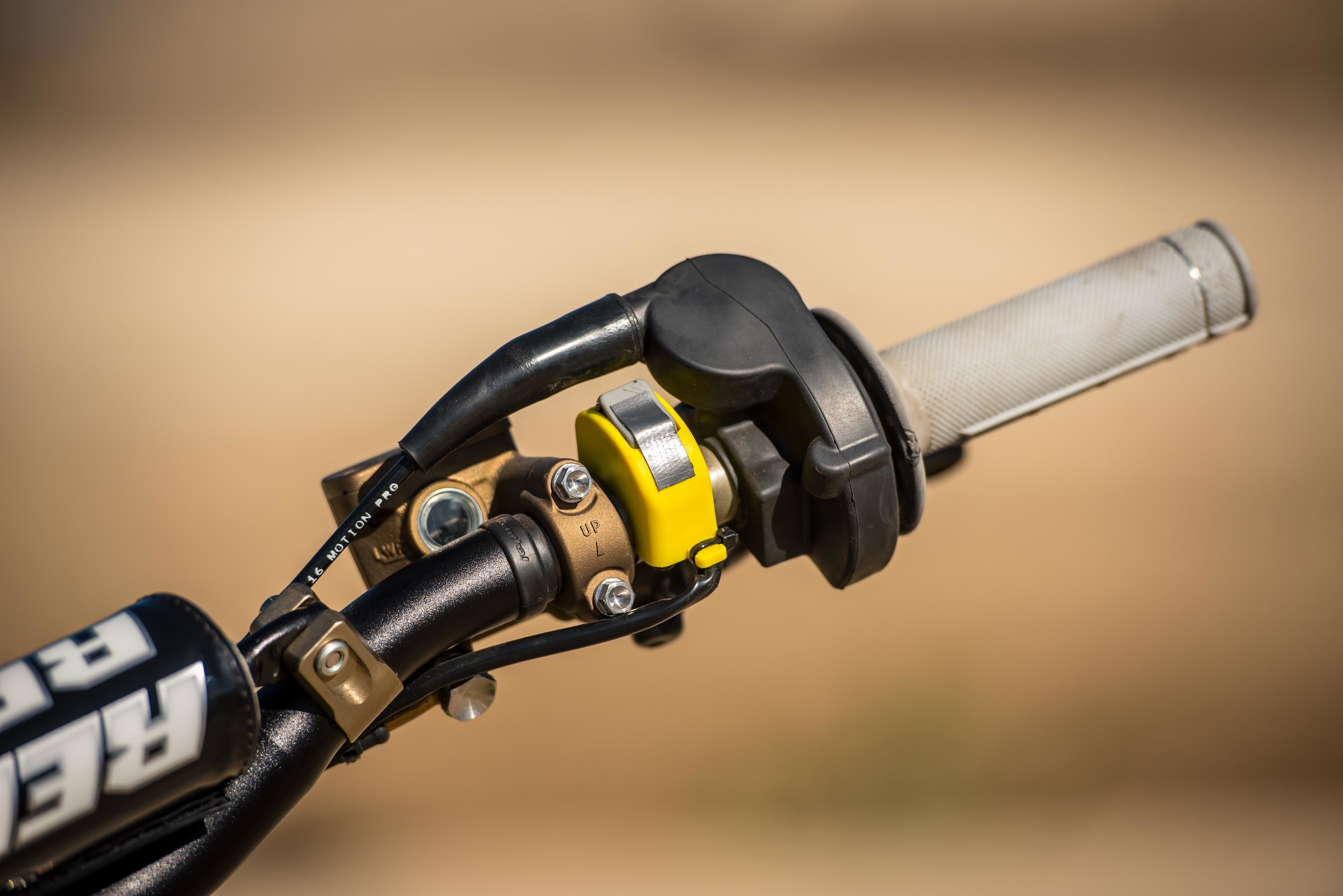

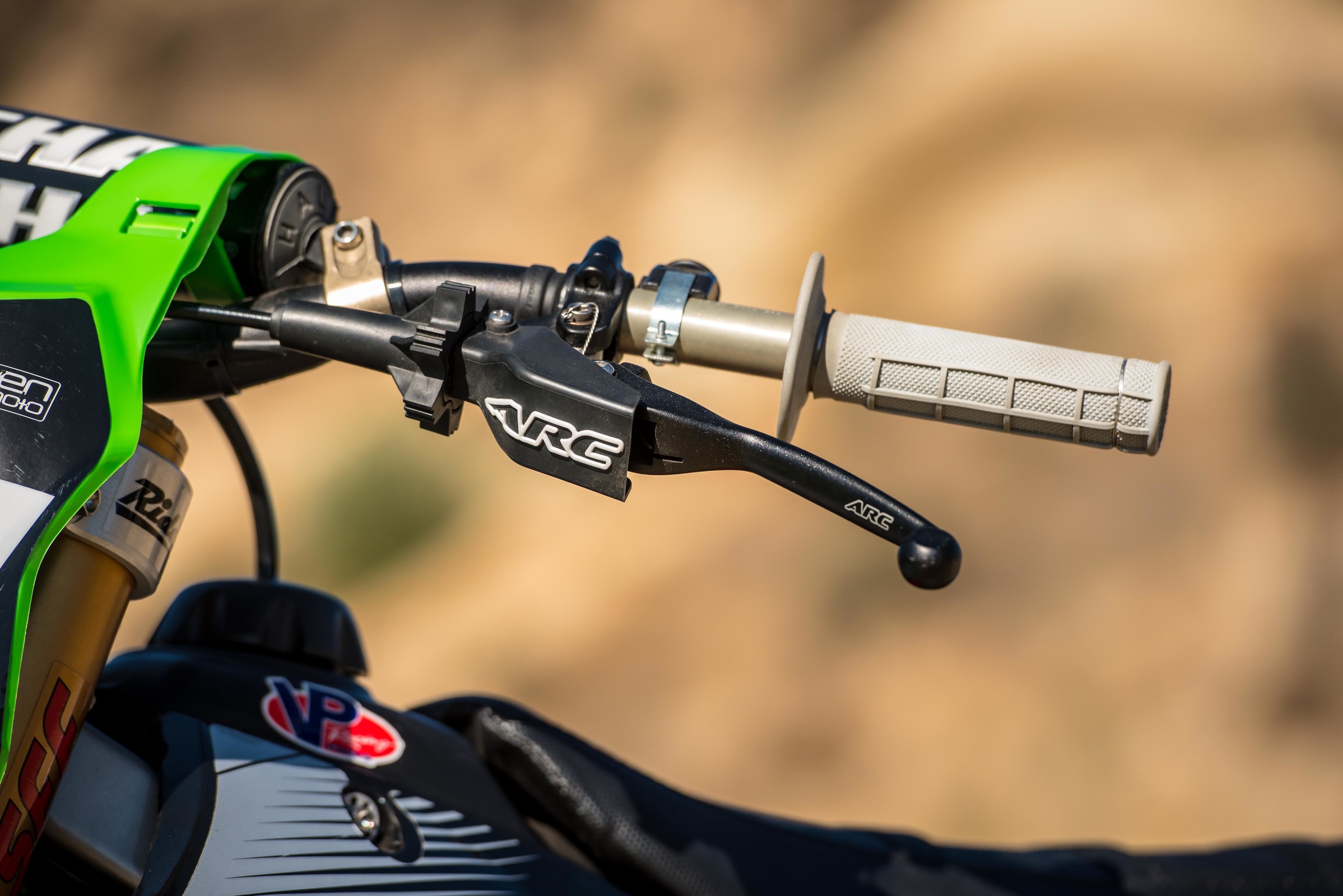

Clutch Perch and Folding Levers

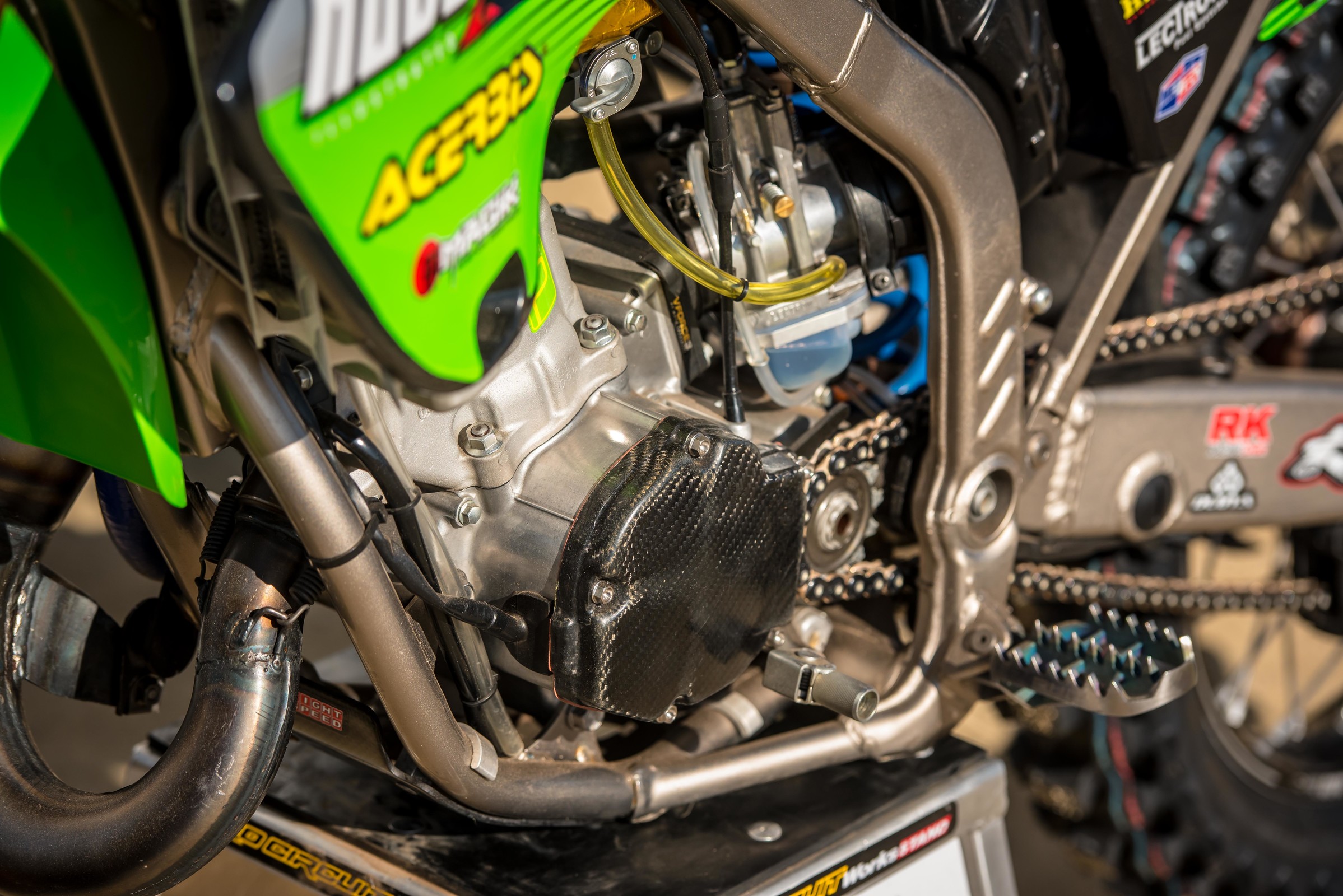

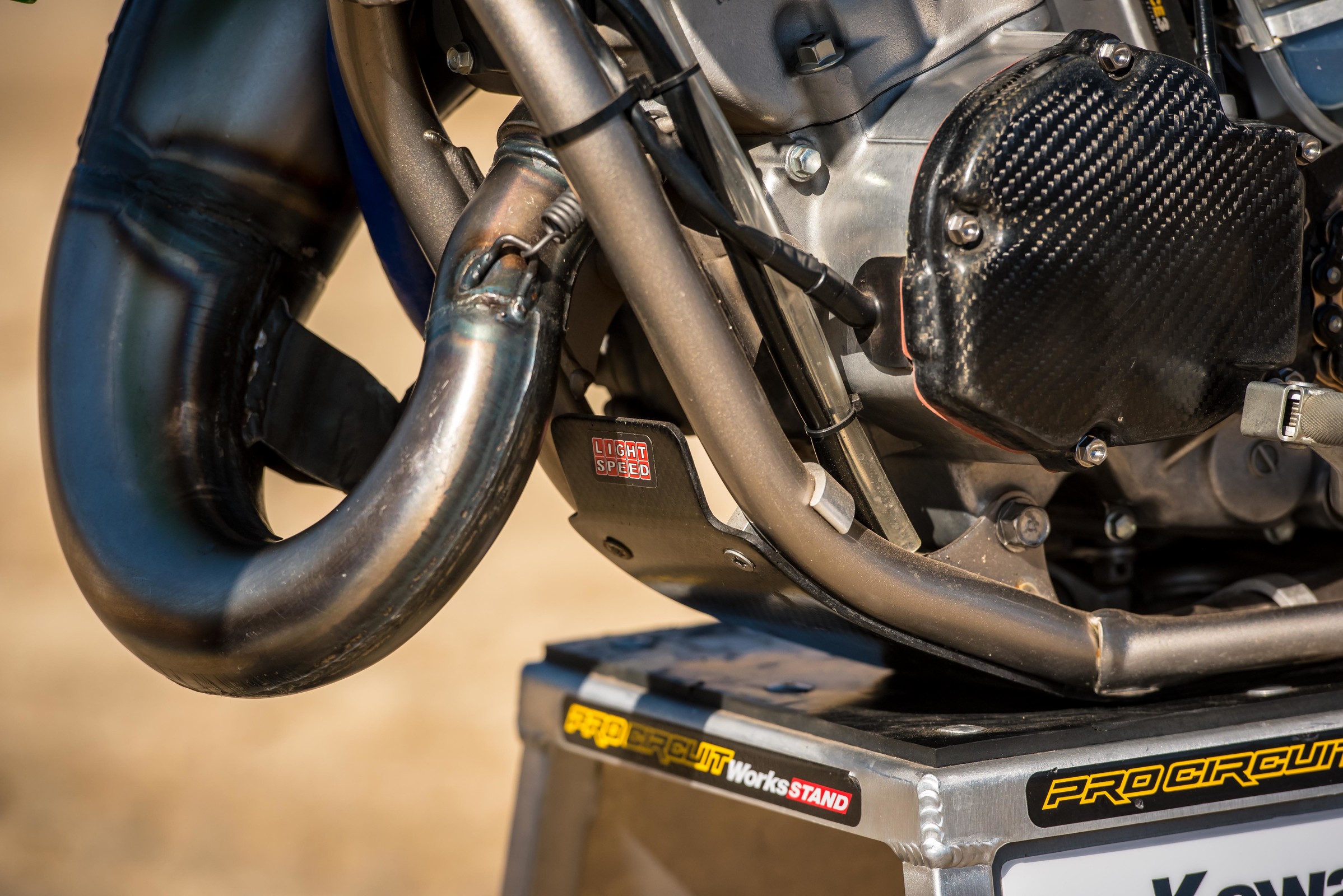

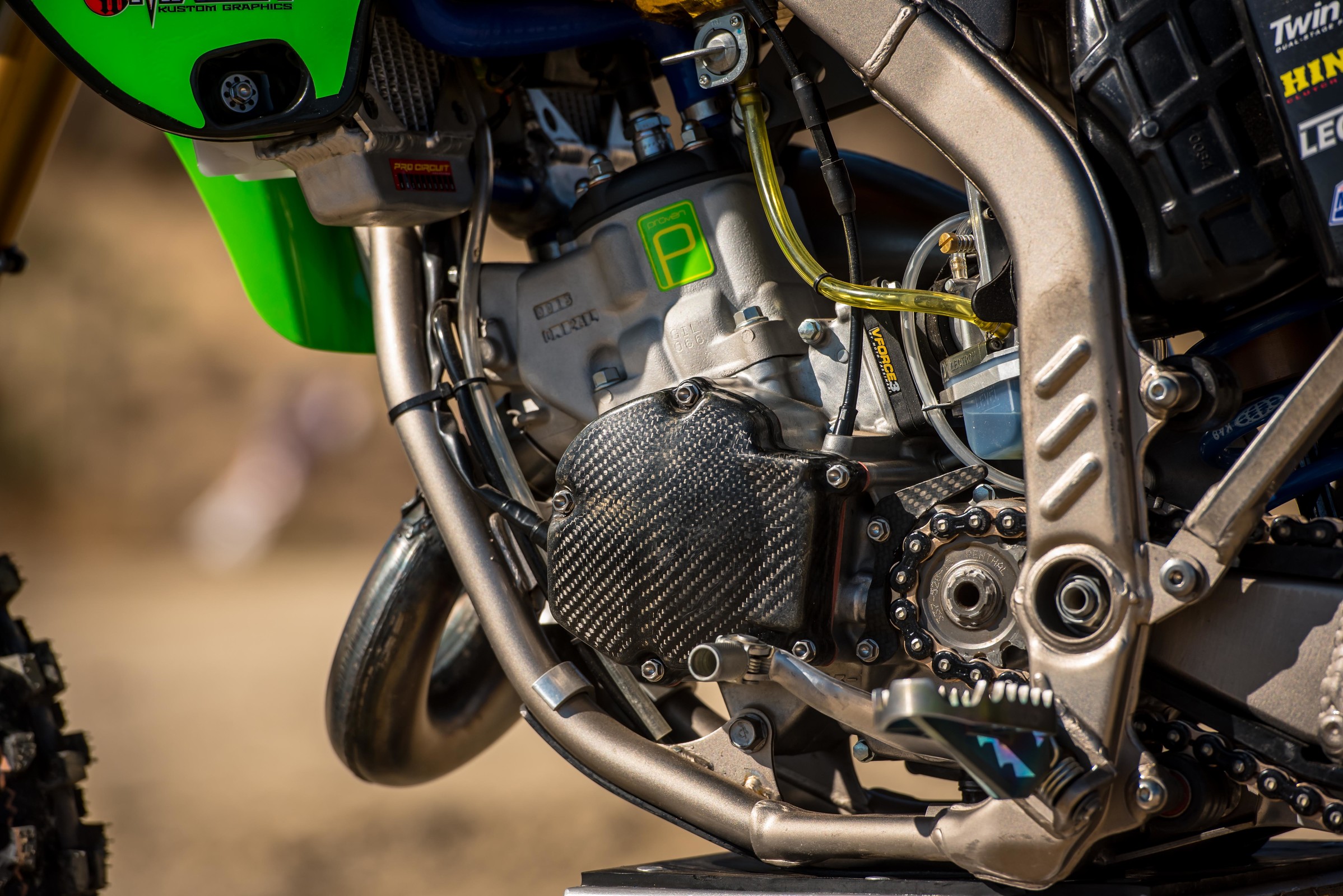

Carbon Ignition Cover
Formed Silicone Coolant Hoses, High Pressure Radiator Cap, Gold Heat Wrapped Tank

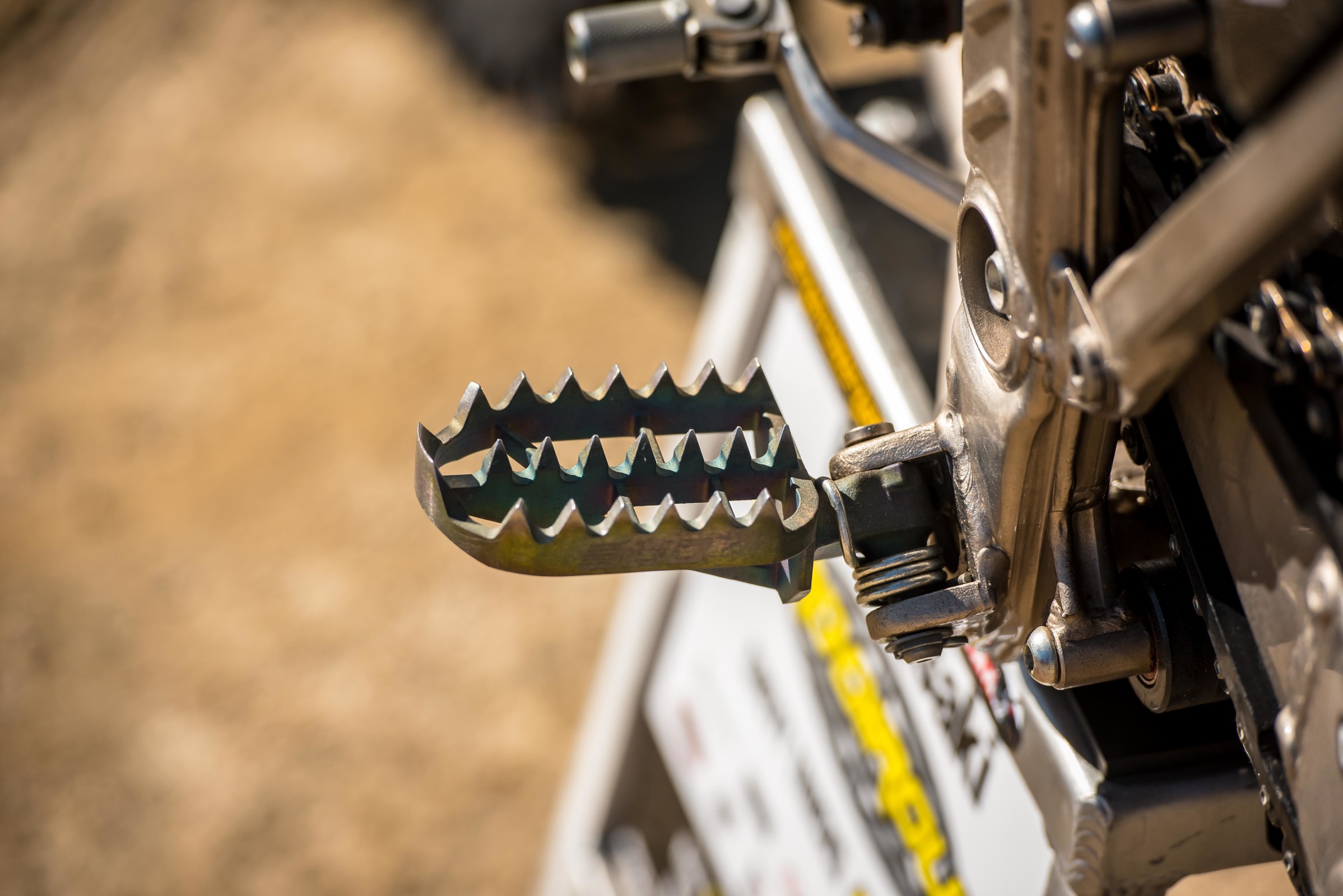

Burnt Ti Footpads with Ti Mounting Hardware
Maxima Racing Oils
K2 Oil, Gear Oil, Brake Fluid, FFT
Trick Machine Shop
Handmade Special Spacers, Countersunk Bolts, Pins and Helped Configure a Better Riding Position by Altering the Pegs and Shifter/Rear Brake Levers (after Ping's initial test)
Eric Tolbert - Instagram @trickmachineshop
MotoKote Performance Suspension and Coatings
Trick Anodizing/Coatings to Suspension Parts, Engineered Xtrig Preload Adjuster to Shock Body
Powersports Engine Coolant
Iridium Spark Plug
