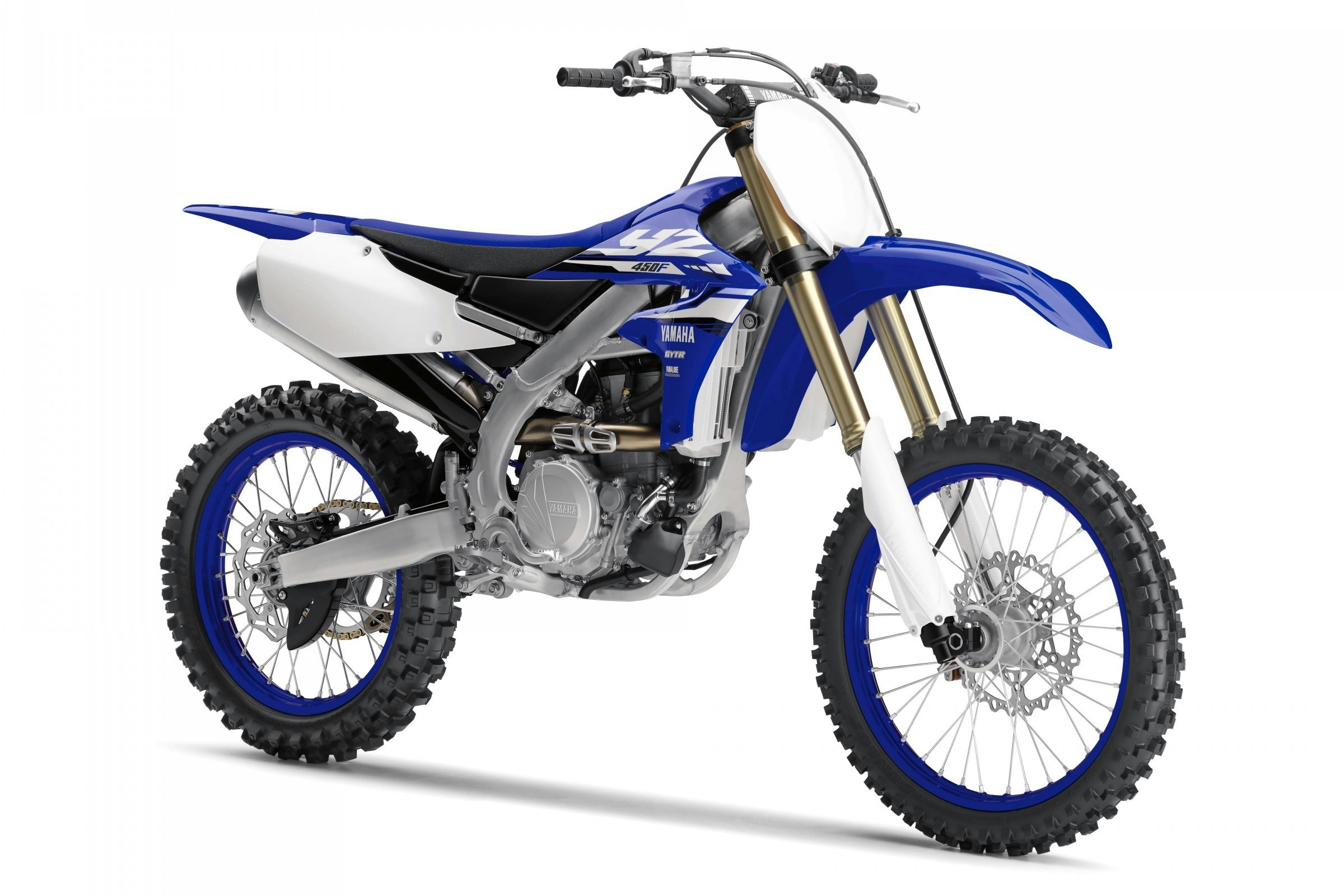

CYPRESS, Calif. - Yamaha Motor Corporation, USA, today unveiled an entirely reimagined 2018 YZ450F with electric start featuring the world’s first smartphone engine tuning app on a production motocross bike. An all-new engine, new frame, new bodywork and more are also major focal points of the extensive model redesign.
“The 2018 YZ450F with all-new technology, power and performance connects YZ riders to their bikes like never before and will launch Yamaha riders into the victory zone when bikes hit dealers in July,” said Mike Doughty, Yamaha’s General Manager of Motorcycle Operations. “With the all-new design and performance features of the 2018 model, the YZ450F enters a new era of advanced racing technology that brings the ultimate balance of power, confidence and customization to Yamaha riders.”
The 2018 YZ450F utilizes an all-new engine design that features a new cylinder head, piston, cam shaft profiles, cylinder geometry and more – all working together to deliver class leading power, with even more controllability. Its bilateral beam frame is all-new with an optimized engine mounting position to improve the machine’s rigidity balance, improving cornering ability, and traction
WORLD’S FIRST PRODUCTION POWER TUNER APP
The 2018 YZ450F is the world’s first production motocross bike with a wireless smartphone based engine tuner. The all-new Yamaha Power Tuner iOS® and Android® App and communication control unit connects the rider with the bike like never before. The new Yamaha Power Tuner App can make fuel and ignition mapping changes – uploaded wirelessly to the bike via the onboard Wi-Fi system – for the ultimate in track-side tuning. A “Log” function allows you to make notes about your riding location, conditions, bike settings and more, giving you a baseline for future rides. The app can also monitor a range of information such as RPM, throttle position, engine coolant temperature and more. There is also a maintenance function with customizable trip meters to monitor run times for items you decide.
The new Yamaha Power Tuner App released with the 2018 YZ450F makes it possible to modify engine mapping in even greater detail than before. It also allows users to share settings among their team or with friends (along with other information) thus evolving the system into a tool that helps facilitate communication.
ALL-NEW ELECTRIC START
Utilizing a compact starter motor and ultra-lightweight lithium-ion battery, the 2018 YZ450F brings the convenience of push-button starting to the racetrack for effortless restarts under pressure and relaxed riding when the clock isn’t ticking. Powered by a high-capacity and ultra-lightweight lithium-ion battery, the system adds minimal weight.
For 2018, Yamaha has refined its distinct rearward-slanted cylinder design for the YZ450F engine – complete with a rear exhaust and forward-mounted downdraft intake system. The all-new cylinder head is lighter and the cylinder slant is more upright to work with the bike’s updated frame for optimized front weight distribution. Inside, the engine features new cam shaft profiles, a new crankshaft, a stronger high-compression “box bridge” piston design with a DLC-coated (Diamond-like Carbon) piston pin, and now breathes through a new 44mm Mikuni® throttle body. Together, these updates give the rider an ideal balance of 450cc class power with exceptional control and response.
The transmission and clutch have been overhauled for a more direct connection as well as enhanced durability. Revised gears with a wider surface area, updated clutch plates and a stiffer outer pressure plate all combine to boost controllability and durability.
The YZ450F radiators and exhaust have also been modified for improved performance and weight distribution. The updated radiators are larger and angled more directly in the incoming air stream for improved cooling under the most demanding race conditions. The innovative wraparound exhaust pipe design improves mass concentration and improves power development, with revised geometry for 2018. This layout moves the rear end of the exhaust pipe farther forward and enables a muffler position close to the center of the mass.
Returning for the 2018 model, Yamaha’s Launch Control System (LCS) is integrated into the YZ450F for optimized engine output that results in a quicker, smoother race start, boosting controllability out of the gate and ensuring the rider has the best chance to get the holeshot and lead the competition into the first turn.
NEW FRAME AND OPTIMIZED ERGONOMICS
The all-new compact bilateral beam frame of the YZ further refines the instinctive handling. Redesigned upper frame bracing, rear frame spars and all new engine mounts centralize mass and increase rigidity on lateral, horizontal and vertical axis to provide an ideal balance between cornering feel and straight-line rigidity. Simply, the new frame was designed to improve contact to the ground and provide the best possible balance of stiffness for bump absorption, and effortless cornering.
Surrounding this fully redesigned chassis, the 2018 YZ450F features a new lighter, compact body from tip to tail. The radiator shrouds incorporate a new air duct with a concave shape that not only improves styling, but is also narrower for better knee grip and overall rider movement. The seat height has been reduced by 8mm towards the front and almost 20mm lower at the tail end, giving the rider better maneuverability on the bike.
EASILY TUNED KYB® COIL SPRING SUSPENSION
The industry-leading, fully adjustable KYB® coil spring-type fork with speed sensitive damping provides exceptional balance between handling and bump absorption for race-winning performance. The KYB® shock boasts new damping characteristics to match the new chassis. The reservoir has been increased 30cc to increase damping control during long motos.

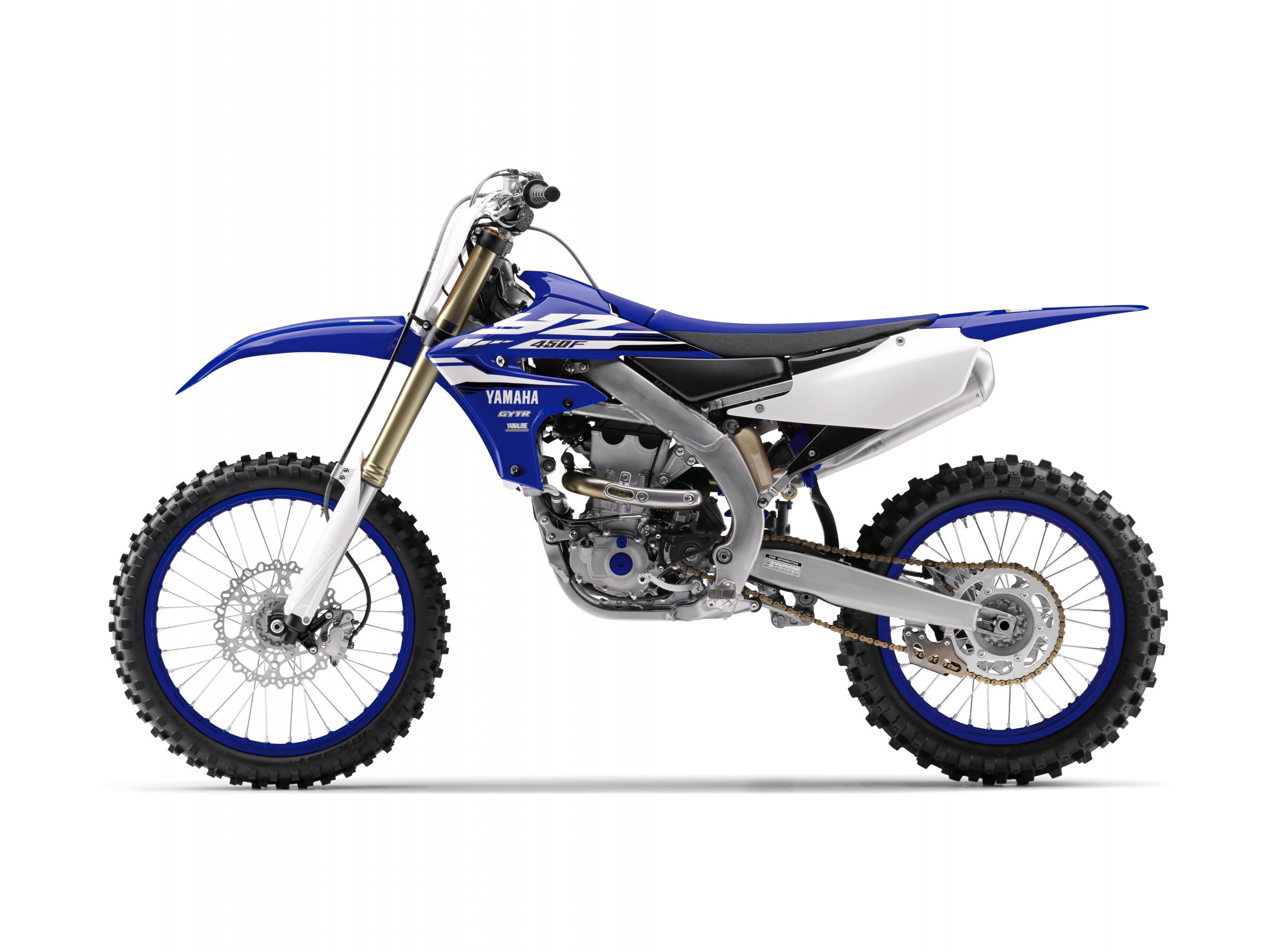

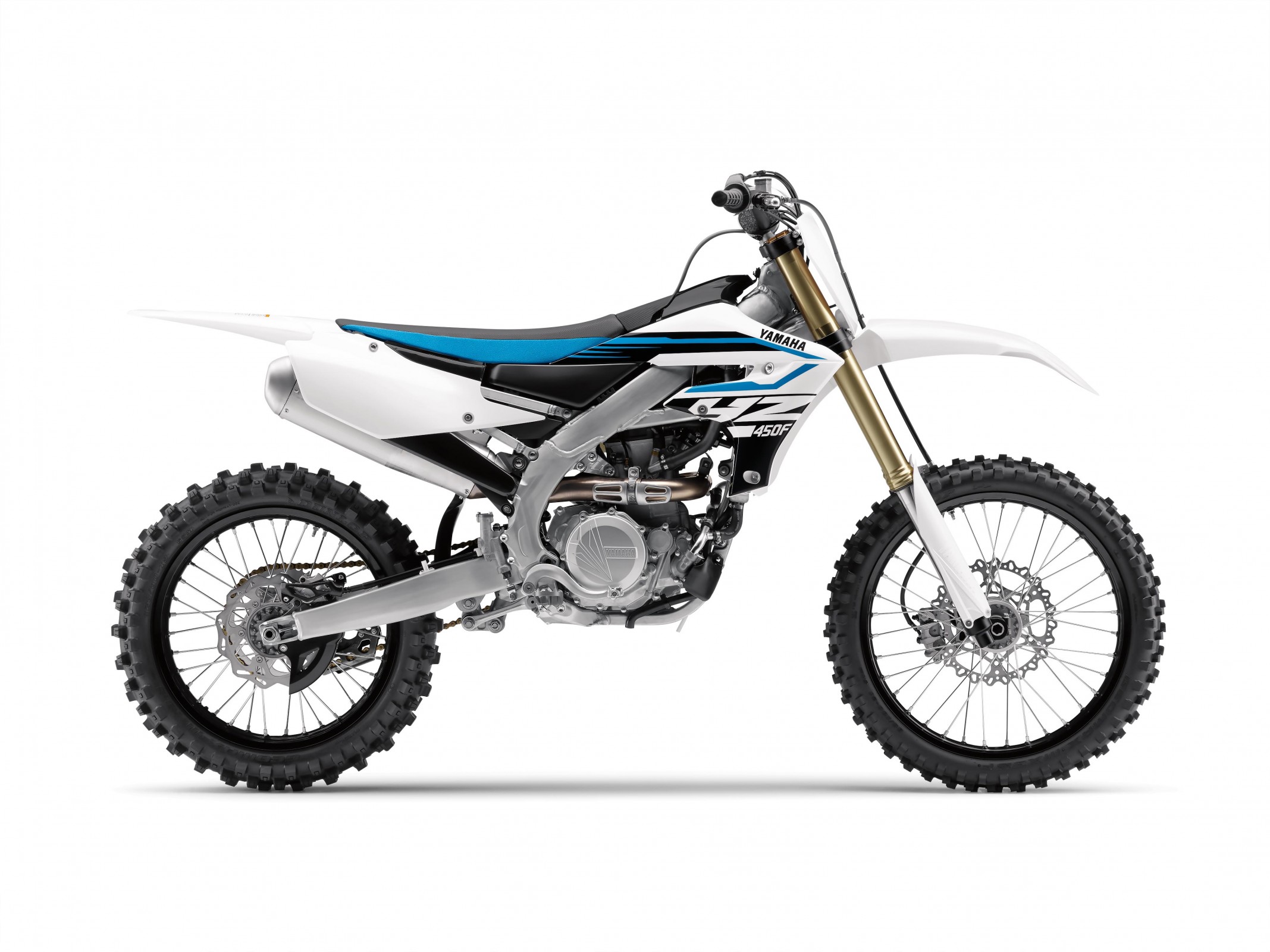

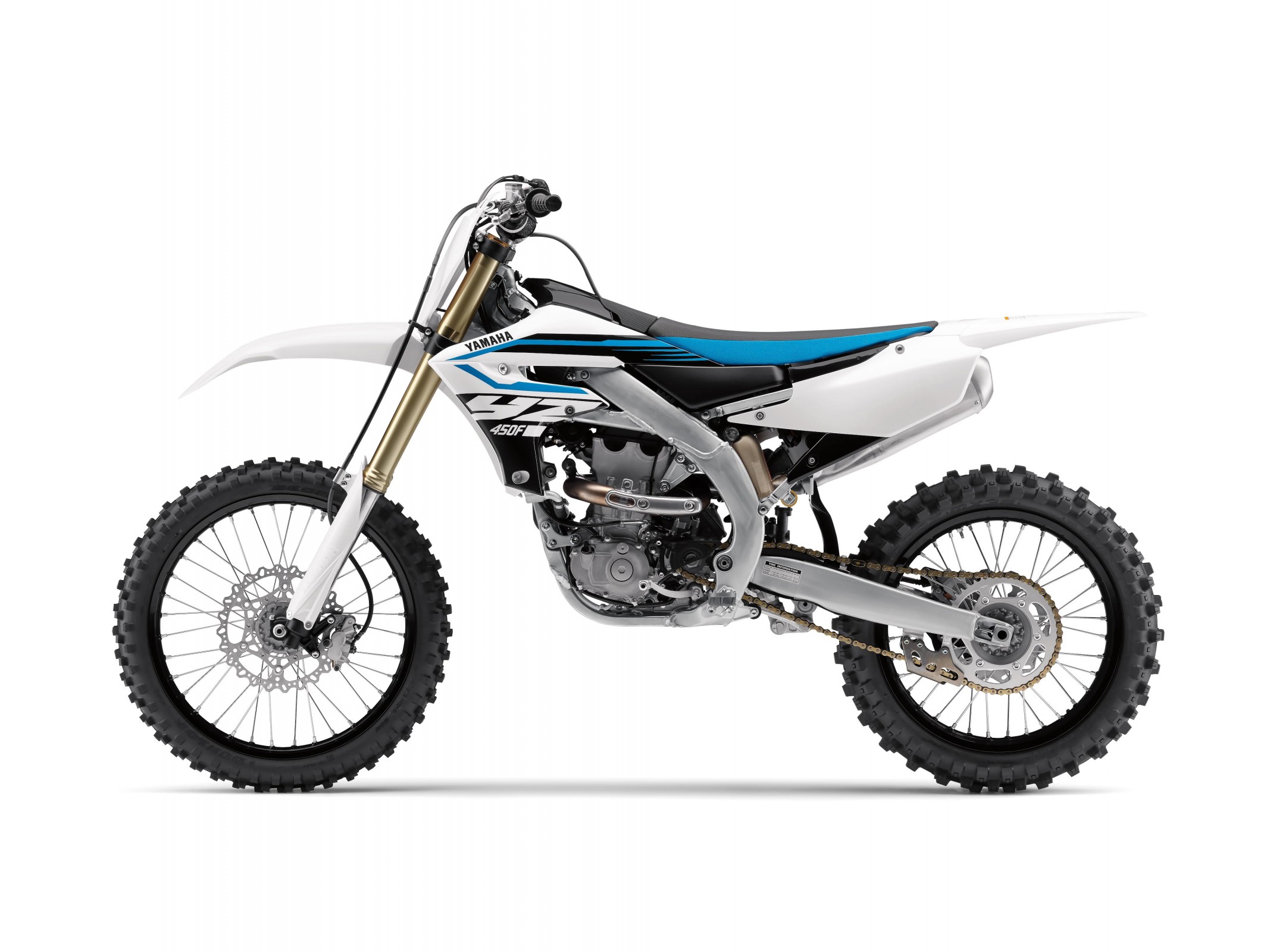

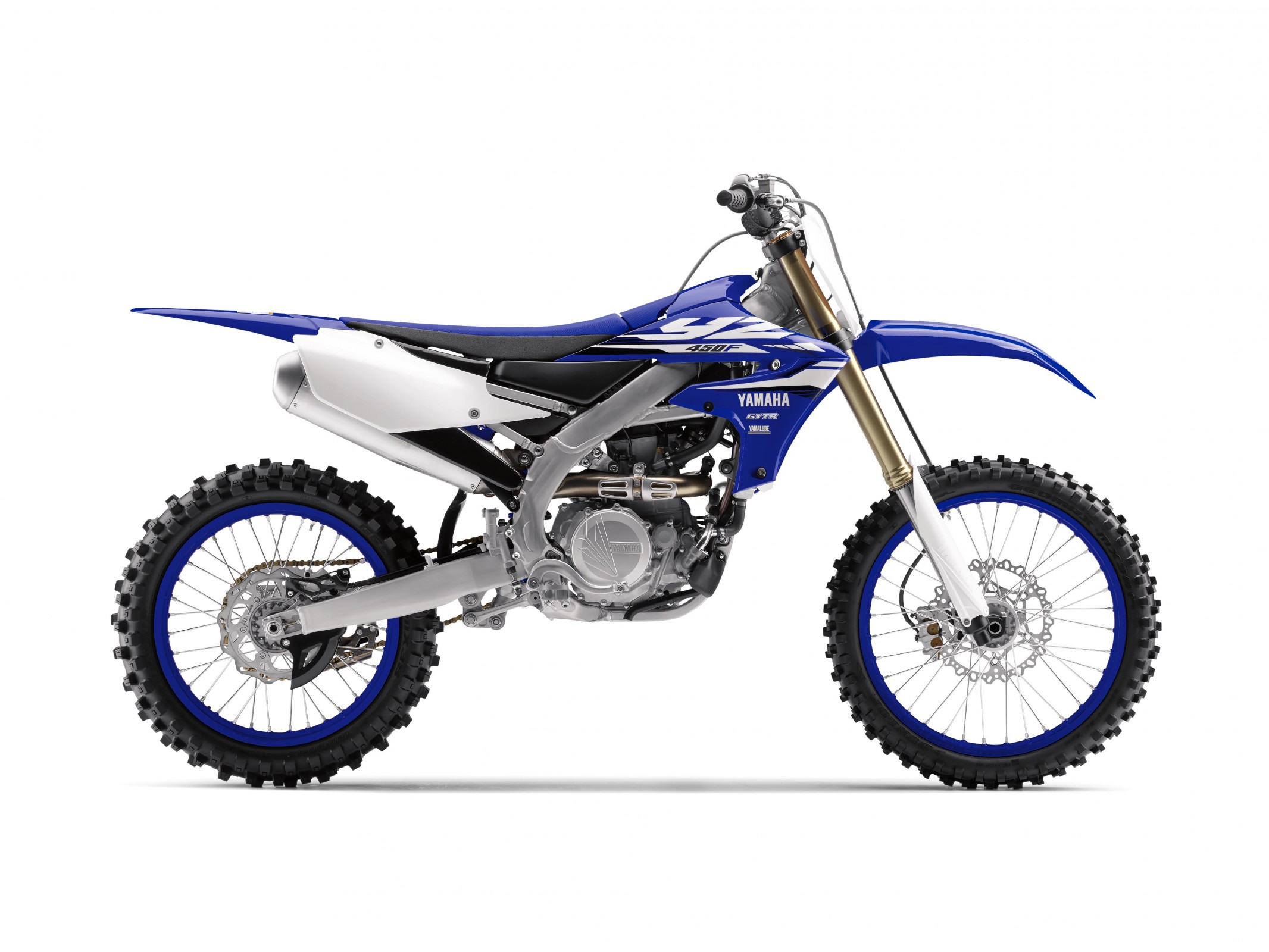

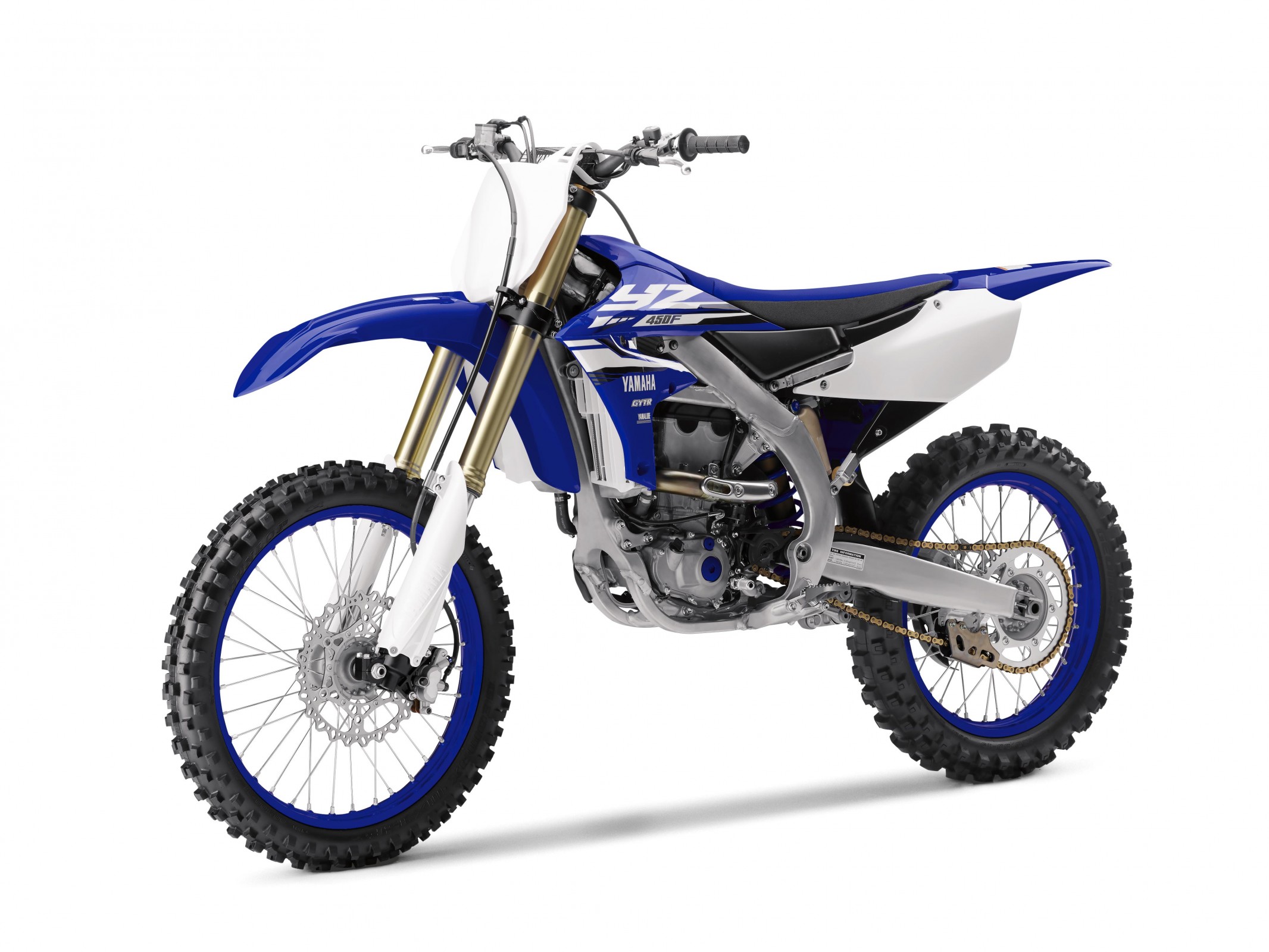

Available in either Team Yamaha Blue or White color schemes, complete with the onboard Communication Control Unit (CCU) and the Yamaha Smartphone Power Tuner App, the all-new 2018 YZ450F will arrive at Yamaha dealers starting in August 2017 with a MSRP of $9,199.
